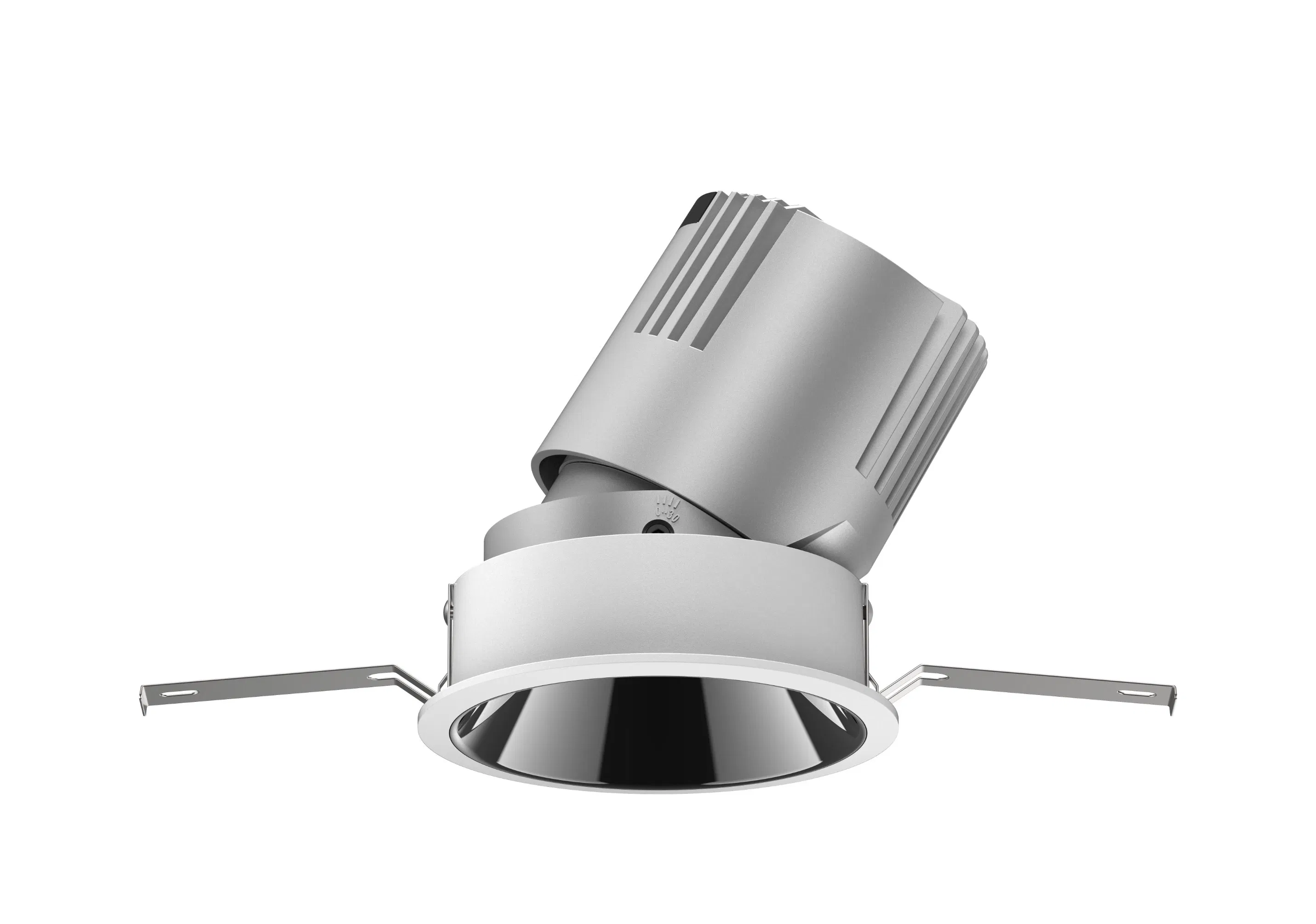

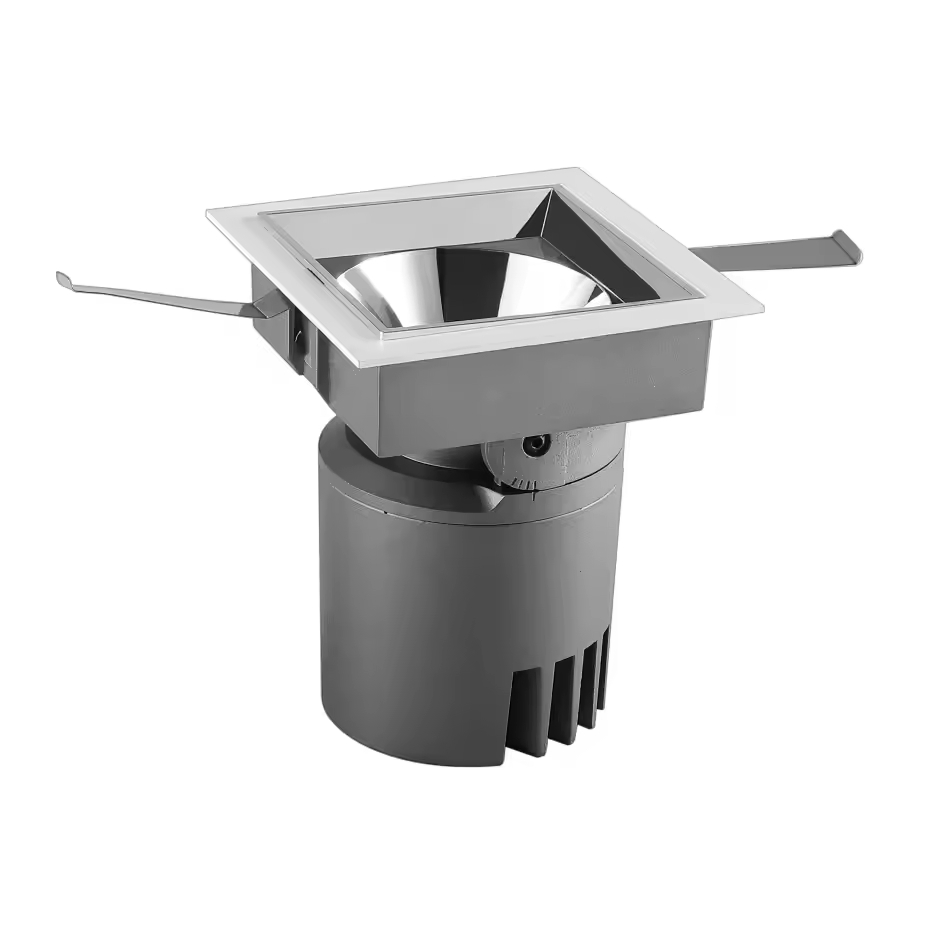

0-10V Dimmable LED Downlight for Hospitalyity with ETL CE Ies

Still deciding? Get samples of $ !
Order Sample

Product Description

💡 Basic Specifications
Model NO.
AB8008
Power
7W 12W 20W 30W 50W
Material
Aluminum
Light Source
Bridgelux COB
Installation
Recessed / Trimless
Warranty
5 Years
IP Rating
IP20
Certification
CE, ETL, RoHS
Lumen
100lm/W
Driver Brand
Lifud
Product Description

LED downlight is a modern, energy-efficient lighting fixture that is recessed into ceilings or flushed onto ceiling, providing directional illumination. It uses Light Emitting Diodes (LEDs) as its light source, offering superior brightness, longevity and energy-saving.

One engine for optional frames and optional colors.
Reflector beam: 15°/24°/36°/55°.
Narrow trim or trimless or square or double or triple or four heads available.
Easy replace, just change heat only no need change whole lamp.
Deep anti-glare design for eye comfort.
Dimming options: 0-10V/Triac/Dali/Dmx/Push Dim/ CCT Tunable.

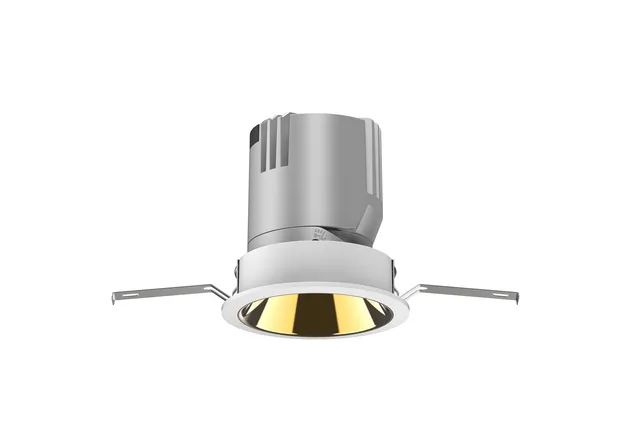

LED Downlight Normal Version

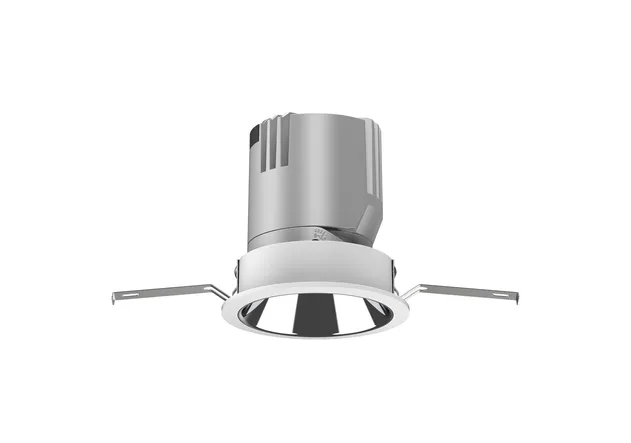

High Power Spot Series

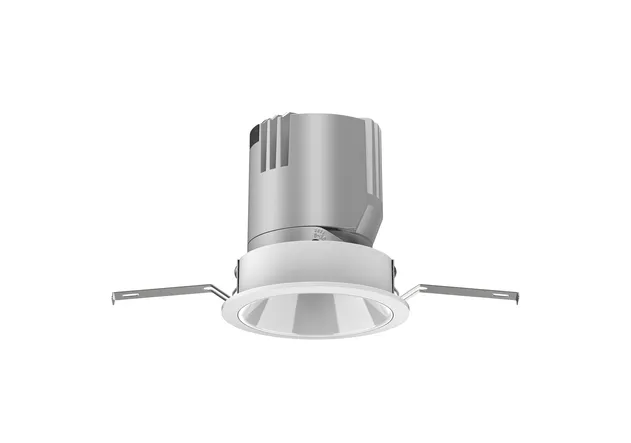

Dimmable Downlight
Ultra Thin & Trimless Series

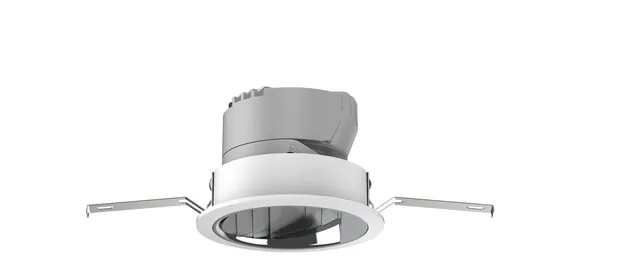

Ultra Thin Series

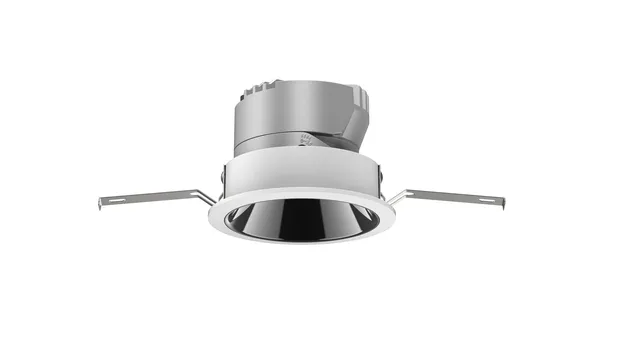

Round Trimless Recessed

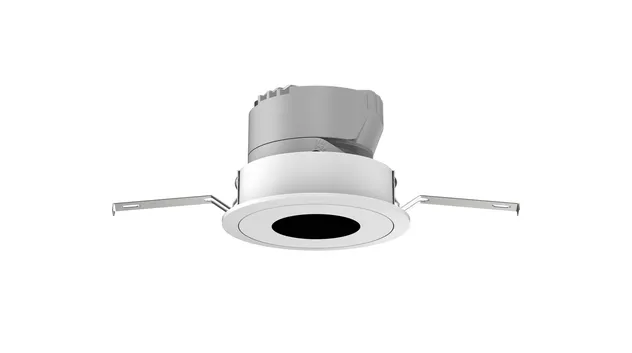

Square Trimless Recessed

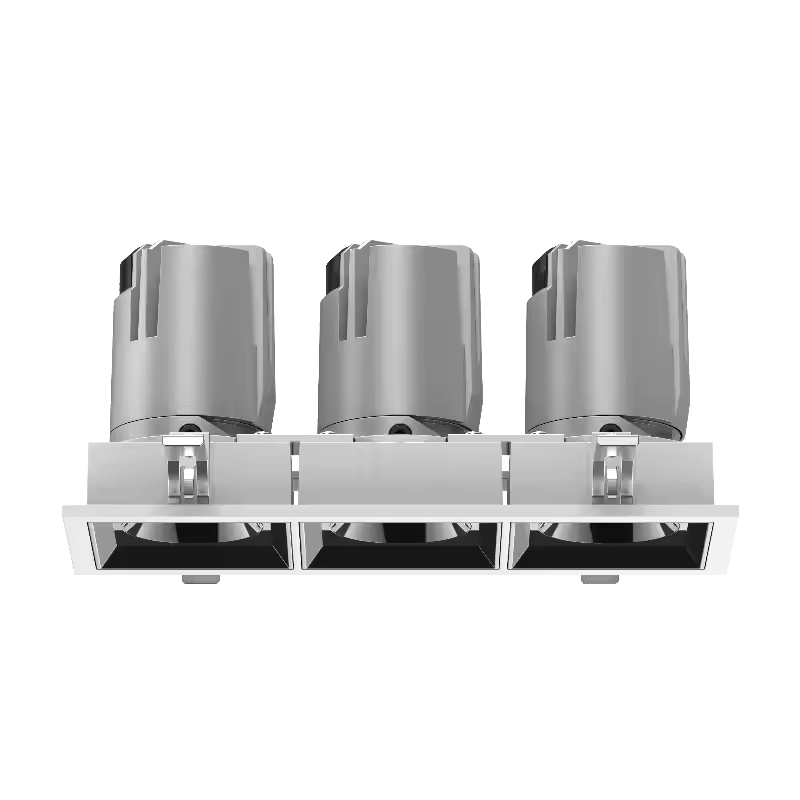

Multi-Head Configuration

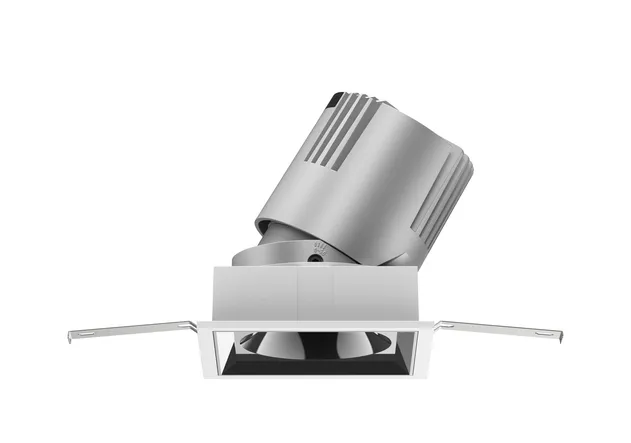

Multi-Head Recessed

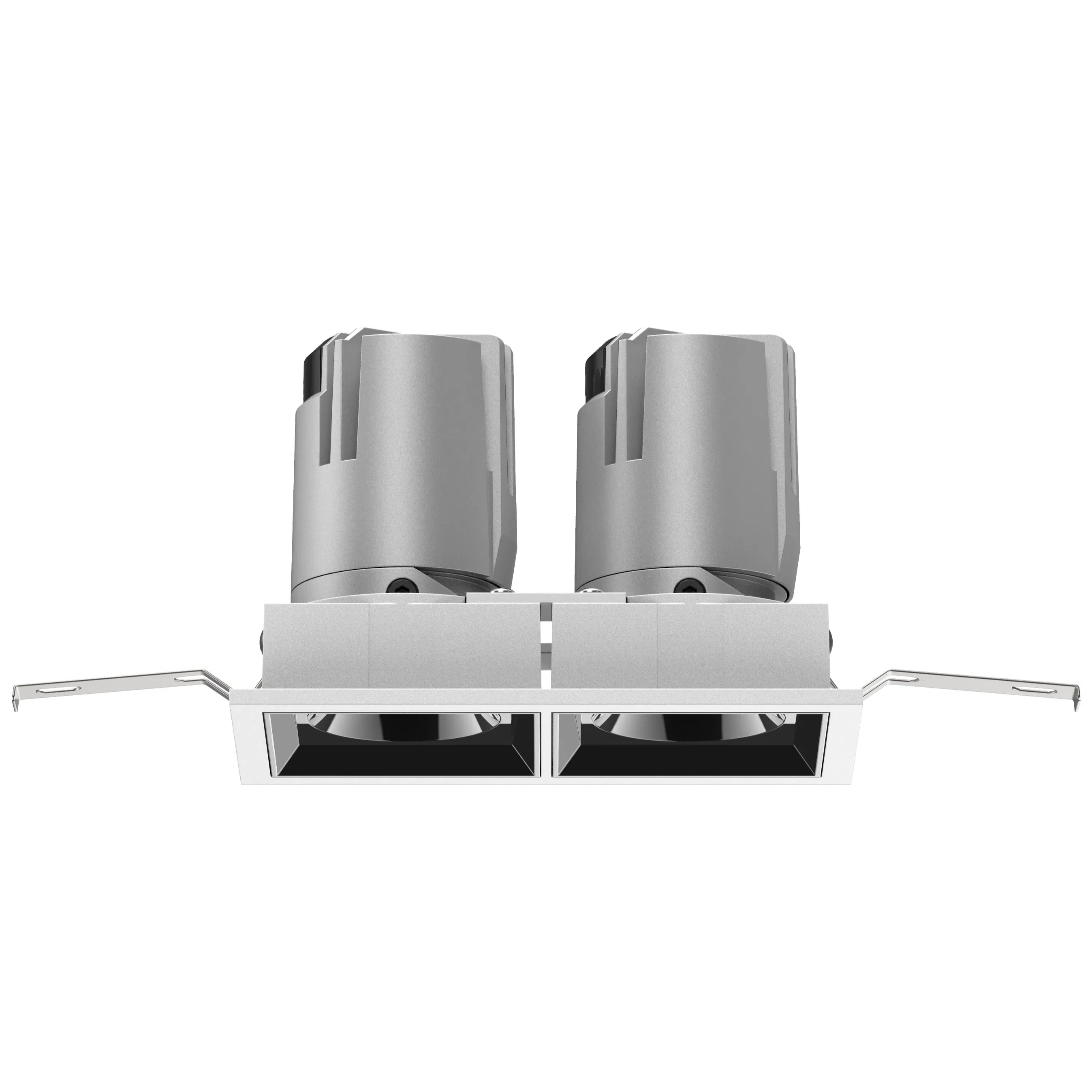

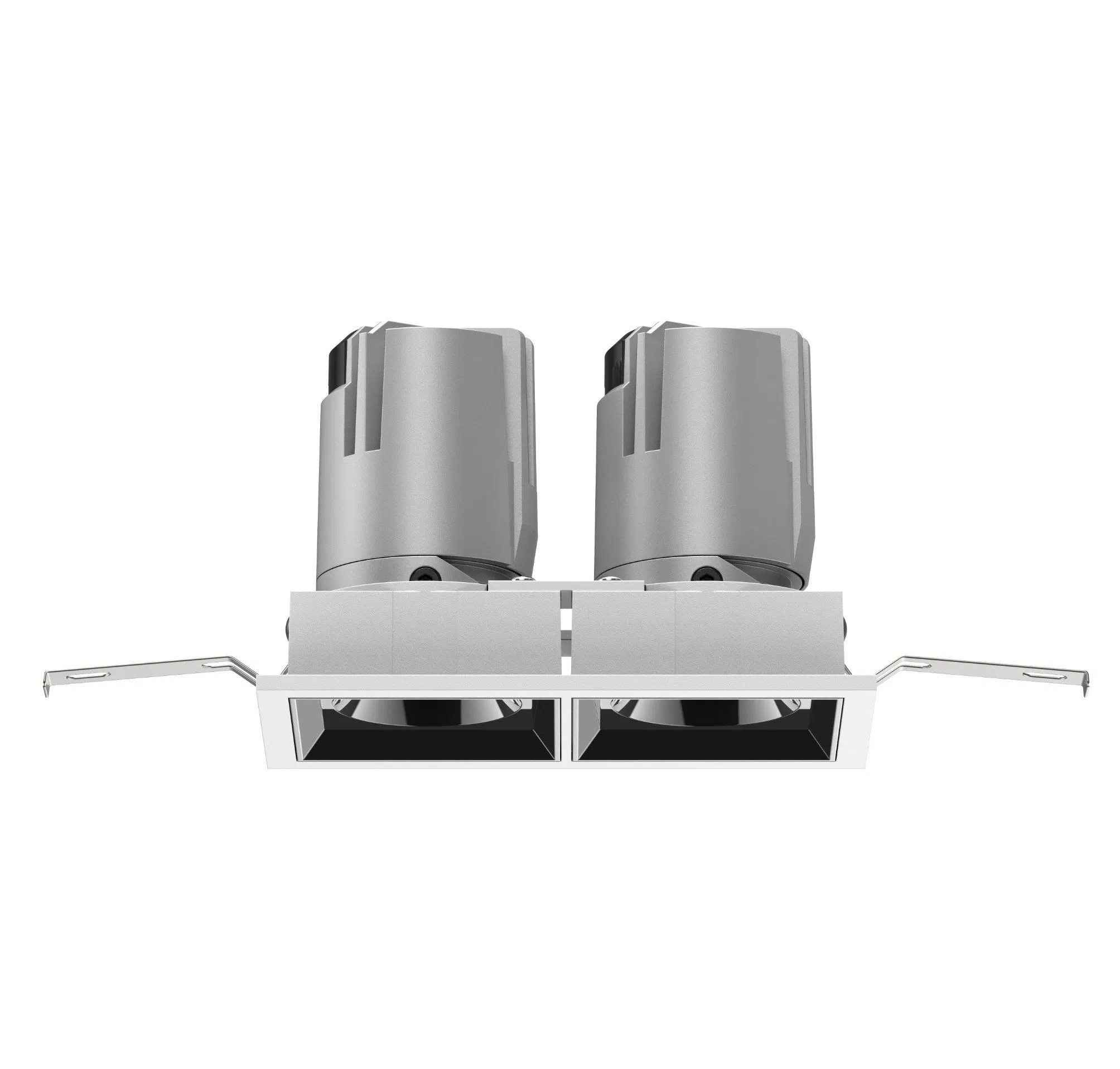

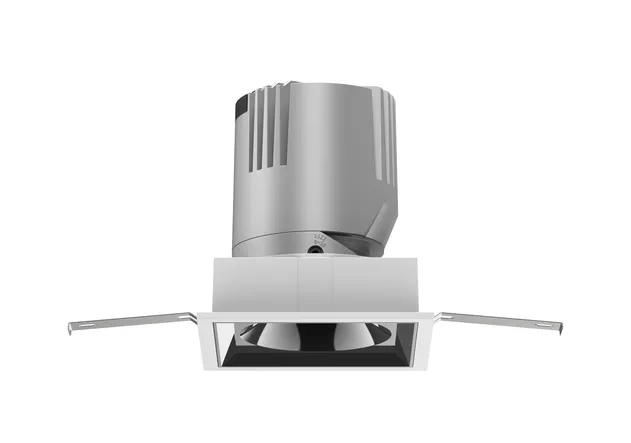

Trimless Double Head

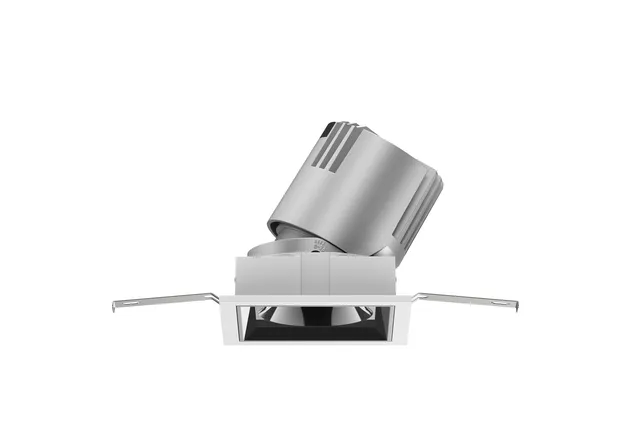

Multi-Head Series
📊 Technical Specifications
Part Number Size Cutout Beam Angle Efficiency
AB8008-7Wφ62*H75mmφ55mm15° 24° 36° 55°100Lm/w
AB8008-12Wφ85*H89mmφ75mm
AB8008-20Wφ104*H115mmφ95mm
AB8008-30Wφ140*H149mmφ120mm
AB8008-50Wφ168*H179mmφ140mm
🏢 Manufacturing Excellence

A Trusted LED Lighting Manufacturer with over 10 years of excellence. We specialize in designing and manufacturing premium commercial and residential lighting products.

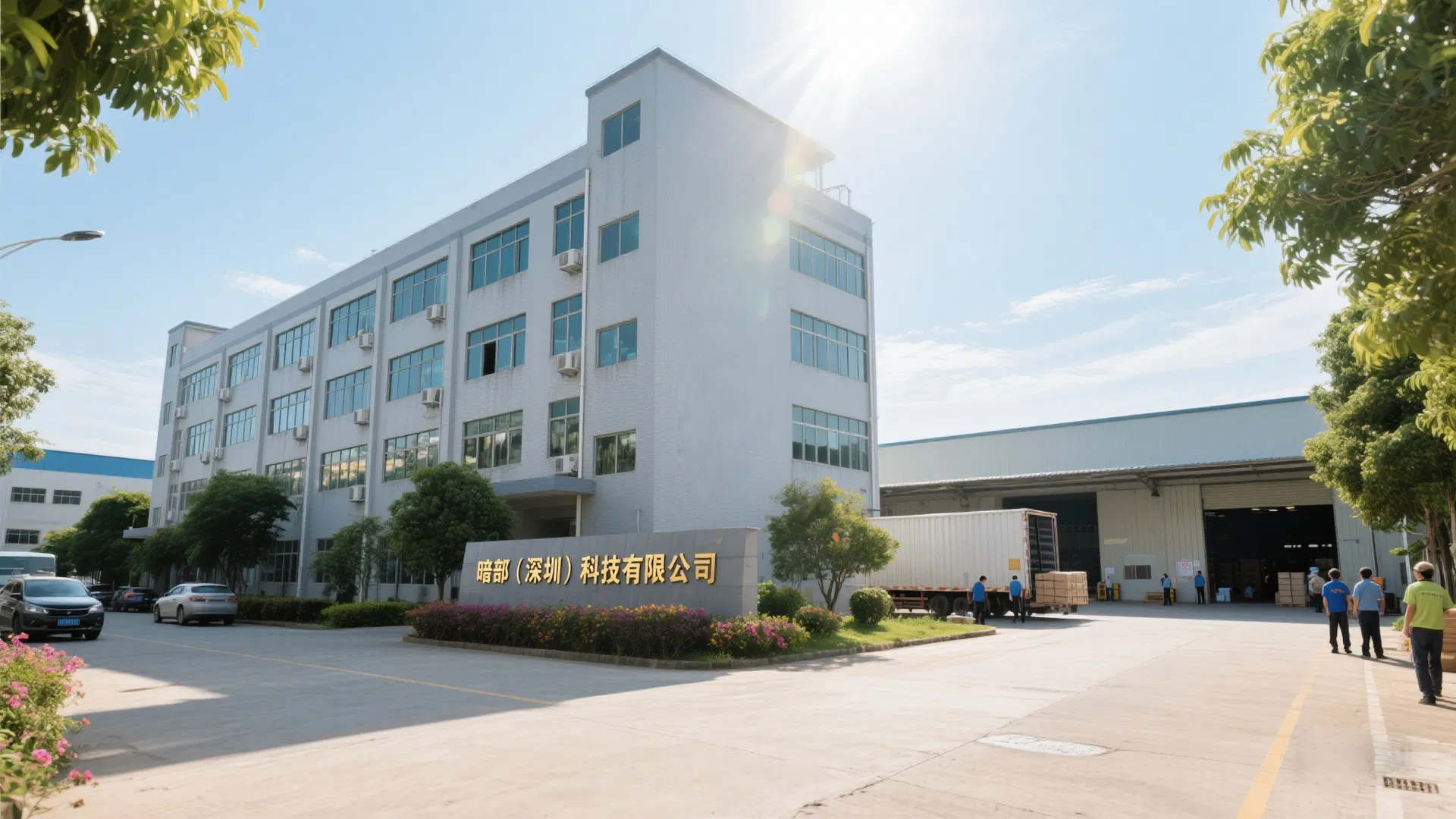

Factory Overview

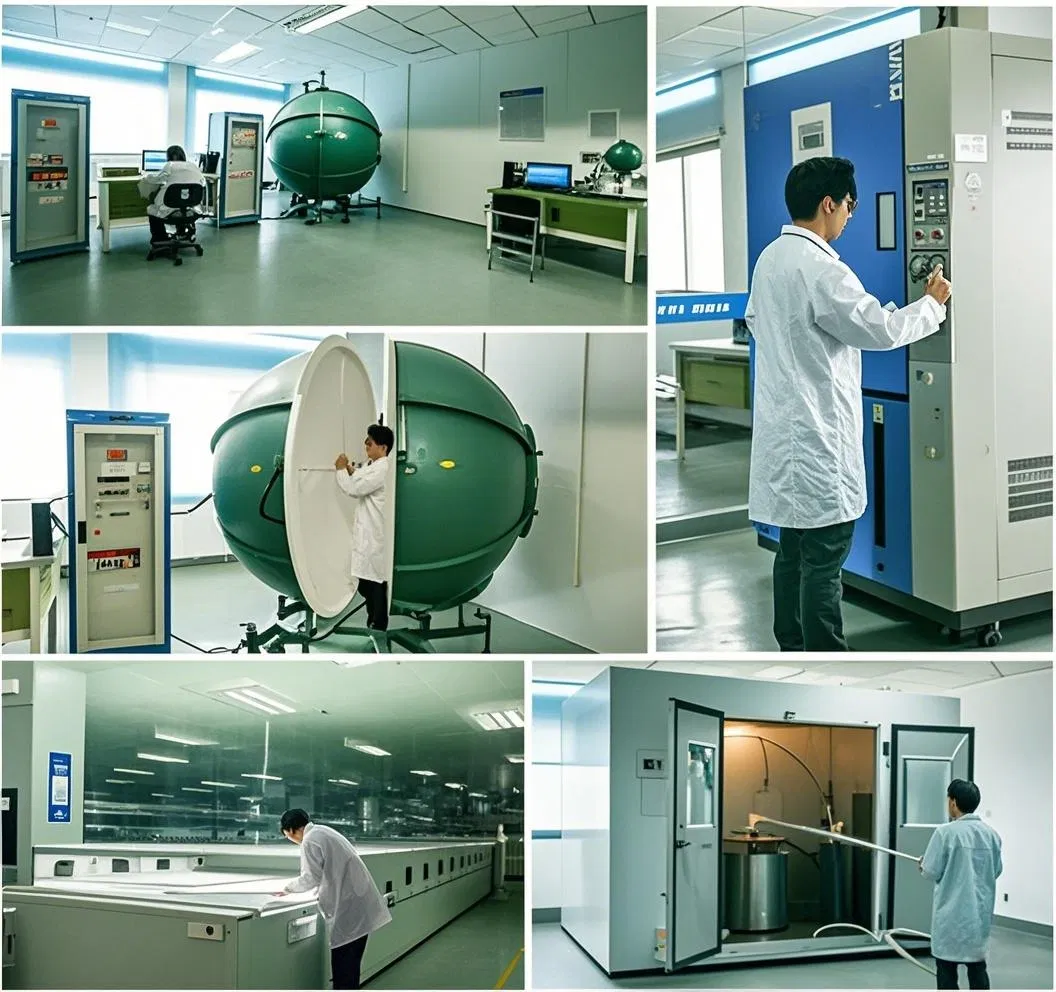

Production Line
📦 Packaging & Logistics
Express Shipping: DHL/FedEx/UPS (3-7 days) for samples.
Air Freight: Efficient for medium shipments (5-10 days).
🚢 Sea Freight: Best for bulk orders (FCL/LCL).
🚚 Land Transport: Reliable trucking for regional deliveries.
🏠 Door-to-Door: Full logistics including customs clearance.
Frequently Asked Questions
Q1: Do you have a minimum order quantity (MOQ)?
We maintain a low MOQ. You can order even a single piece for sample inspection and quality testing.
Q2: Can you produce according to custom samples or drawings?
Yes, we have a dedicated R&D department capable of providing full OEM and ODM services based on your requirements.
Q3: What is the typical lead time for orders?
Samples usually take 5-7 days. For bulk production orders, the lead time is approximately 15-20 days.
Q4: What are your terms of payment?
Typically, we prefer T/T. Our standard terms are a 30% deposit upfront, with the remaining balance paid before shipment.
Q5: Is it possible to have my logo printed on the LED products?
Yes, we provide laser branding for your logo directly on the products or can use custom label stickers.
Q6: What is the warranty period for your lighting products?
We offer a 5-year warranty. If a product fails during this period due to manufacturing defects, we will ship a new replacement.
