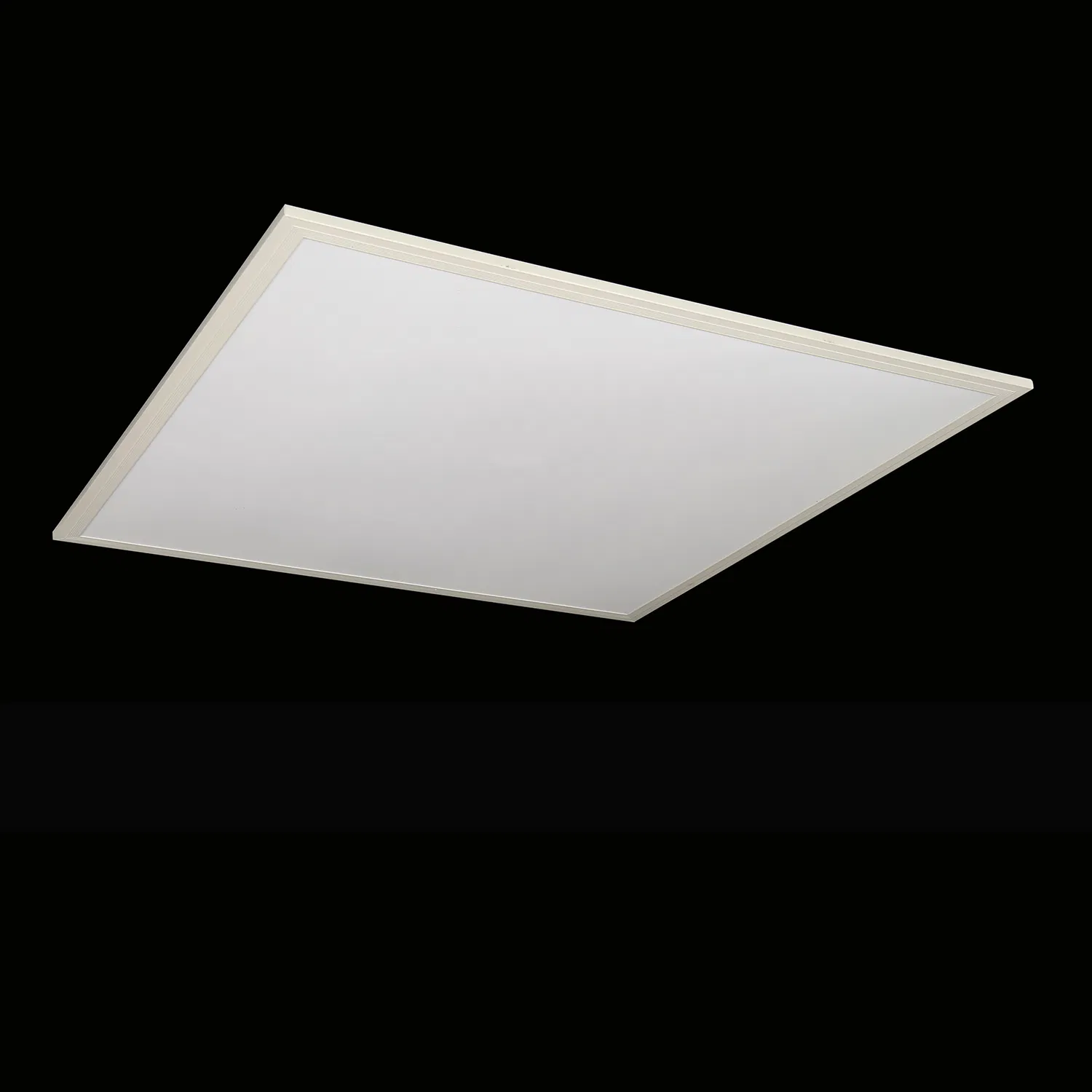

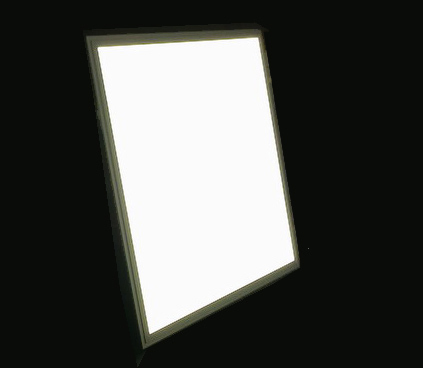

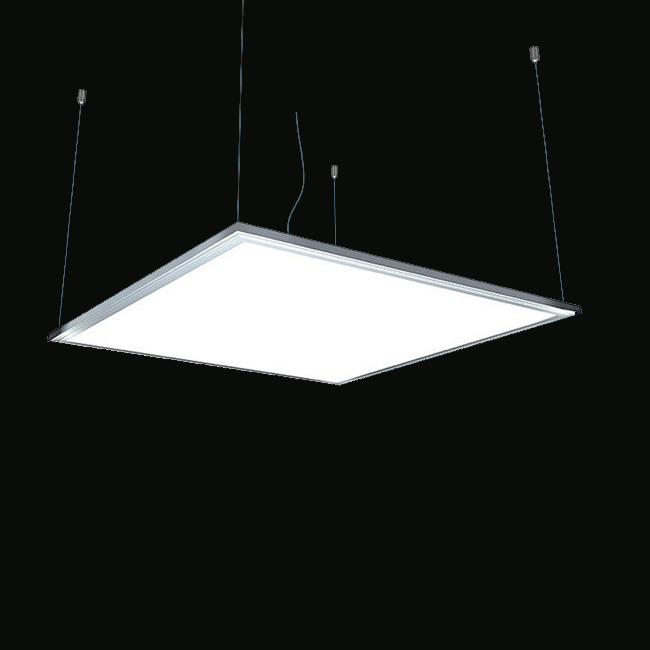

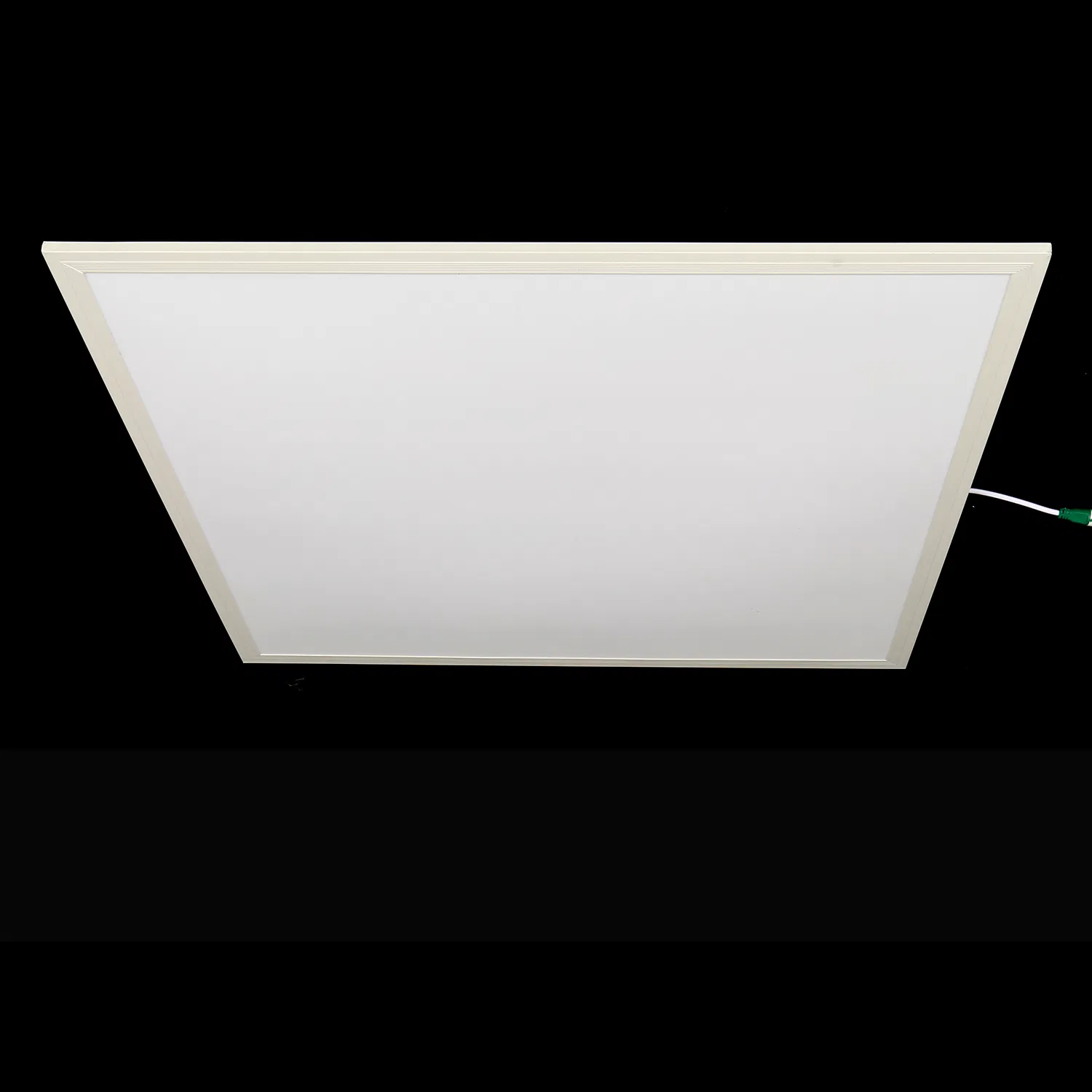

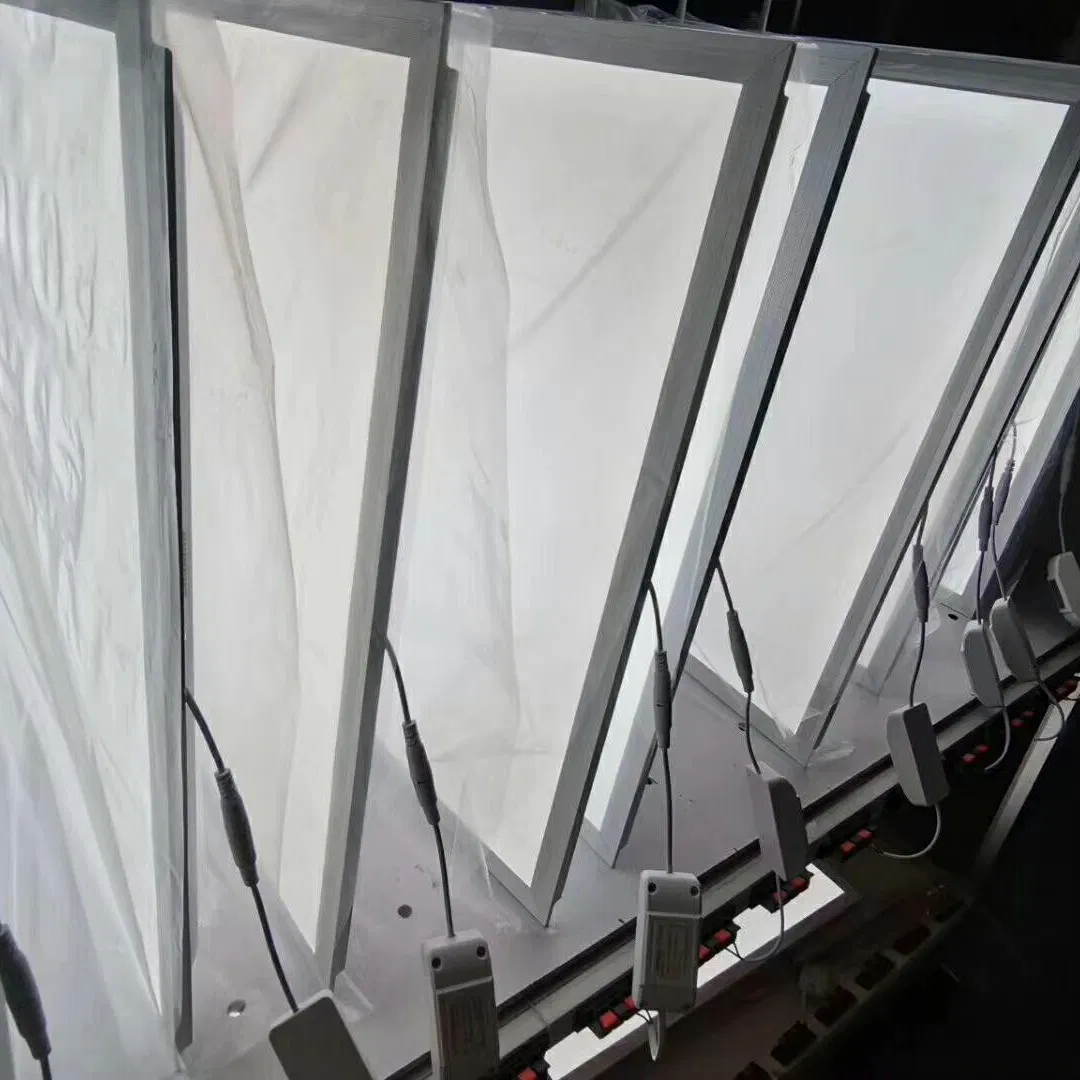

36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
1 / 5
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects
36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects

36W Edge-Lit 595*595*10 3years Warranty High Power Factor Aluminum Slim LGP LED Panel Light for Engineering Projects

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GEP6060-36W
Emitting Color
Ww/Nw/Cw
Dimmable
Non-Dimmable
Appearance
Square
Type
Recessed
Base Material
Aluminum
Certification
CE, RoHS, ISO9001, CCC
Voltage
85V-265V
Beam Angle
120°
Wattage
36W
Ra (CRI)
>80
Power Factor
>0.95
Warranty
3 Years
Lumen
100lm/W
Product Highlights
✔ Aluminum trim slim recessed LED panel light with excellent heat dissipation.
✔ Edge-lit Epistar SMD LED chips providing high CRI and superior brightness.
✔ 3mm PMMA light guide plate (LGP) ensures high lumen output without dark spots.
✔ Eco-friendly: No UV/IR radiation, no-glare, soft and tender light output.
✔ Stable performance: Instant start, no flickering, no humming.
✔ Energy saving: Up to 60% reduction in power consumption compared to fluorescent lamps.
✔ Extremely long lifespan up to 50,000 hours for engineering projects.

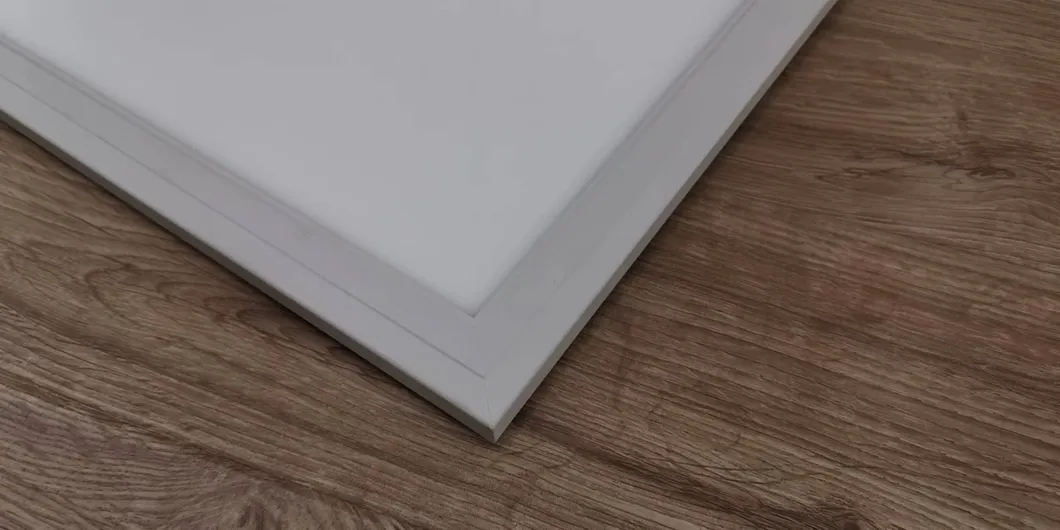

LED Panel Light View 1

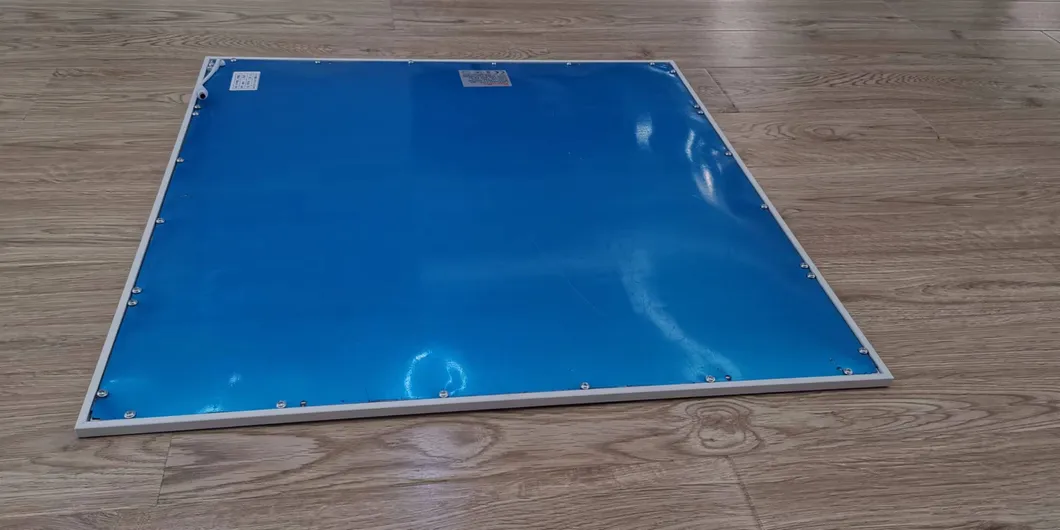

LED Panel Light View 2

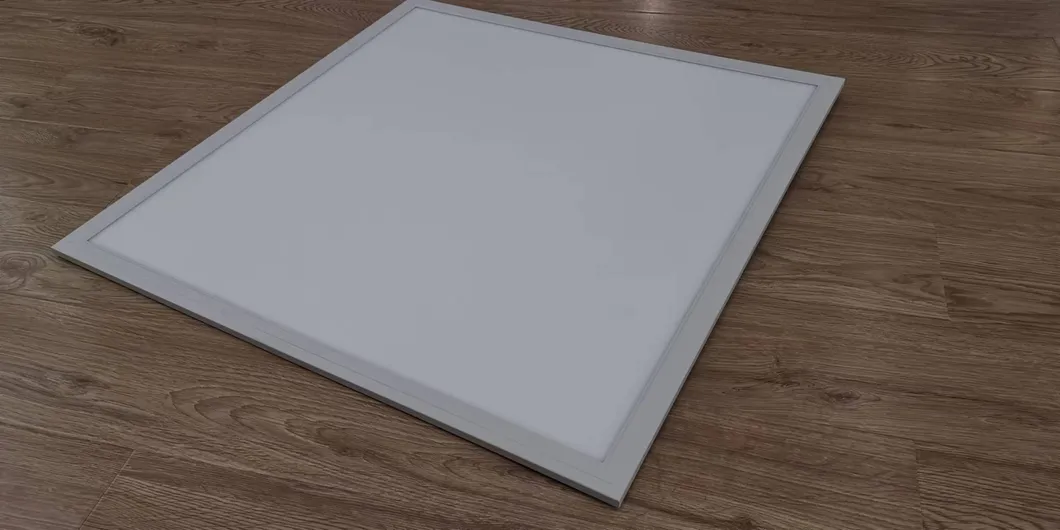

LED Panel Light View 3

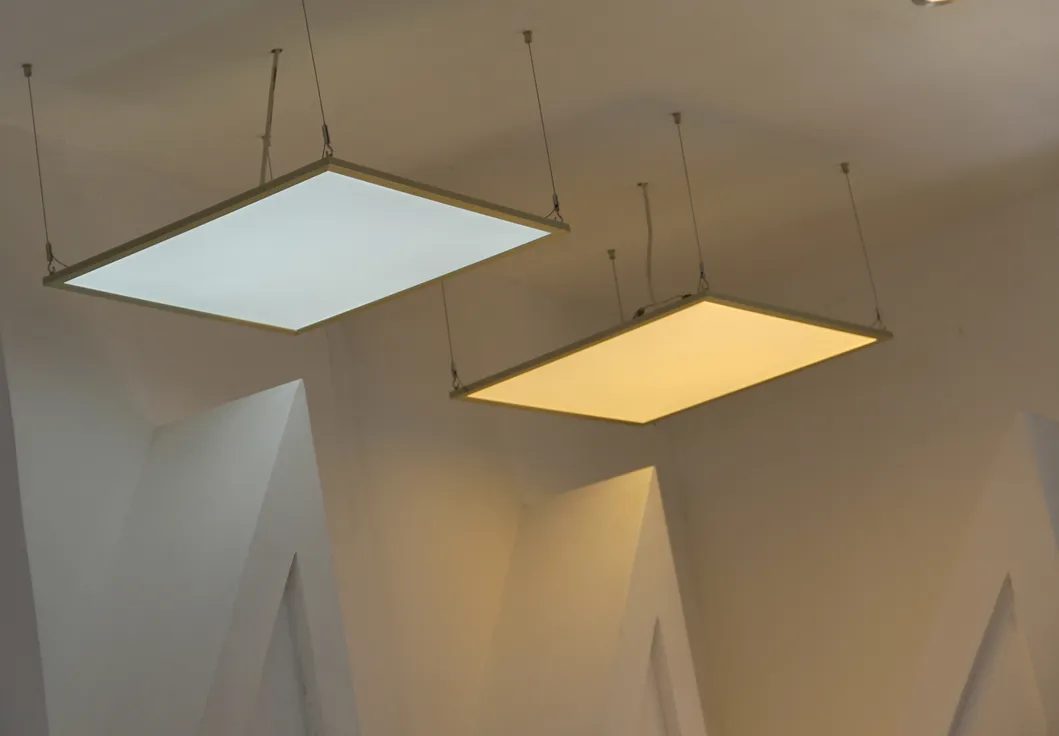

LED Panel Light Dimensions
Technical Specifications
Item No. Power (W) SMD Chip CRI Lumens (lm) Dimension (mm) Cut-out (mm) Q'ty/CTN
GEP6060-36W 36W 2835*180PCS >80 3600 595*595*10 585*585 5
GEP6060-40W 40W 2835*200PCS >80 4000 595*595*10 585*585 5
GEP6060-48W 48W 2835*240PCS >80 4800 595*595*10 585*585 5
GEP30120-36W 36W 2835*180PCS >80 3600 295*1195*10 285*1185 5
GEP60120-72W 72W 2835*360PCS >80 7200 595*1195*10 585*1185 3

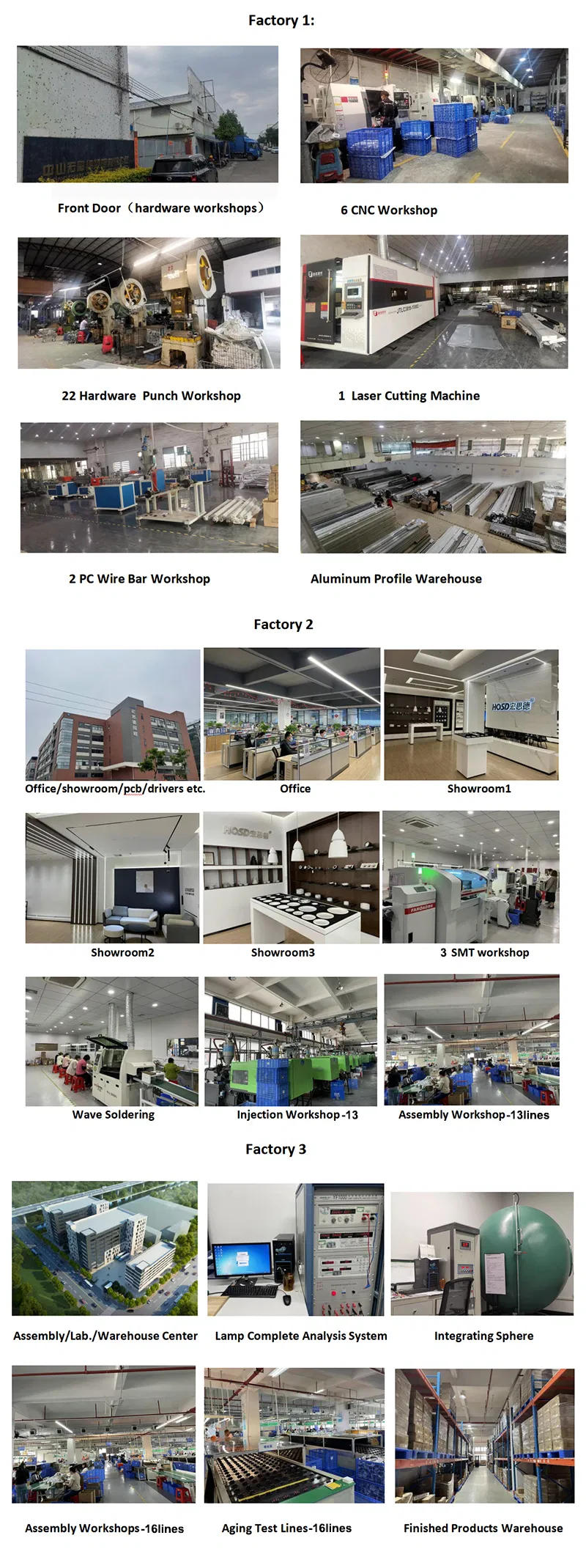

Full Product Details
Frequently Asked Questions
Q1: Are you an original manufacturer?
Yes, we are a professional lighting manufacturer with multiple production facilities specialized in high-quality LED solutions.
Q2: Can you develop custom OEM products?
Yes, our structural engineers can provide CAD and 3D drawings to develop new products based on specific client requirements using our in-house workshops.
Q3: What is the standard lead time for orders?
Samples typically take 3-5 days, while bulk batch orders are usually fulfilled within 2-4 weeks.
Q4: How do you ensure product quality?
Our facilities are ISO9001 certified. 100% of finished products undergo rigorous aging tests before packaging. We offer a guarantee of 2-5 years on all products.
Q5: What technical testing reports do you provide?
We have an internal laboratory capable of providing IES reports, Photometric reports, and LM80 reports among others.
Q6: How are sample orders handled?
We welcome sample orders to test and verify quality. Mixed models within a single sample order are acceptable.
