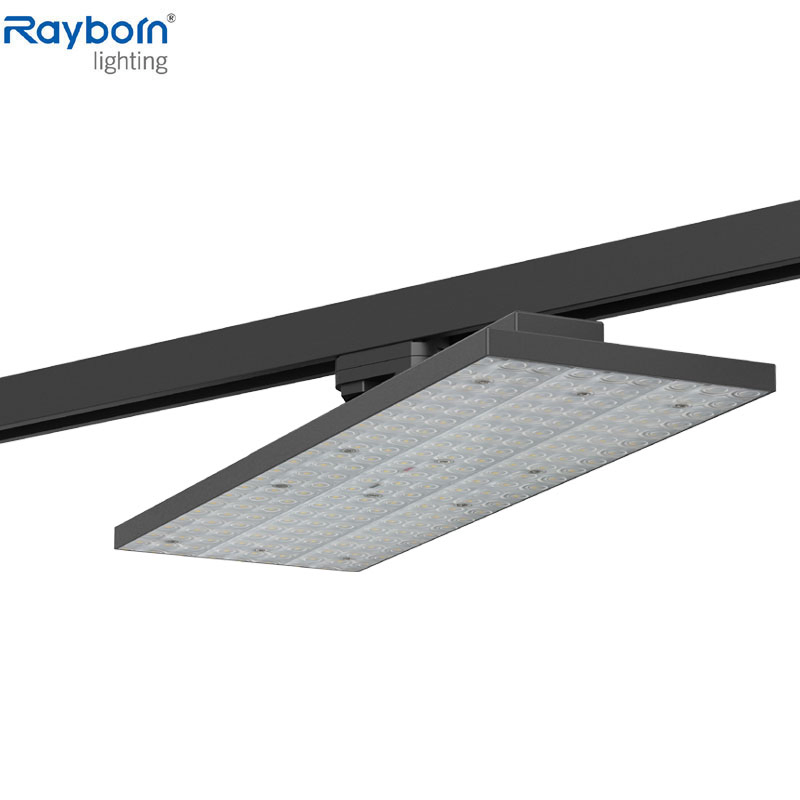

2022 New 40W 50W 70W Dimmable Linear Track Panel Light Indoor Magnetic Commercial LED Track Lighting for Supermarket/Shopping Mall/Restaurant/Showroom/Stores

1 / 5

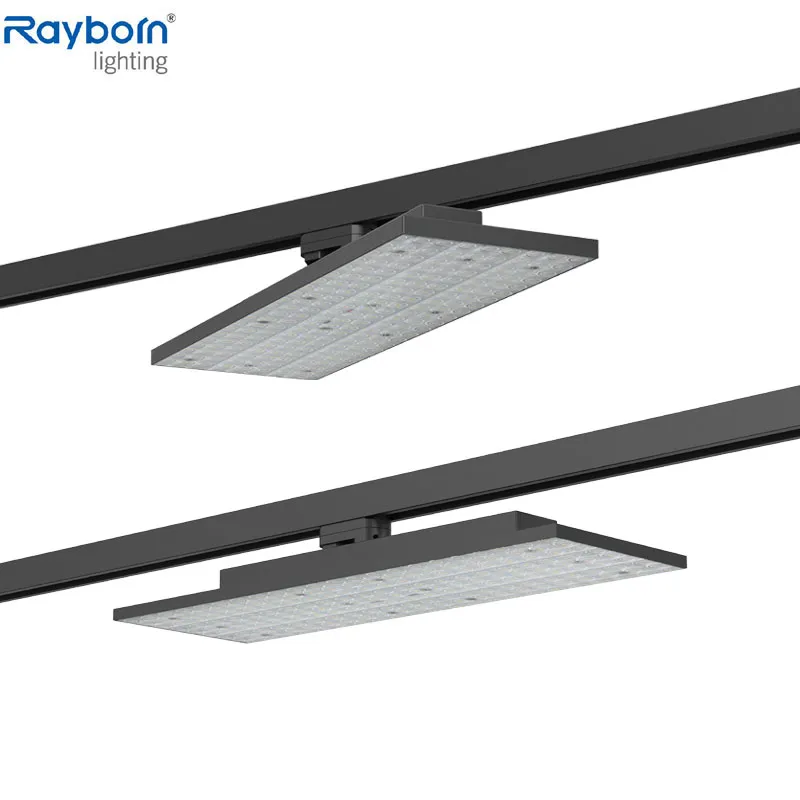

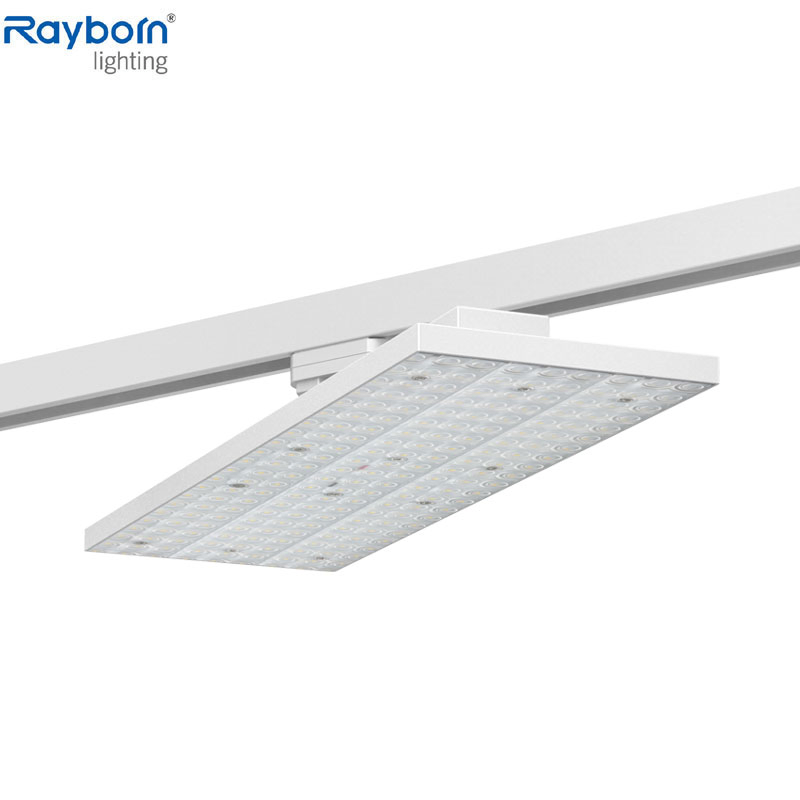

2022 New 40W 50W 70W Dimmable Linear Track Panel Light Indoor Magnetic Commercial LED Track Lighting for Supermarket/Shopping Mall/Restaurant/Showroom/Stores

Customization:	Available
Light Source:	LED
Housing Material:	Acrylic, Aluminium, Plastic

Send Inquiry

Product Description

Basic Specifications

Model NO.

RB-TK-01-70W

Emitting Color

White

Dimmable

With Dimmable

Appearance

Square

Type

Recessed

Base Material

Metal

Certification

CE, RoHS, CCC

Voltage

100-240V

Beam Angle

120°

Color Rendering Index

Ra>80 or Ra>90

Track Adaptor

Powergear 3-Circuit

Material

Aluminum+PMMA

Power Factor (PF)

>0.95

Viewing Angle

60/90degree

Inrush Current

19A

UGR

UGR<22

Protection Class

Safety Class I

Production Capacity

30,000 PCS/Month

Product Overview

40W 50W 60W 70W Dimmable Linear Track Panel Light Indoor Magnetic Commercial LED Track Light For Supermarket/Shopping mall/Restaurant/Showroom/Stores

Electrical Parameters & General Info

Input Voltage

AC220-240V

Input Frequency

50 or 60 HZ

Inrush Time

280 s

THD

<20%

Switching Cycles

100.000 times

LED Type

SMD2835

Flicker free

Yes

Warranty

5 Years

Model Selection & Dimensions

Product code	Power	Dimensions	Beam Angle	Efficacy	CCT
RB-TK01-40W	40W	L578 * W188mm	60/90°	160LM/W	2800K-6500K
RB-TK01-50W	50W
RB-TK01-60W	60W
RB-TK01-70W	70W
RB-TK01-68WD	Adjustable 44-68W

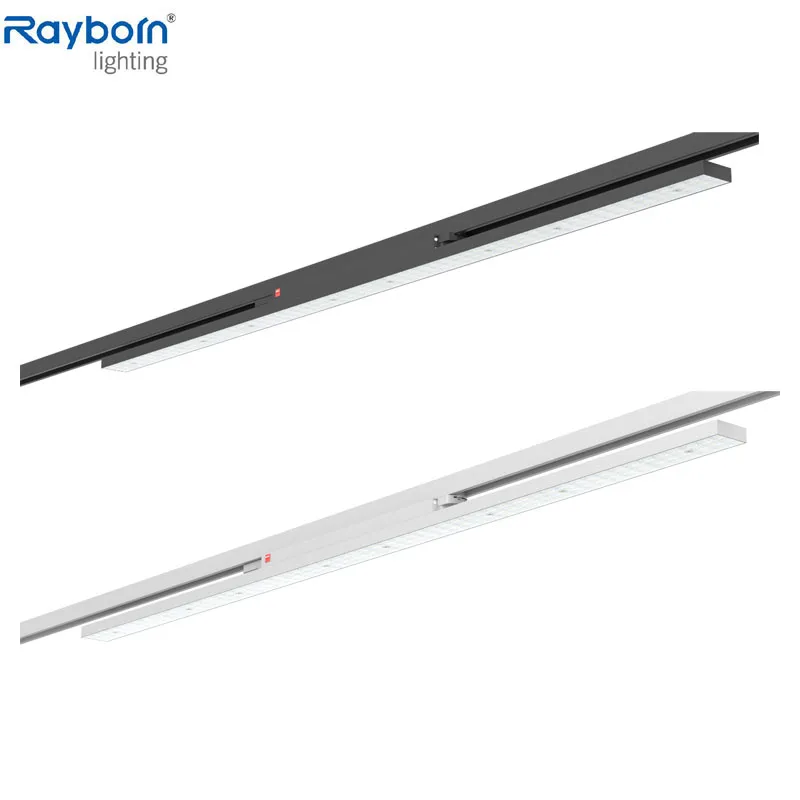

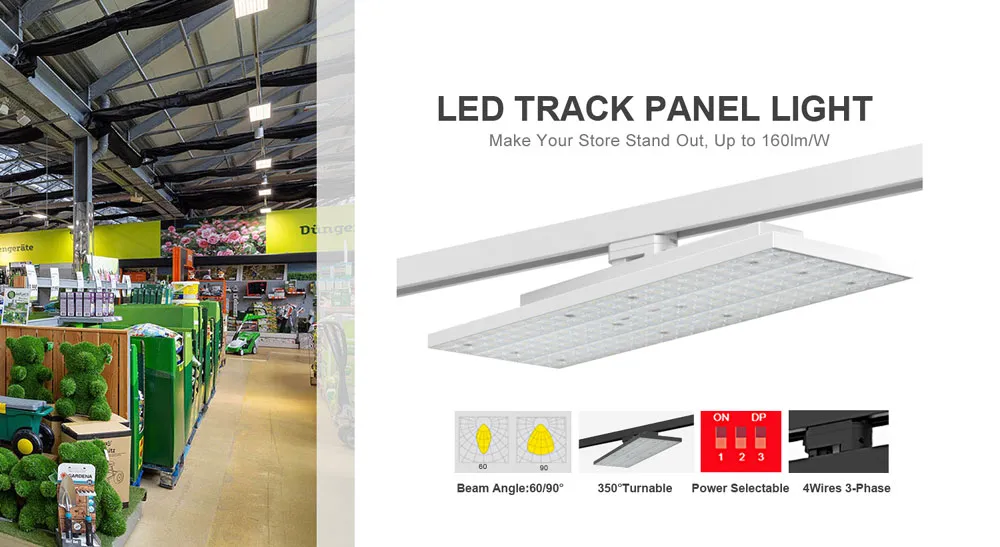

Main Features

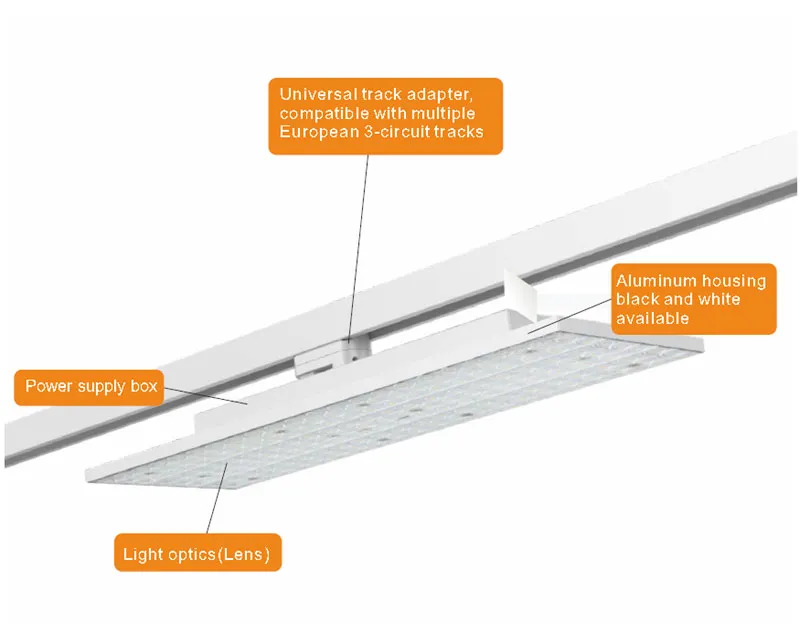

Universal track adapter compatible with European 3-circuit tracks
Power switchable and Innovative optics
High efficiency up to 160LM/W

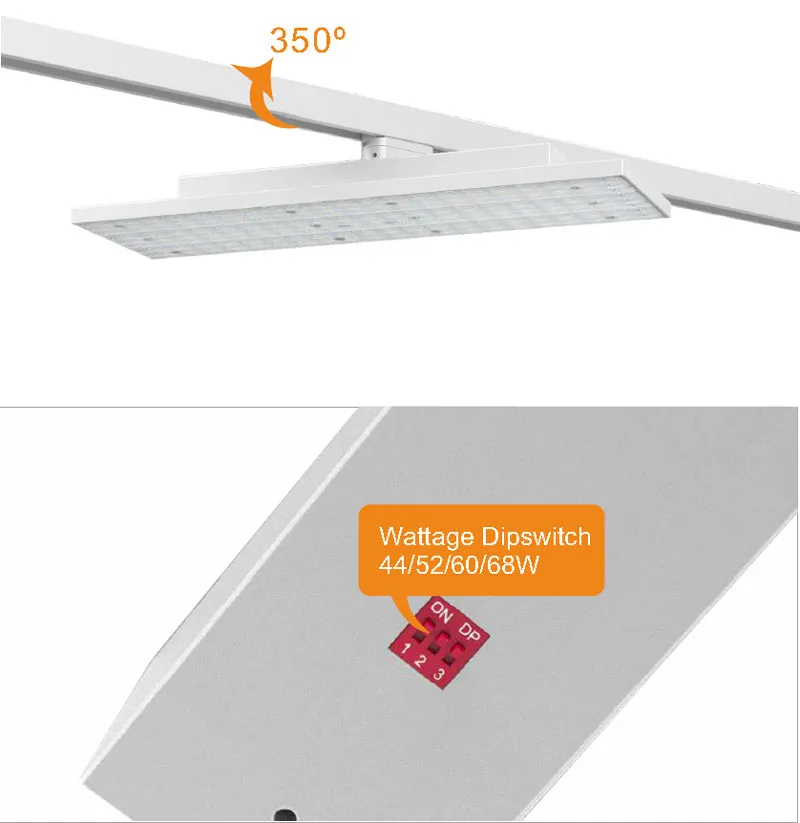

350° Flexible adjustment

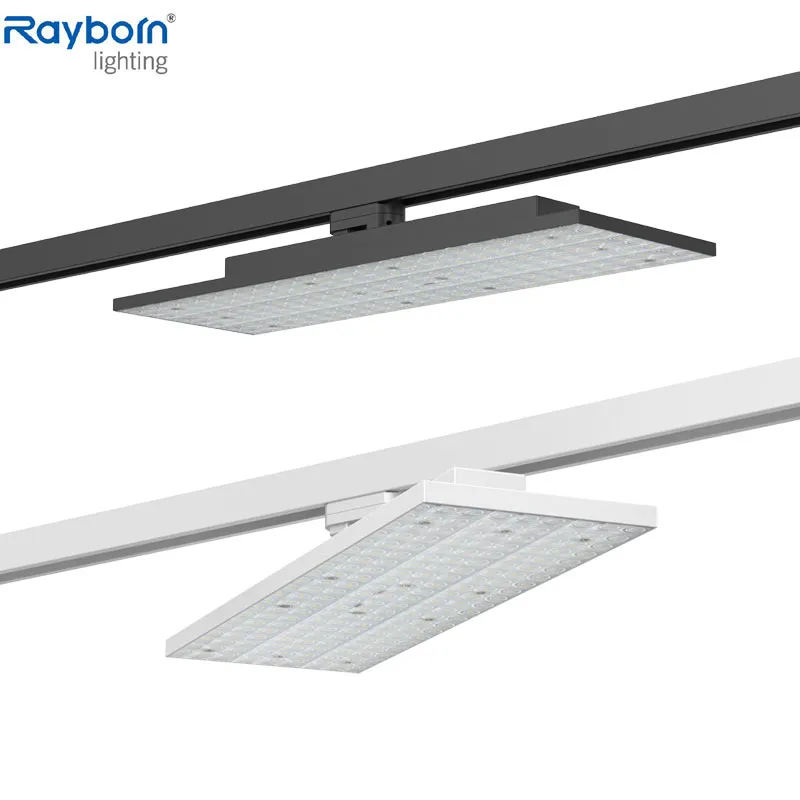

Flicker-free driver with Black and white housing options
CE & RoHS & IP44 approved, Quality Guaranteed
Long lifespan: 70,000 hours with 5 years warranty

Installation Guide

Check all parts and accessories before starting.
Must cut off the power supply before installation.
Ensure the light is fixed tightly to the surface.
Connect the power line and switch on.
Keep vertical downward when the downlight is working.

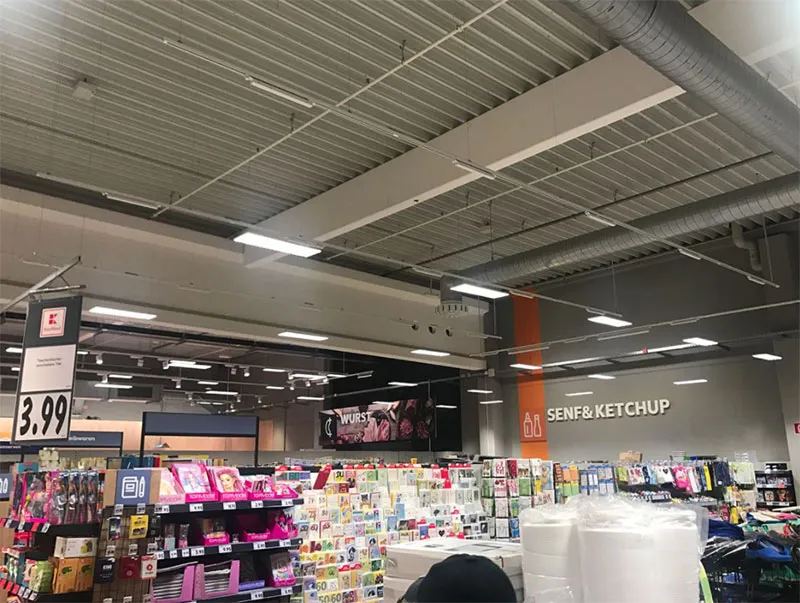

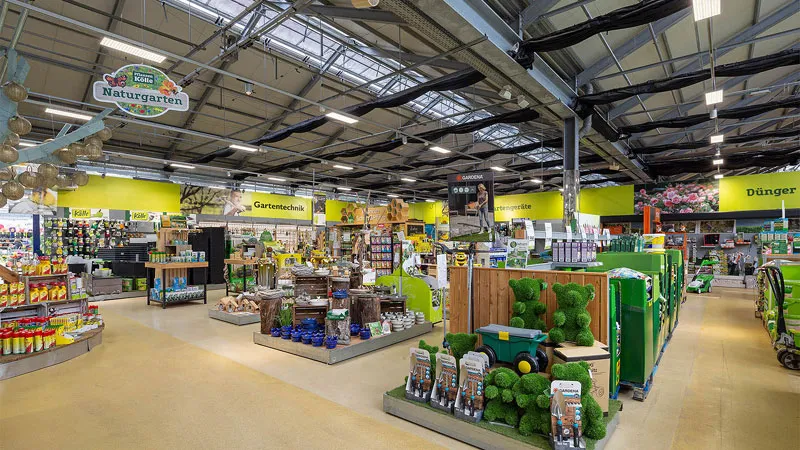

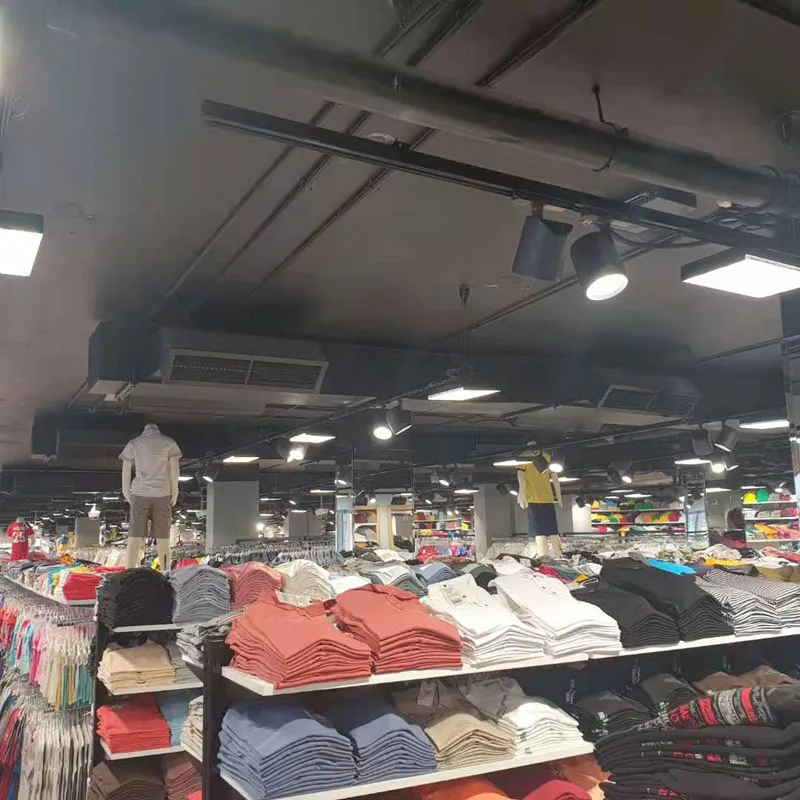

Product Applications

Schools, Universities, and Hospitals
Conference and Meeting Rooms, Showrooms
Commercial Establishments and Supermarkets
Shopping Malls, Restaurants, and Retail Stores
Residential and Institution buildings

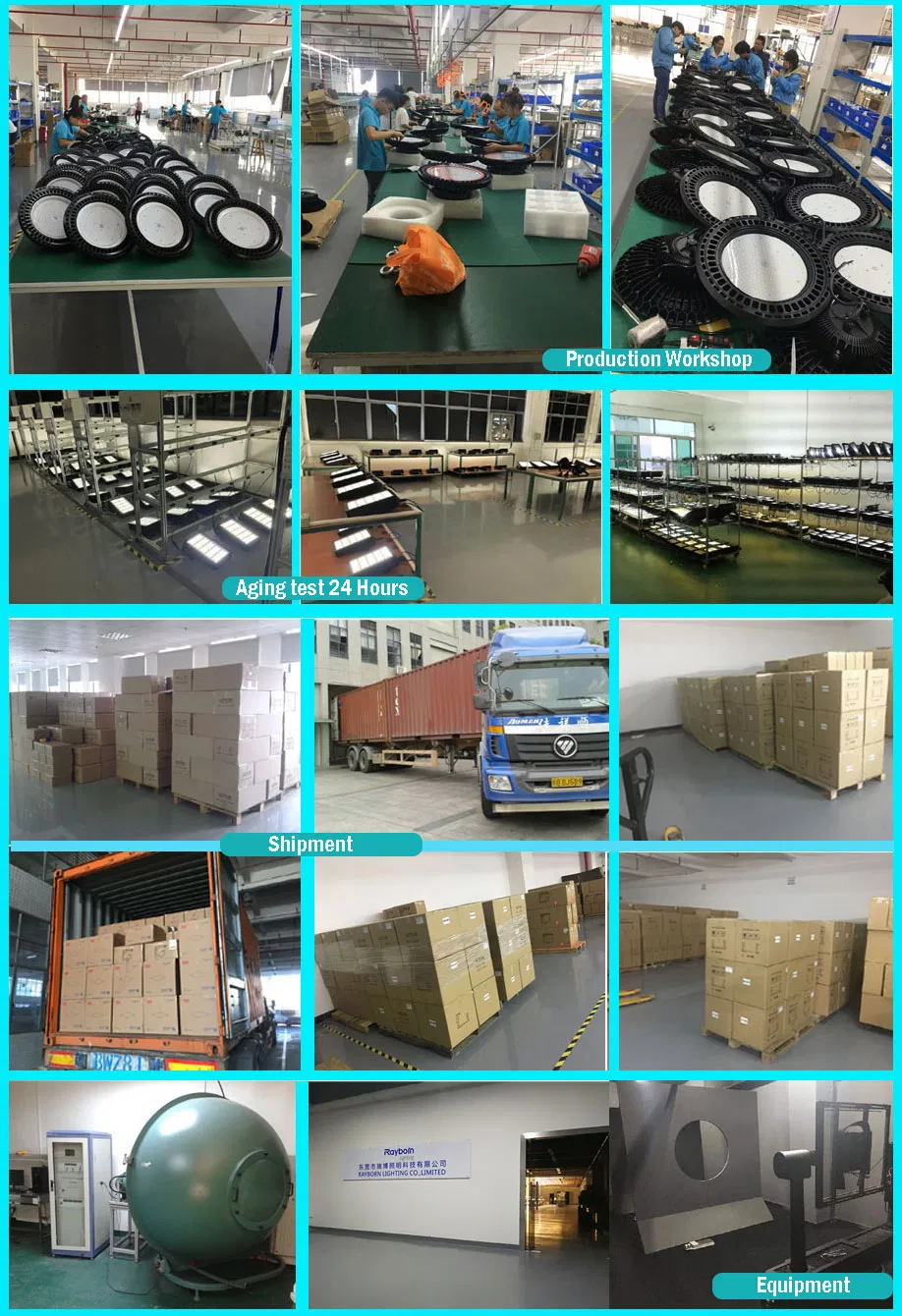

Manufacturing & Services

Specializing in industrial and commercial LED research, development, and production. We provide environmental protection, energy-saving, and long-life lighting solutions. Facilities are ISO9001:2000 certified and products carry CE, FCC, ETL, ROSH, and TUV authentications.

OEM & ODM service welcome
Professional lighting solutions by technical experts
Free light study and detailed specifications
Flexible shipping: Sea, Air, or Express (DHL, FedEx, UPS, TNT)
Fast lead times: 5-7 days for samples, 10-15 days for bulk orders

Frequently Asked Questions

Is the track adapter compatible with my existing system?

Yes, the light uses a universal track adapter that is compatible with most European 3-circuit track systems (4 wires).

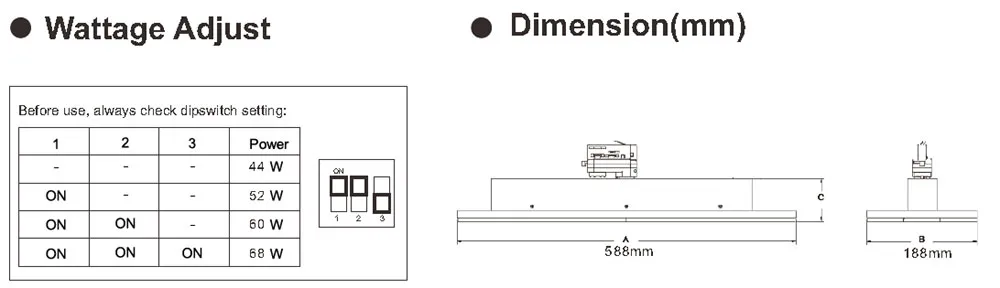

Can the wattage be adjusted after installation?

Our 68W model features adjustable power settings, allowing you to switch between 44W, 52W, 60W, and 68W as needed.

What is the energy efficiency of these panel lights?

These lights are highly efficient, offering a luminous efficacy of up to 160LM/W, significantly reducing energy costs.

Do you offer a warranty on these products?

We provide a comprehensive 5-year warranty on our track panel lights, backed by a 70,000-hour rated lifespan.

Are the lights flicker-free?

Yes, all our commercial track lights are designed to be flicker-free to ensure eye comfort and better performance in photo/video environments.

What is the standard lead time for a bulk order?

Standard bulk orders typically take 10-15 working days, while sample orders are processed within 5-7 working days.
