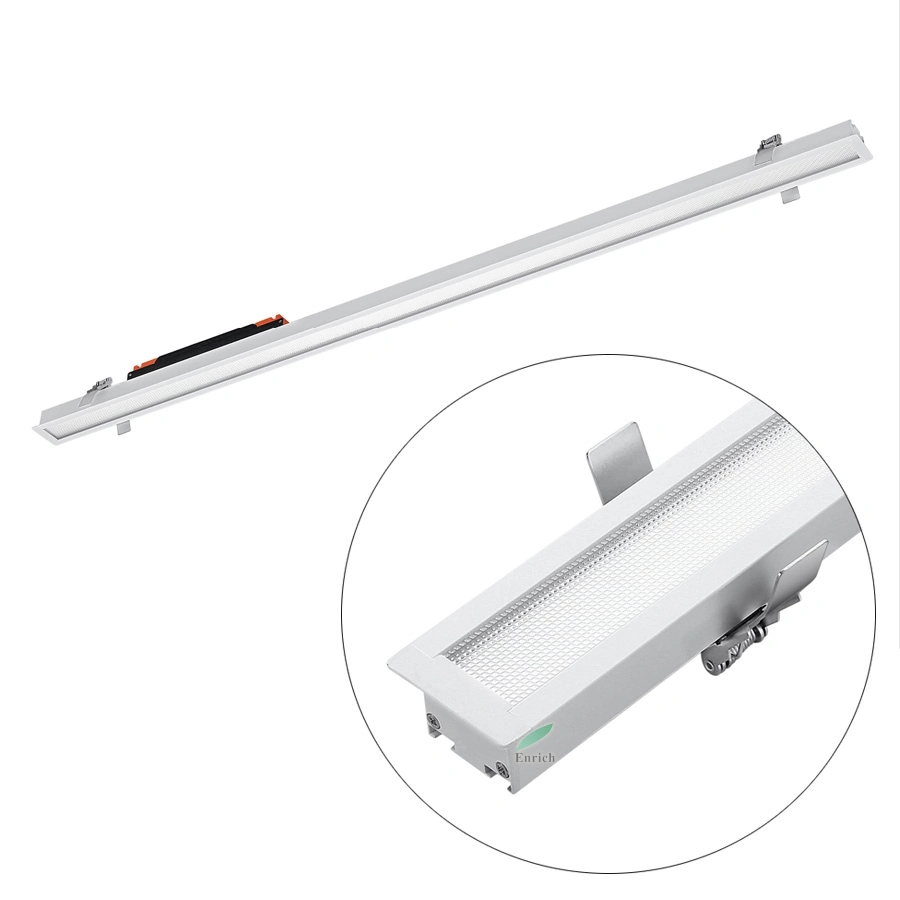

5030 Series Ceiling Recessed with Anti-Glare Reflector Linear Light LED Linear Pendant Light for Office/Supermarket

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
EN-5030A-LE40W12
IP Rating
IP33
Wattage
40W
Luminous Efficiency
4000lm
CRI
>80
Style
European
Certification
CE, EMC, RoHS, SAA, UL
Color Temperature
3000K/4000K/6000K
Material
Aluminum + PC
Voltage
AC85-265V
Beaming Angle
120°
LED Chips
Epistar SMD 2835 - 504PCS
Package Size
125.00cm * 25.00cm * 25.00cm
Gross Weight
1.500kg

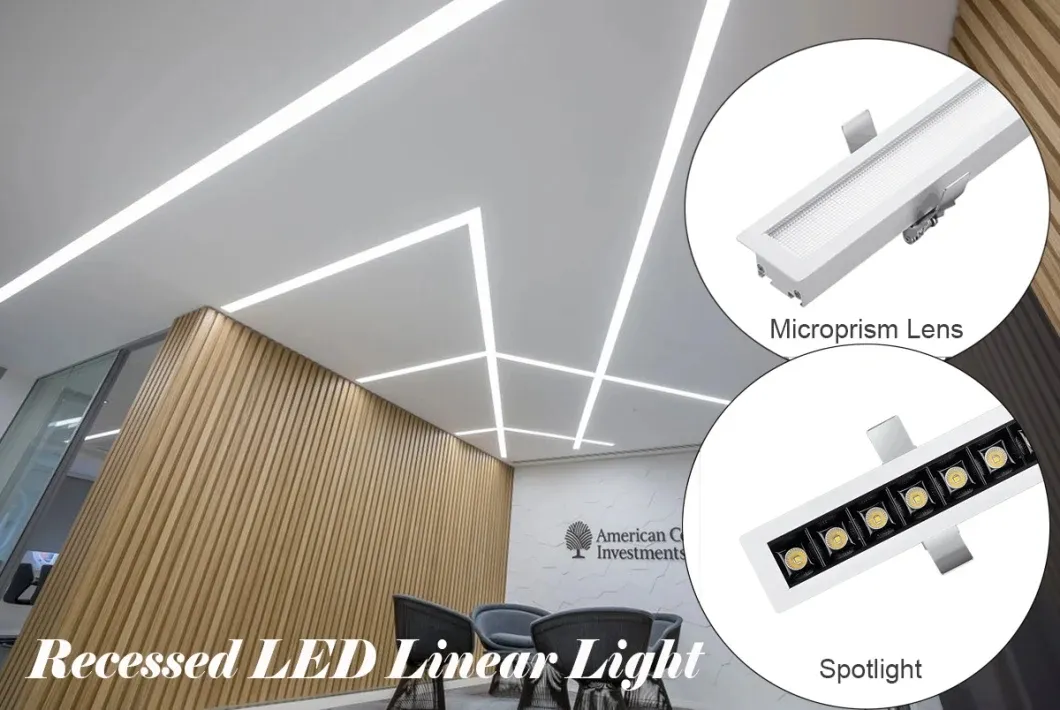

LED Linear Light

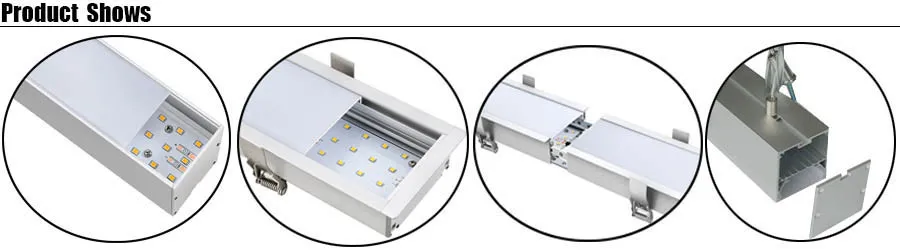

Linear Pendant Light Series
Technical Specifications
Model Number Dimension Power Input Voltage CCT Shell Color
EN-5030A-LE20W06 L615*W50*H30mm 20W AC85-265V 3000K/4000K/6000K Black/White/Silver
EN-5030A-LE40W12 L1205*W50*H30mm 40W AC85-265V
EN-5030A-LE60W18 L1800*W50*H30mm 60W AC85-265V
EN-5030A-LE80W24 L2395*W50*H30mm 80W AC85-265V
Product Features
  • Connect with seamless, form with line shape.
  • Versatile installation: Hanging, surface mounted, or recessed.

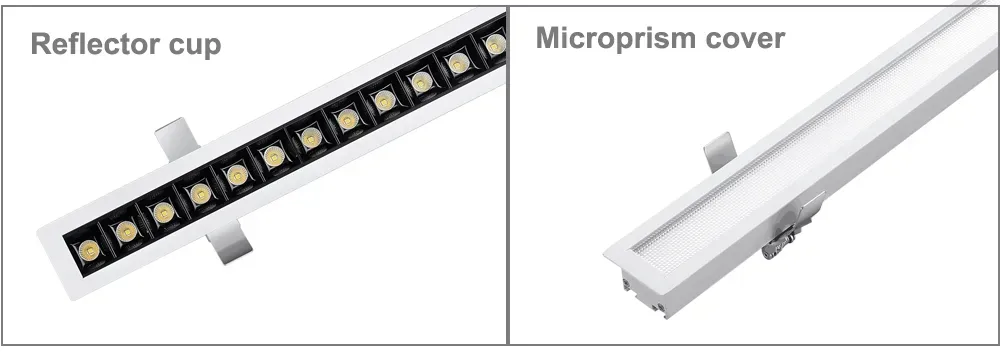

  • Microprism Cover and Reflector Cap design to prevent light leakage.
  • Aluminum PCB with no-facula design, easy rotation installation.
  • High light transmission rate up to 86%, luminous reach 110lm/w.
  • IC driver with no flicker and no glaring (CRI ≥ 80, PF ≥ 0.9).
  • CE & RoHS certified quality.
  • Eye protection design with anti-dazzling microprism and reflector shades.
Detailed View & Installation
Simple Straight Line Installation

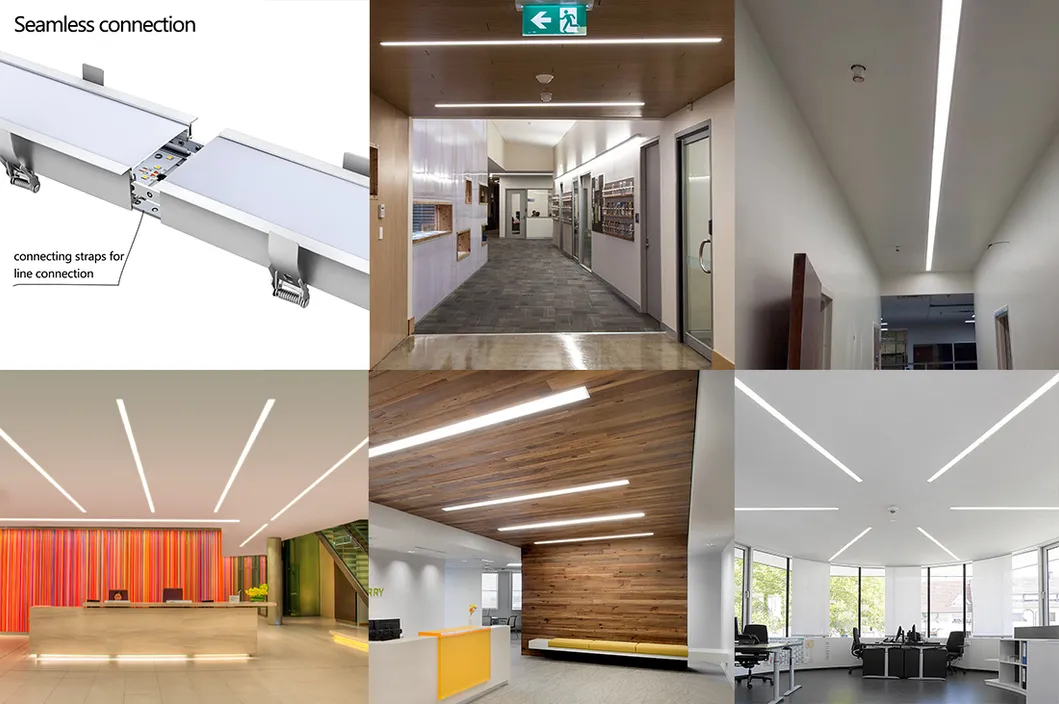

No gap connection

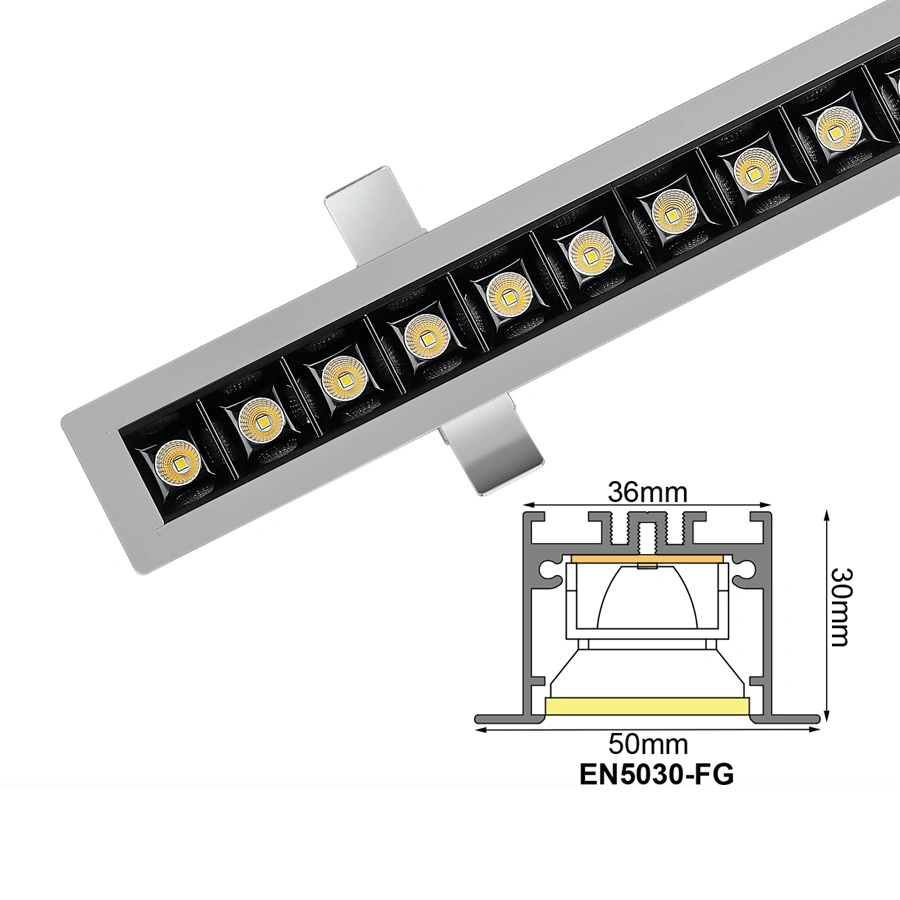

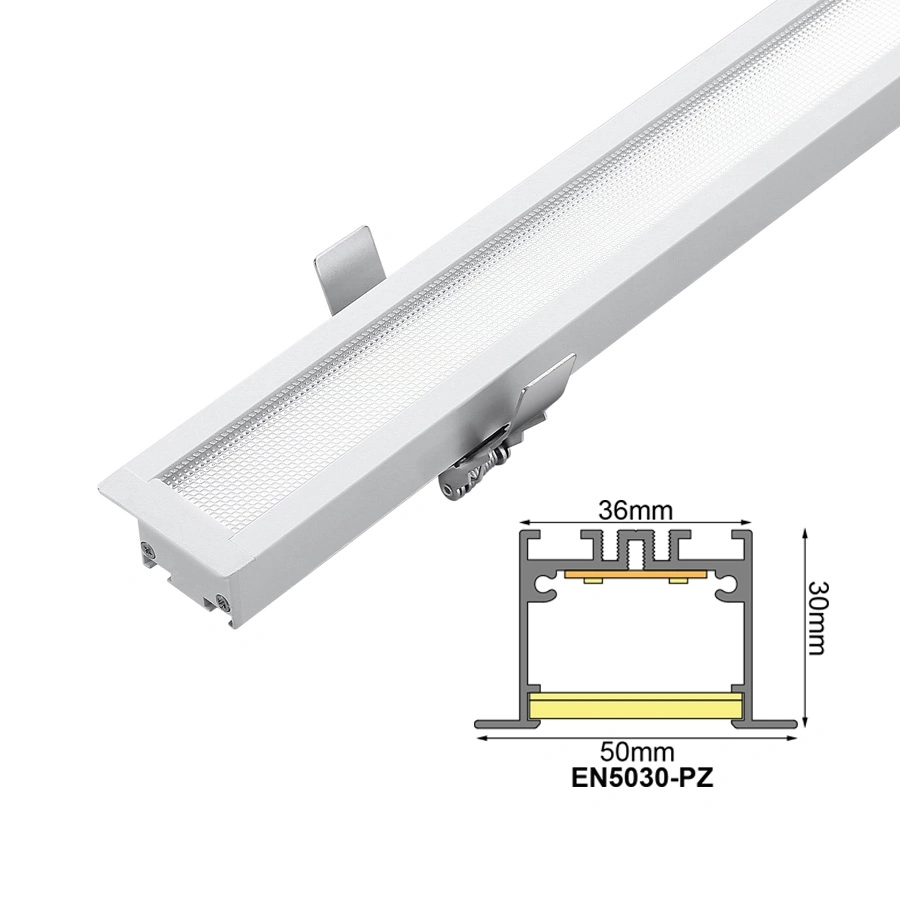

The aluminum profile size is W50mm*H30mm, available in standard lengths of 0.6m, 1.2m, 1.8m, and 2.4m. All units are seamless connectable with no gap.

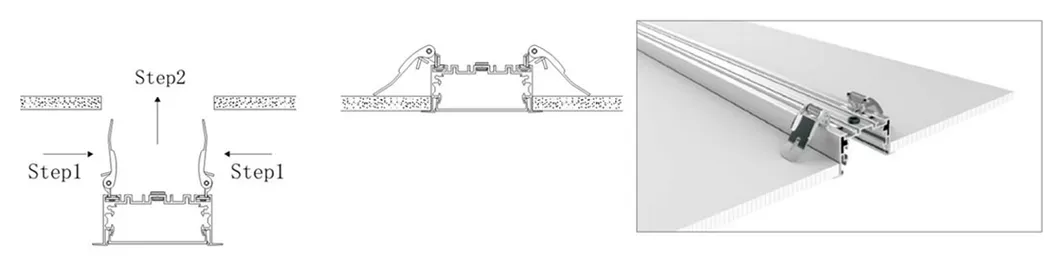

Installation Guide
Product Gallery
Product view 1
Product view 2

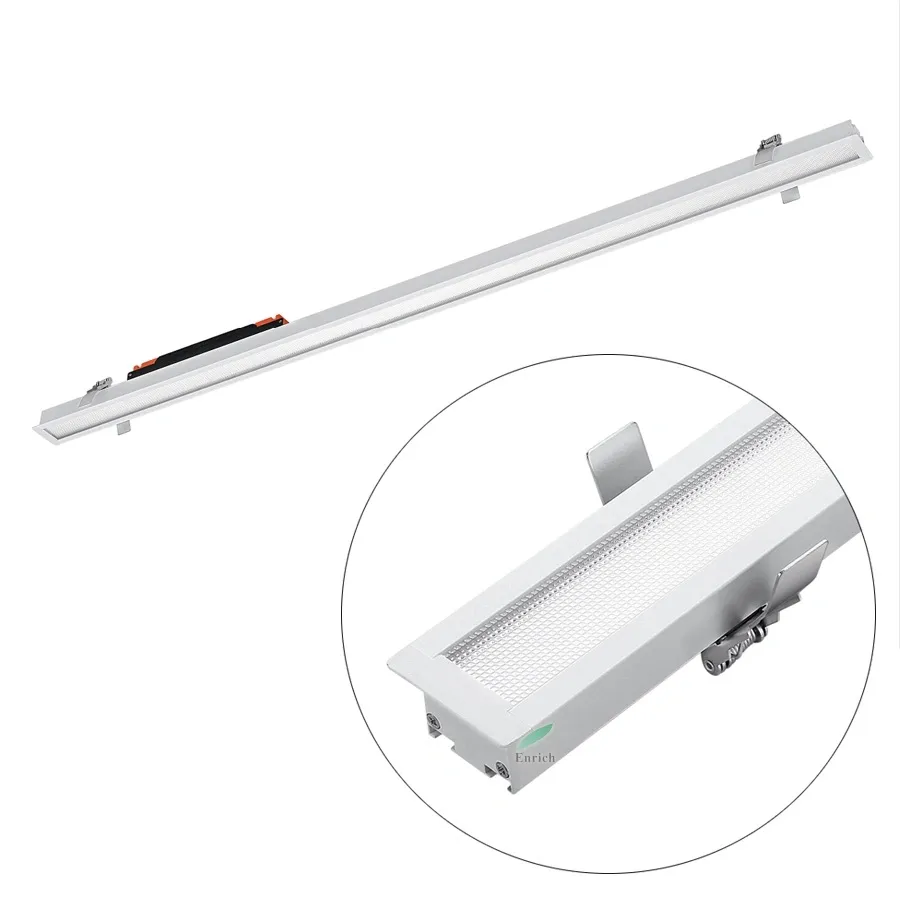

Product view 3

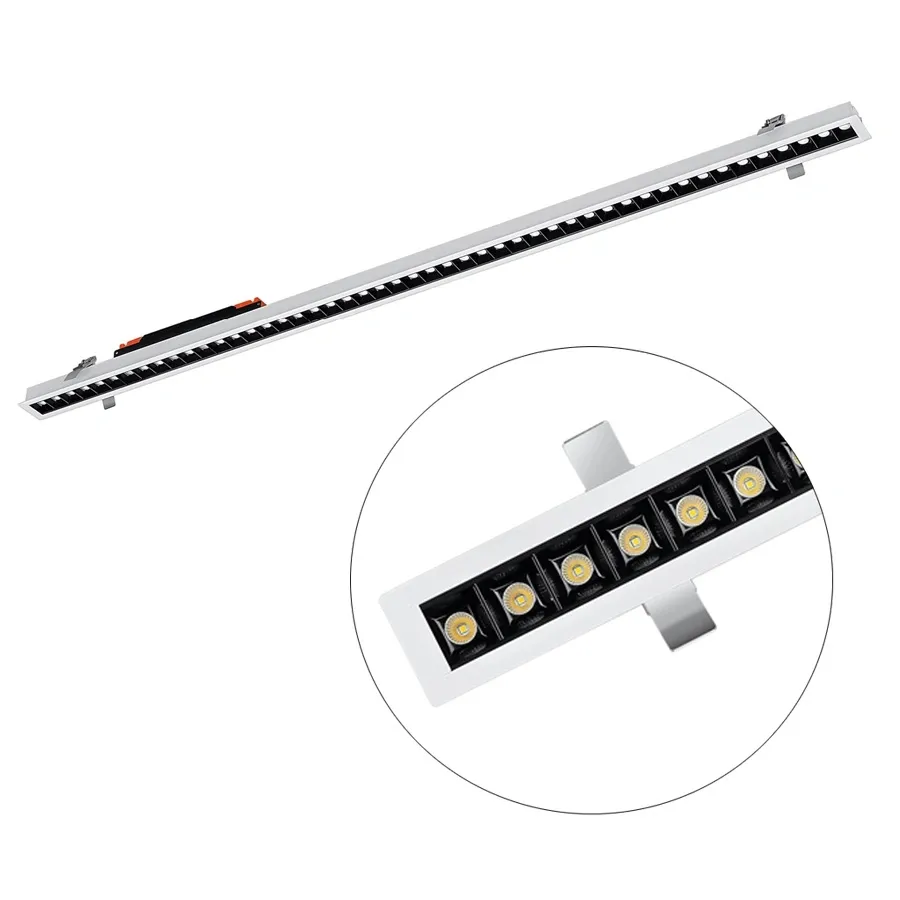

Product view 4
Applications

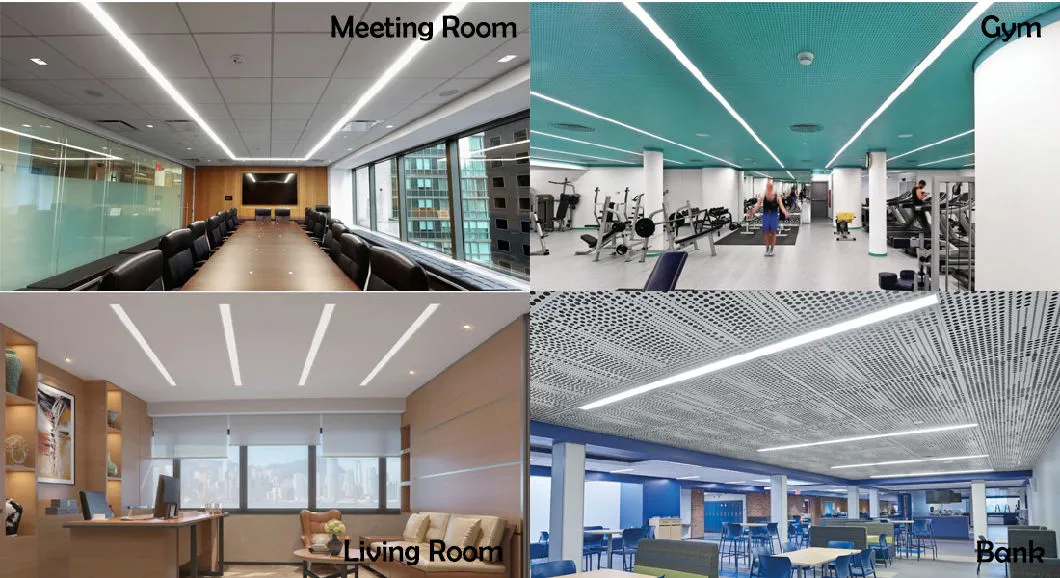

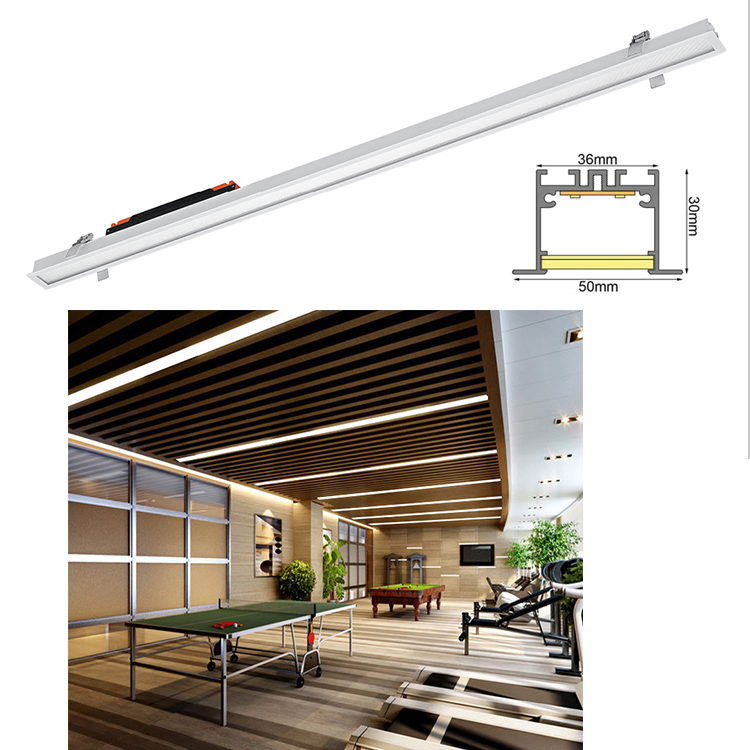

Application view 1

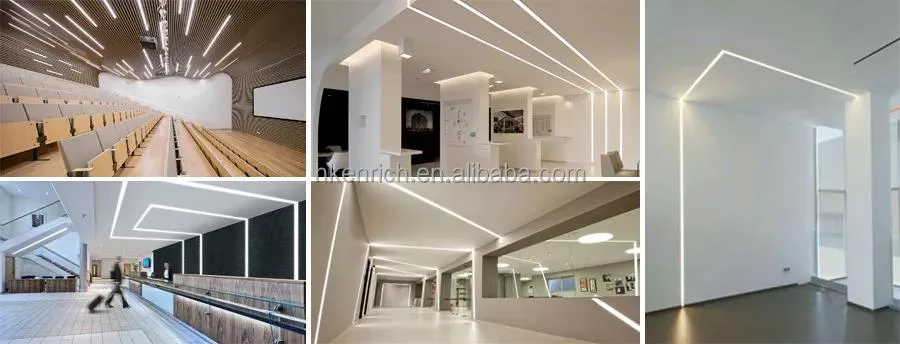

Application view 2
Manufacturing & Quality

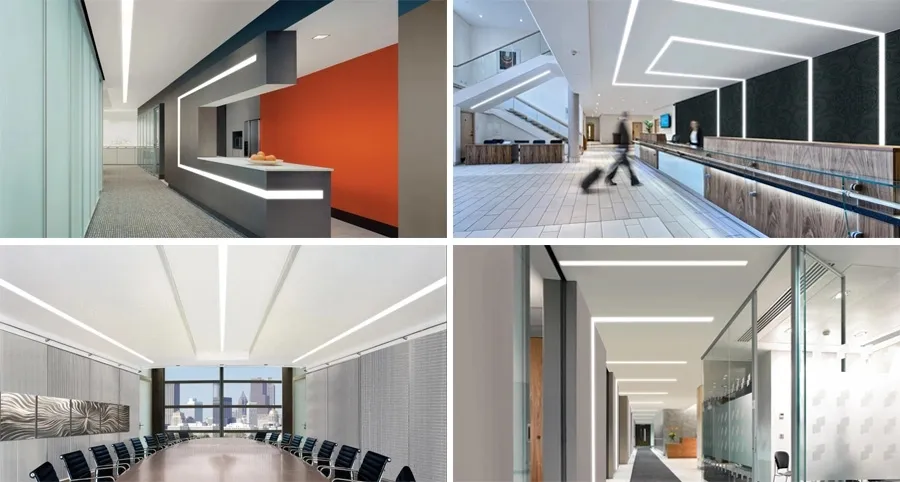

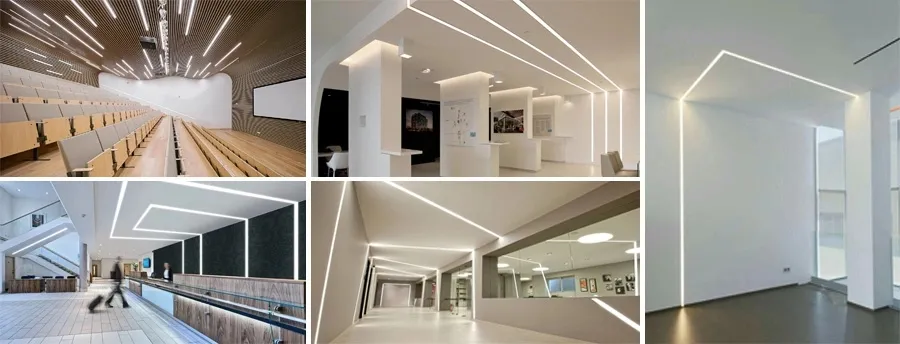

Quality display 1
Quality display 2
Quality display 3
Quality display 4
Quality display 5
Frequently Asked Questions
What installation methods are supported?
The product can be installed using hanging, surface mounted, or recessed installation methods.
Are these linear lights seamless when connected?
Yes, they are designed to connect seamlessly using 4pcs metal straps to ensure a tight fit with no gaps or light leakage.
What are the available color temperatures?
The standard color temperatures available are 3000K, 4000K, and 6000K.
Does the light flicker?
No, the light uses a high-quality IC driver that ensures a flicker-free and non-glaring experience.
What materials are used for the lamp body?
The lamp body is constructed from high-quality Aluminum and PC material.
Which certifications does this product hold?
This product has passed several certifications including CE, EMC, RoHS, SAA, and UL.
