Home > LED Surface Mounted Panel Light > 6W LED Surface Mounted Square Panel Light (LLS-6W)

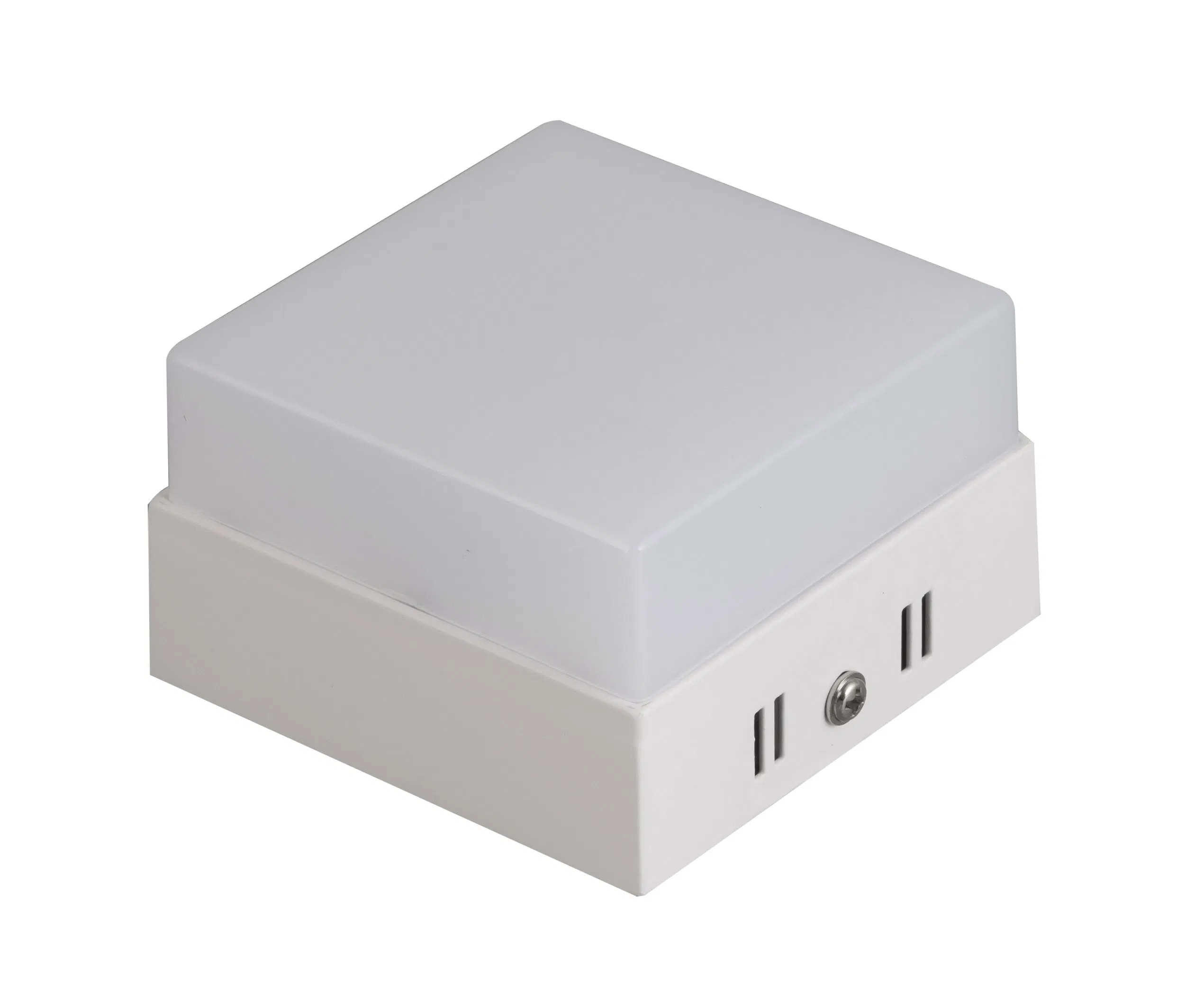

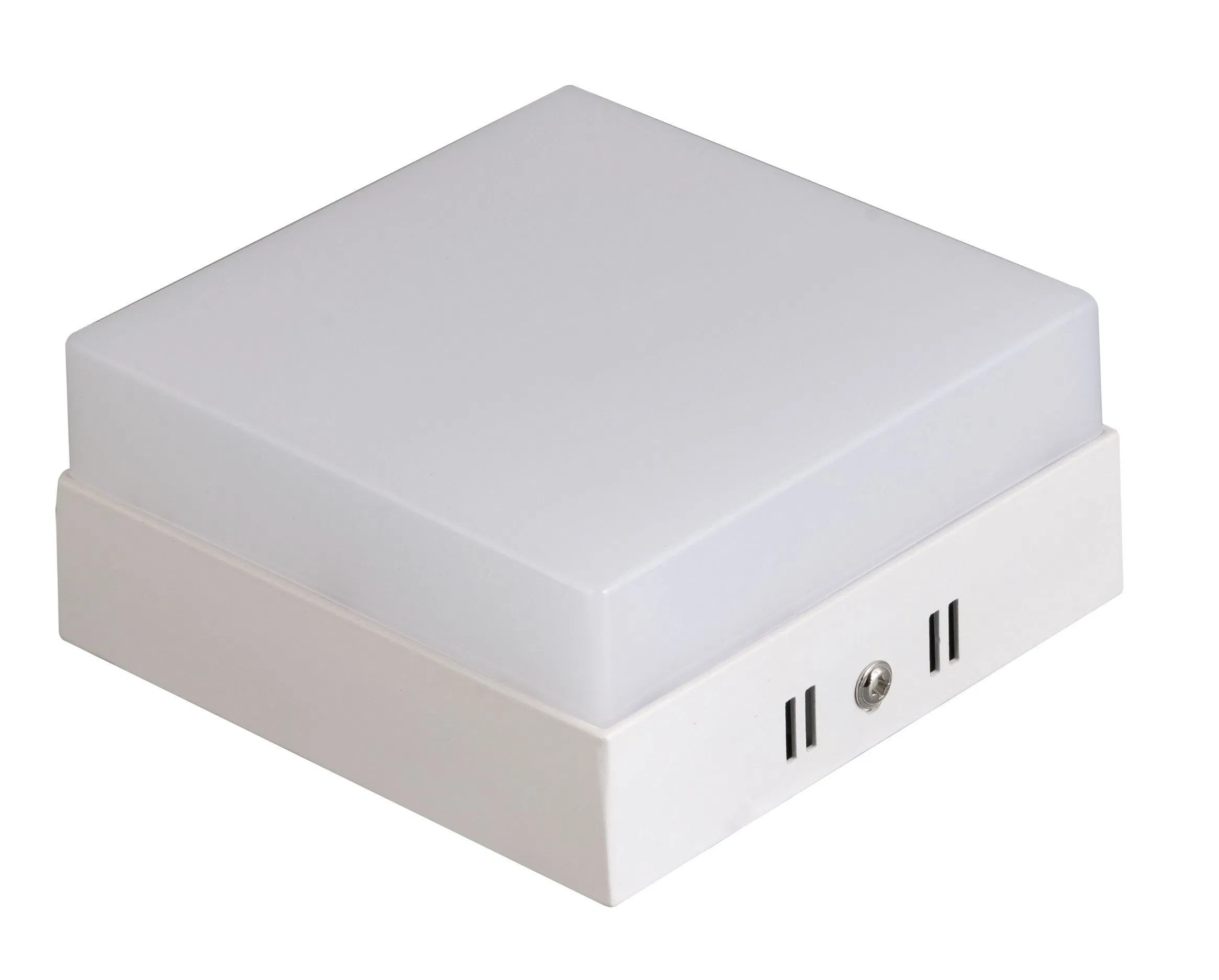

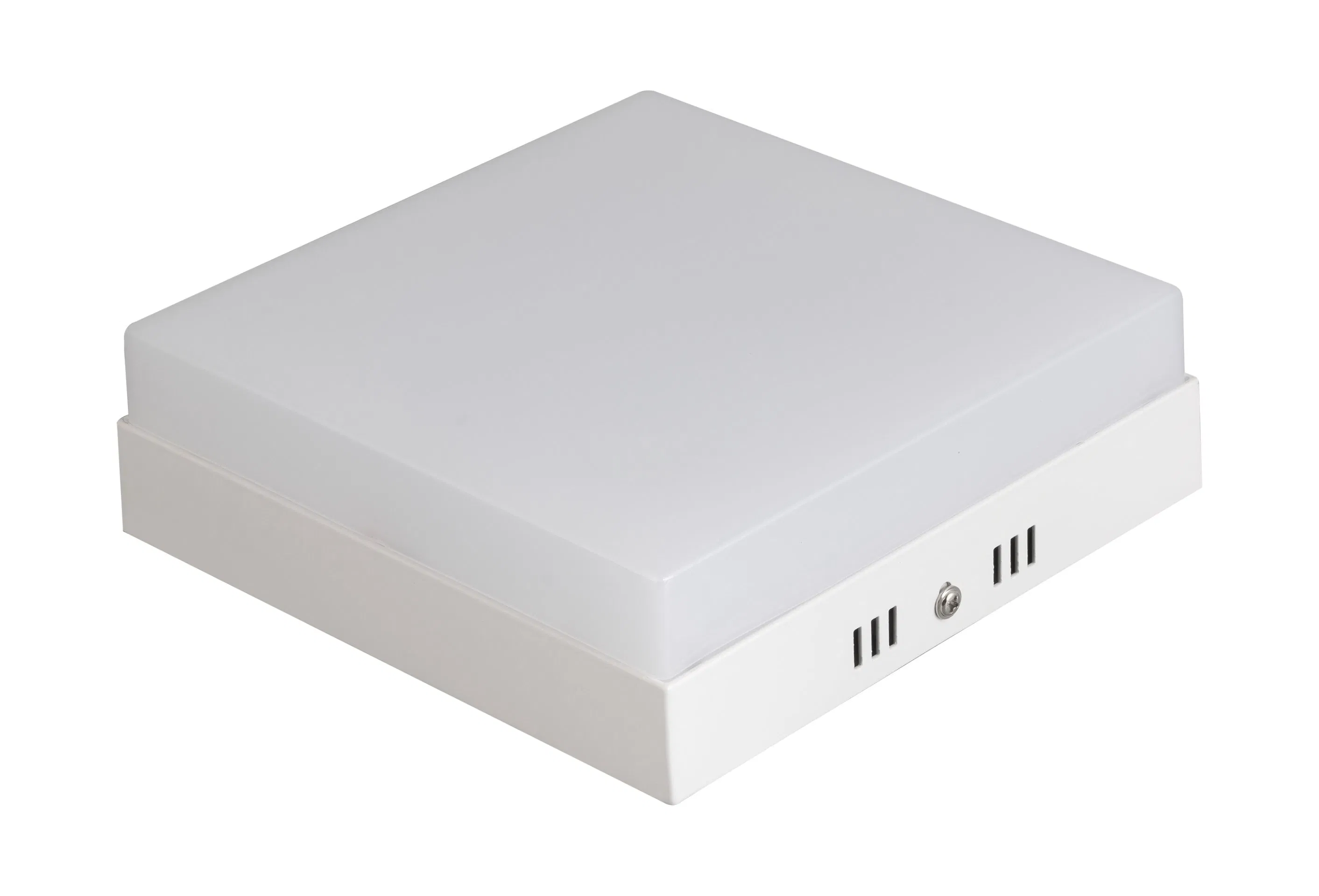

6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
1 / 5
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)
6W LED Surface Mounted Square Panel Light (LLS-6W)

6W LED Surface Mounted Square Panel Light (LLS-6W)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Emitting ColorWhite, Warm White
DimmableWithout Dimmable
AppearanceSquare
TypeCeiling
Base MaterialAluminum
CertificationCE, RoHS
Voltage100V-240V
Beam Angle180°
Wattage6W, 12W, 18W, 24W, 36W
Power SupplyNon Isolation
PF0.5
Lumen360lm
CRI≥80
Color Temperature3000K, 4000K, 6000K
Cutting SizeSurface Mounted
PackingCustomized / Neutral
Specificationø 90*51mm
HS Code9405409000

Product Features

LED Surface Mounted Panel light - Model No.: LLS-6W

  • Surface Mounted LED ceiling panel light, small size to save space.
  • Bottom lighting, using reflective light leading board, no glare, eyes protecting.
  • Use constant current driver, no stroboflash.
  • World-wide use voltage 100-240V.
  • Die casting aluminum housing, good heat dissipation.
  • Replace downlight directly.
  • PMMA Light Guide Plate, PMMA diffuser.
  • Shape: Square.
  • Wattage: 6W (12W, 18W, 24W, 36W also available).
  • Lumen: 360LM.
6W LED Surface Mounted Square Panel Light

Detailed Specifications

Item No.LLS-6W
Input voltageAC100-240V
LED chipEpistar -SMD2835
Power6W
CRI≥80
Lamp Size88*51mm
Beam Angle180°
Power factor≥ 0.6
Warranty2 years
MaterialAluminum + PMMA
Life> 50,000 hours
Square Panel Light Dimensions

Applications

Hotels
Bedroom / Bathroom
Conference Rooms
Factories & Offices
Commercial Spaces
Schools & Universities
Supermarkets
Application Scene
Usage Notes:
  1. Indoor application in dry environment only.
  2. Do not cover flammable materials over lamp.
  3. Make sure the power is off during installation.
  4. Professional maintenance personnel required for repairs.

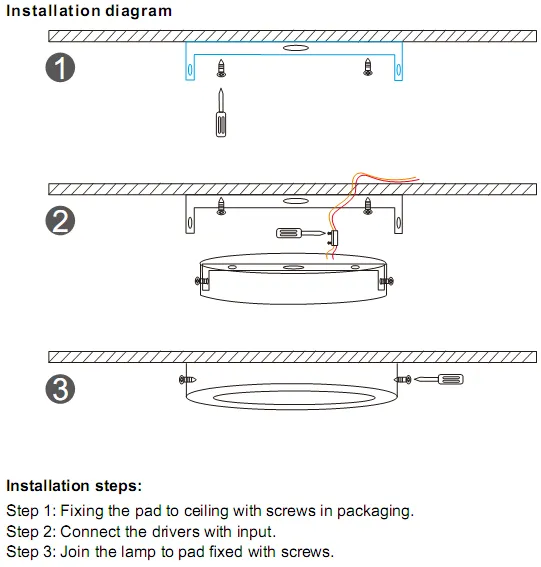

Installation Guide

Installation Steps

Frequently Asked Questions

What are the main benefits of the surface mounted design?
The surface mounted design allows for easy installation on ceilings without the need for cutting holes. It's ideal for solid ceilings where recessed lighting is not possible.
Is the light output eye-friendly?
Yes, the light uses a PMMA light guide plate and reflective board to create bottom lighting that is glare-free and protects the eyes.
What is the expected lifespan of this LED panel?
This LED panel light is designed to last for over 50,000 hours of operation, supported by a 2-year warranty.
Can this light be used in bathrooms?
It is suitable for bathrooms but must be kept in a dry environment as it is designed for indoor dry application only.
Does the light flicker?
No, it uses a constant current driver which ensures there is no stroboflash (flickering), providing a stable light source.
What wattages are available for this square model?
While the standard model shown is 6W, we also offer 12W, 18W, 24W, and 36W versions to suit different brightness requirements.
