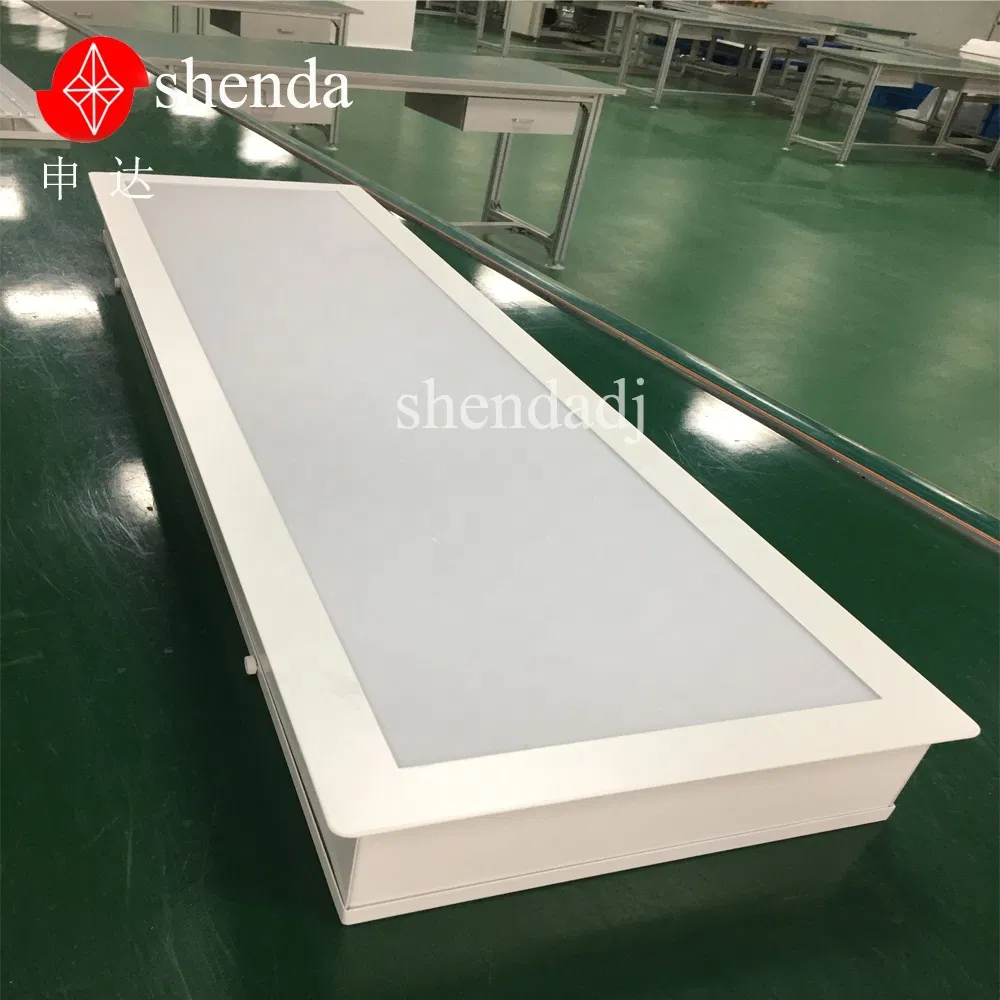

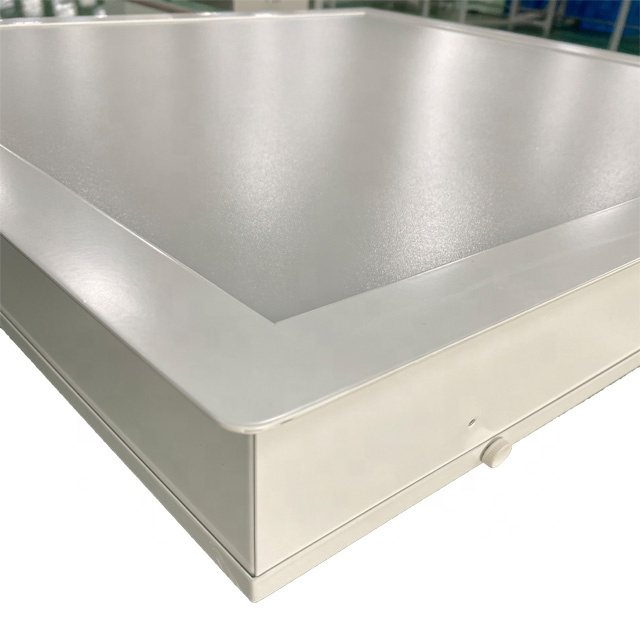

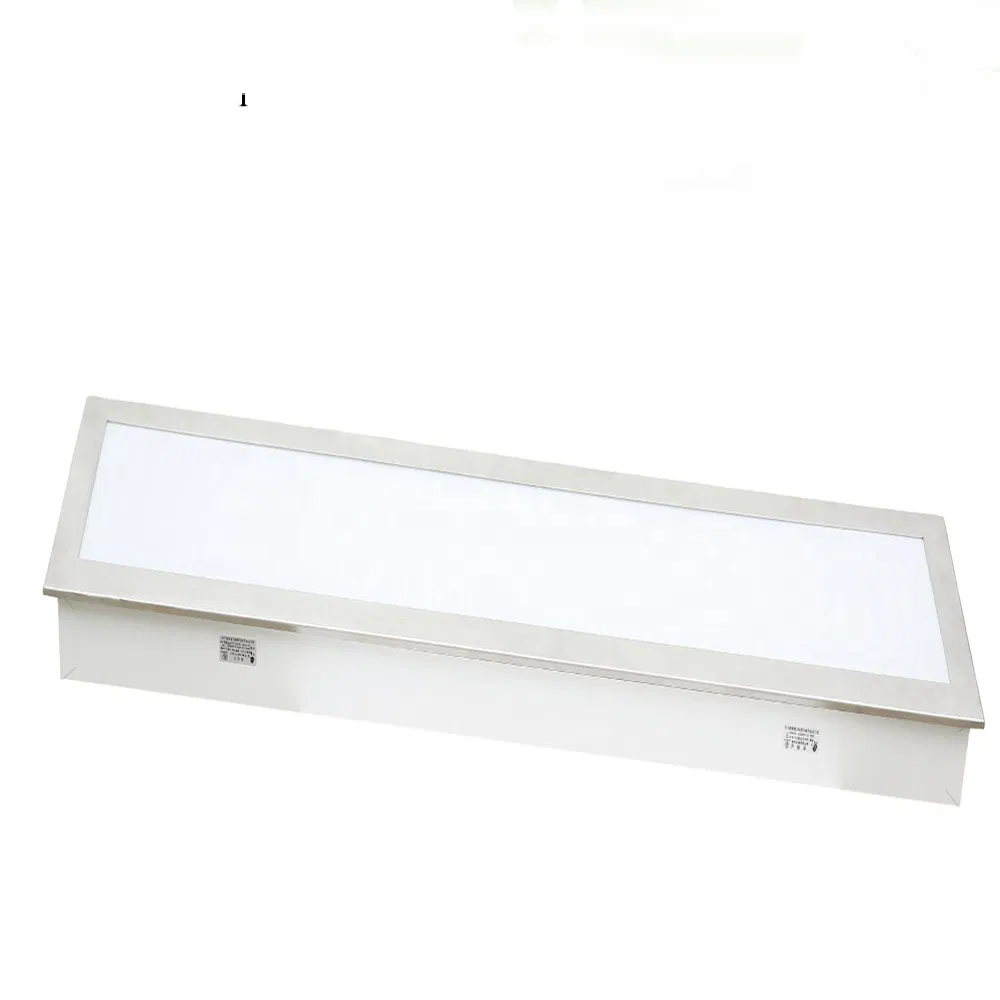

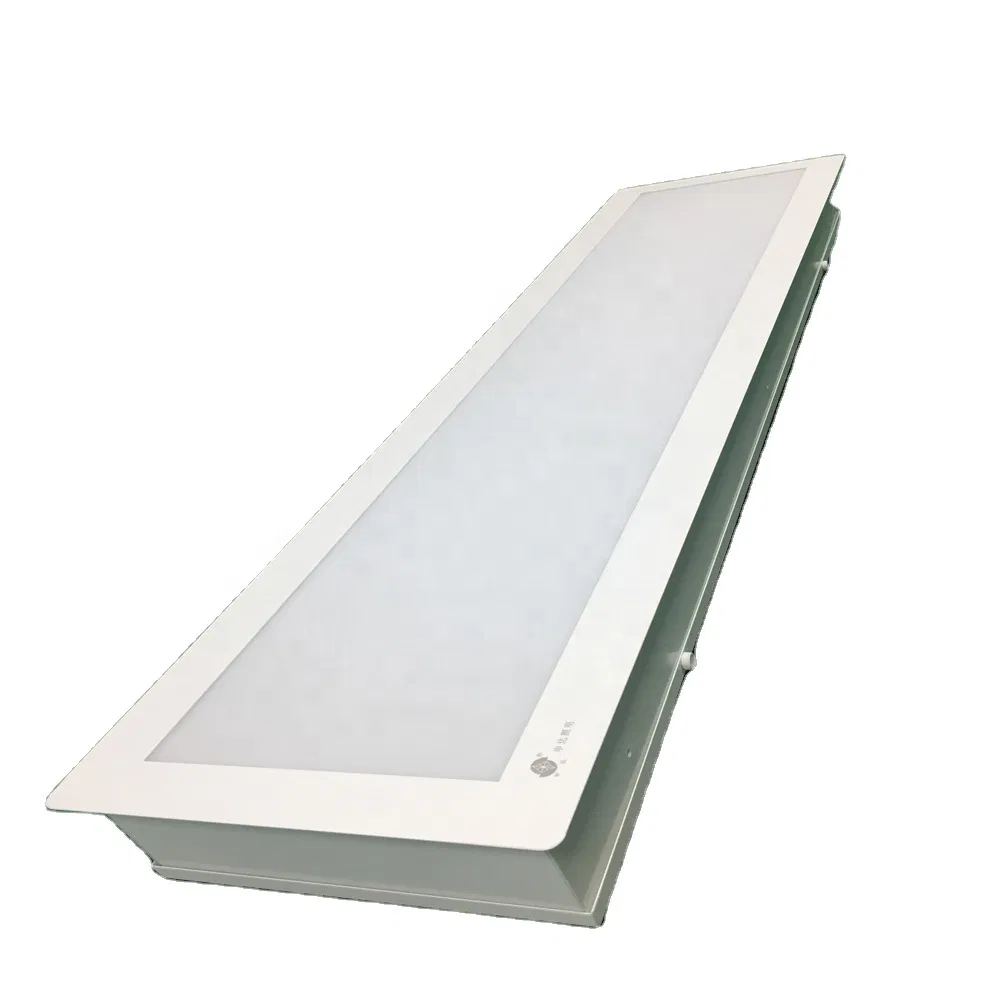

Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
1 / 5
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer
Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer

Cleanroom Light Fixture 1X4 LED Top Openable IP54 Recessed Light Panel Manufacturer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
MQ-Y42/SD14TB
Color Temperature
Daylight
Light Source
LED
Material
Metal
Mount Type
Recessed
Wattage
42W
Lumen
4200lm
Efficiency
100lm/W
CRI (Ra)
>80
CCT
3K/4K/6K
IP Grade
IP20/IP54
Warranty
3 Years
SD14TB Cleanroom LED Panel Series
Key Features:

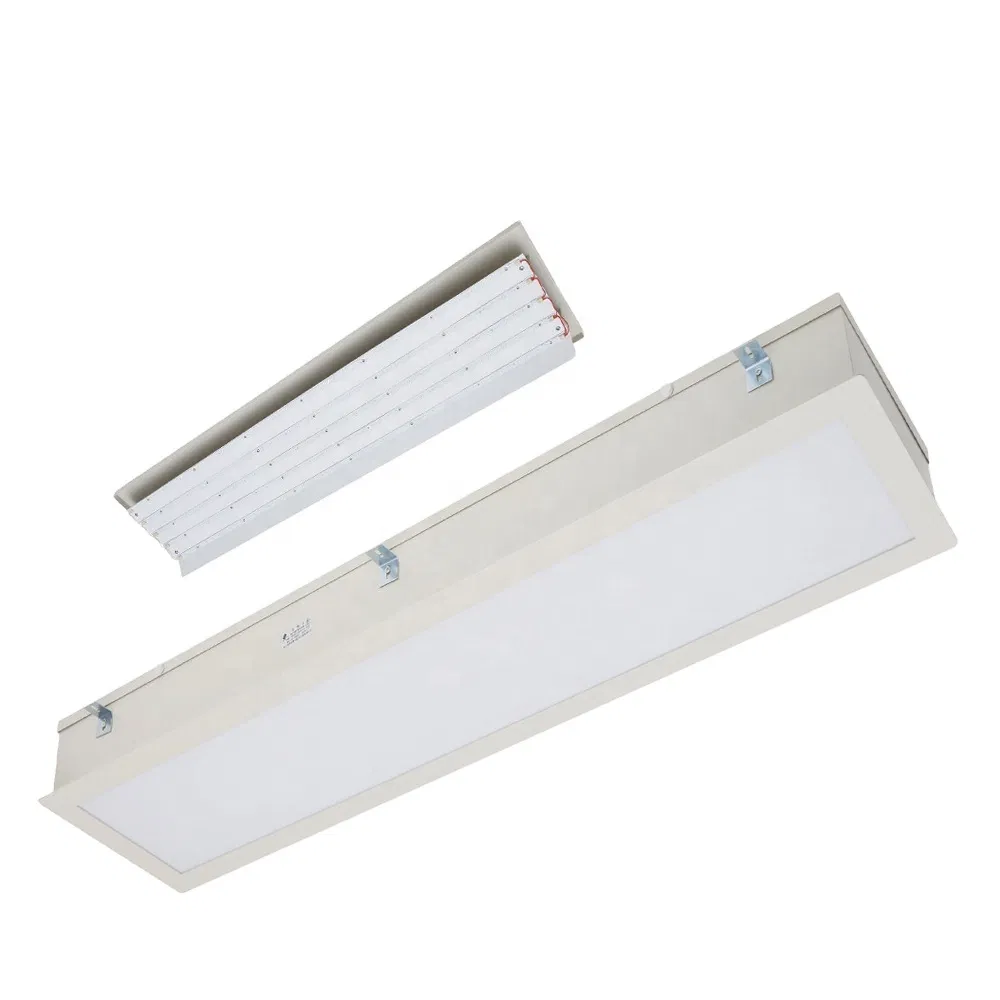

  • Top openable design for built-in installation and easy maintenance.
  • Equipped with LED SMD LM80, ensuring no blue-ray hazard or photobiocontamination.
  • Compliant with low-voltage electrical safety and EMC requirements.
  • Anti-glare technology with stable, flicker-free constant output performance.
  • IP20/IP54 Waterproof and dustproof rating suitable for controlled environments.

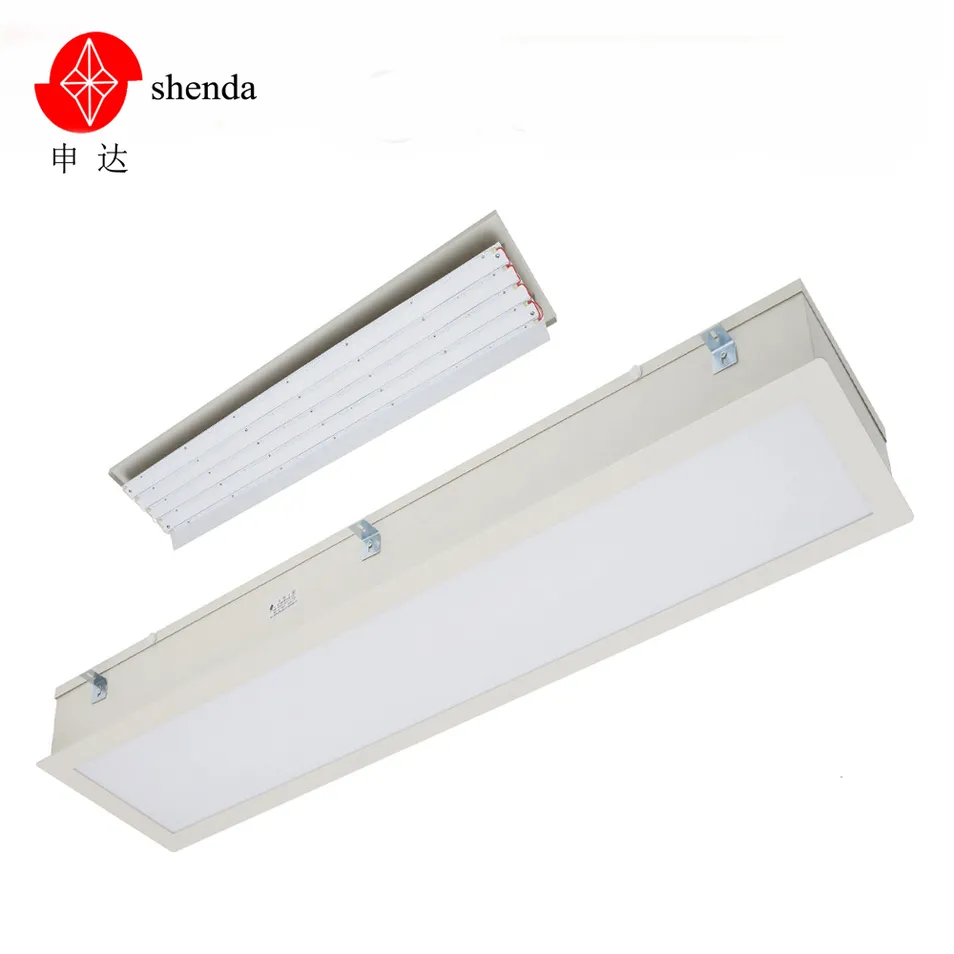

Cleanroom Light Fixture Detail 1

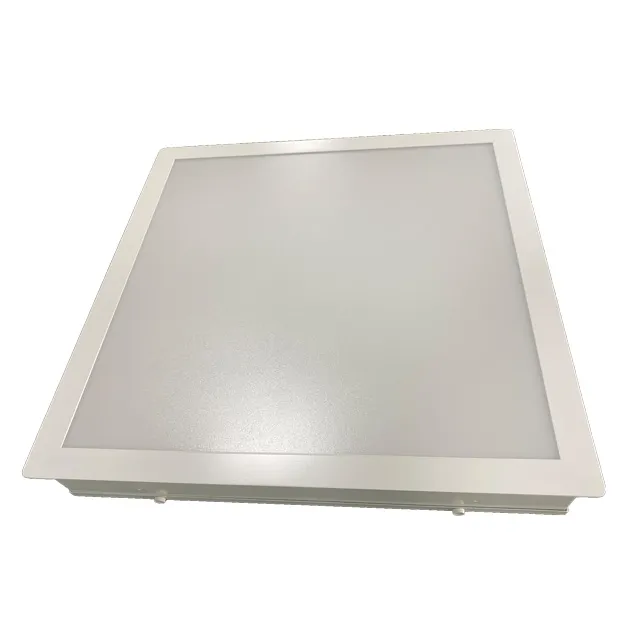

Cleanroom Light Fixture Detail 2

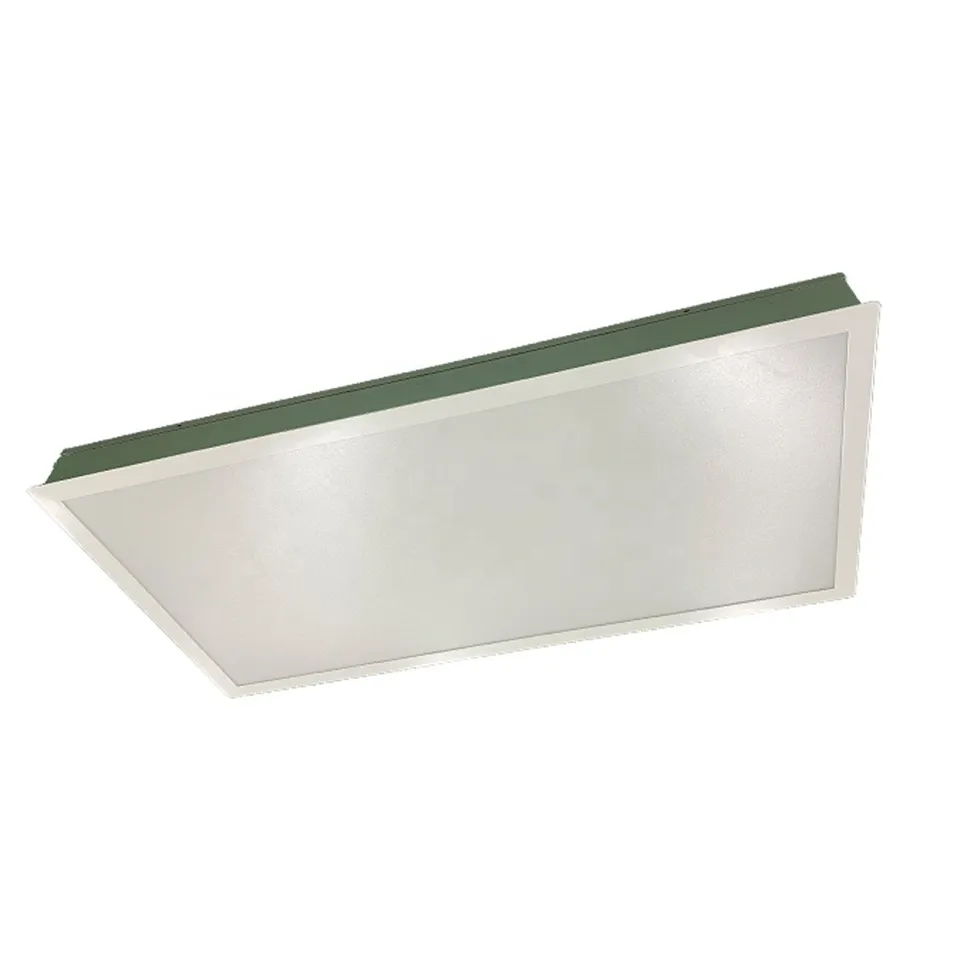

Recessed Light Panel View 1

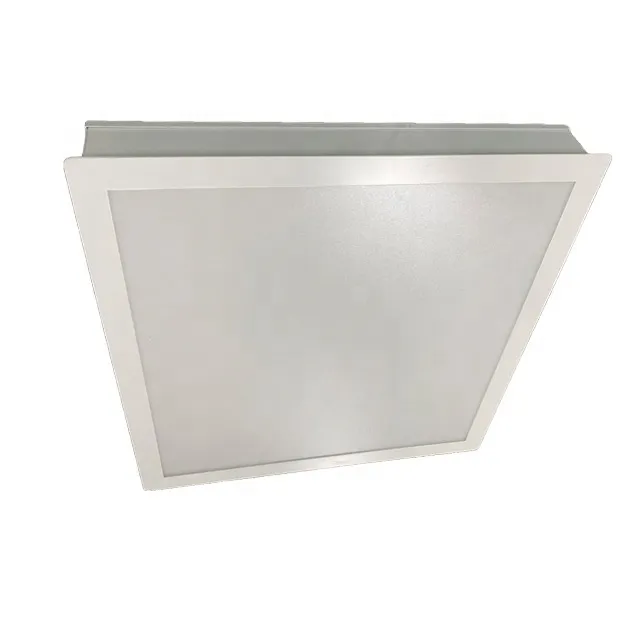

Recessed Light Panel View 2
Technical Specifications
Parameter Details
Dimensions630*280*102mm
Wattage20W / 30W / 42W / 60W Options
Power Factor (PF)0.95
FlickerFlicker Free
DimmingOn/Off; 0-10V dimming; DALI dimming
Input Voltage220-240VAC or 100-277VAC 50/60Hz
Diffuser MaterialOpal PS/PMMA/PC filter
Lifespan30,000 Hours
Model Dimensions (mm) Cut-out (mm) Power Lumen IP Grade
MQ-Y20/SD14TB630*280*102605*25520W2000lmIP20/IP54
MQ-Y30/SD14TB930*280*102905*25530W3000lmIP20/IP54
MQ-Y42/SD14TB1230*280*1021205*25542W4200lmIP20/IP54
MQ-Y60/SD14TB1230*330*1021205*30560W6000lmIP20/IP54

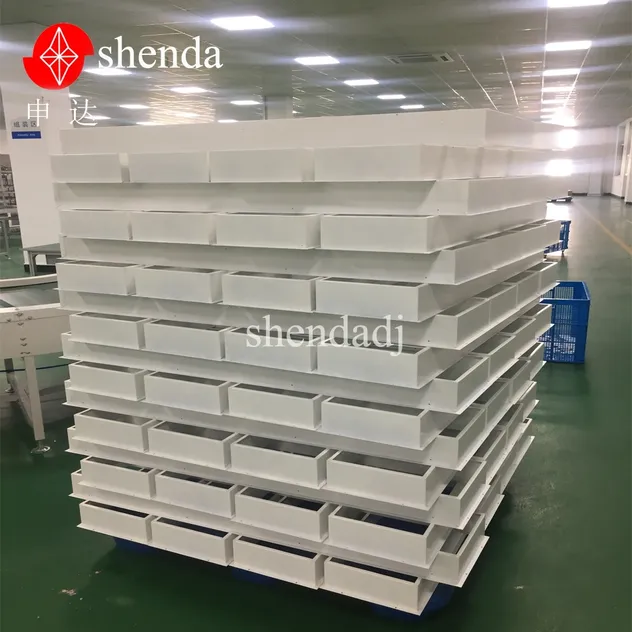

Product Series 1

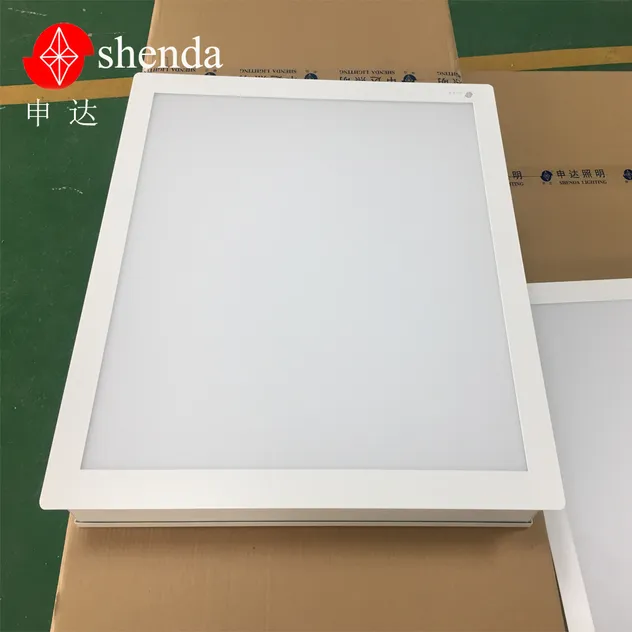

Product Series 2

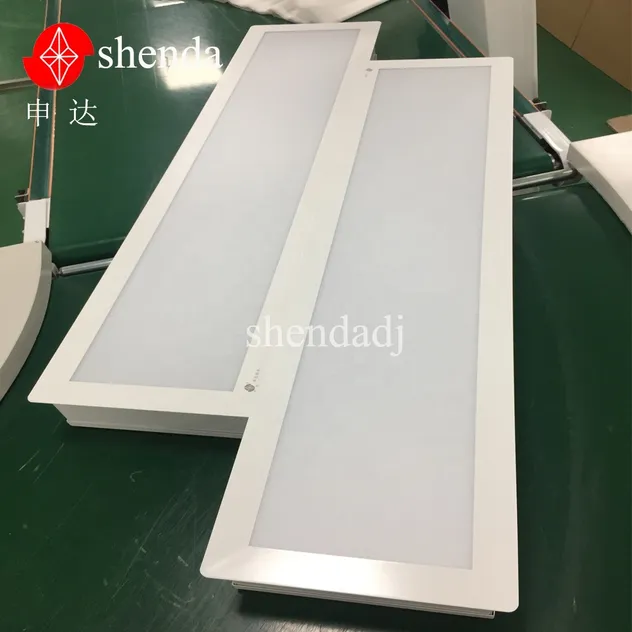

Product Series 3
Packaging & Shipping

Inner Packaging: Standard corrugated cartons with protective plastic bags for each product.

Master Packaging: Environmentally friendly pallets or plywood boxes for bulk security.

Shipping Options: Available via Rail, Ocean, or Air transportation depending on urgency and volume.

Packaging Box
Pallet Loading
Shipping Ready
Frequently Asked Questions
What are the primary benefits of the top-openable design?
The top-opening design allows for easy maintenance and replacement of components from above the ceiling, which is critical for maintaining cleanroom integrity without disturbing the sterile environment below.
Is this LED panel safe for sensitive cleanroom environments?
Yes, it uses LED SMD LM80 chips which produce no blue-ray hazard. Additionally, its smooth surface is designed for easy cleaning and meets strict cleanroom standards.
What dimming options are available for these fixtures?
We provide several control options including standard On/Off, 0-10V dimming, and DALI dimming to suit various facility management systems.
Does the light flicker during operation?
No, these panels are designed to be flicker-free, providing a stable and constant light output that reduces eye strain and ensures performance consistency.
What is the IP rating and what does it protect against?
The fixtures come with IP20/IP54 ratings, offering protection against dust ingress and water splashes, making them ideal for pharmaceutical or laboratory cleanrooms.
How long is the warranty period for the SD14TB series?
We offer a 3-year warranty on this series, covering the performance and reliability of the LED drivers and the light source.
