Product Description

Overview
Model NO.
PSB282C-RGBW
Emitting Color
RGBW(W:2700K/3000K/4000K/6500K)
Dimmable
With Dimmable
Appearance
Square
Type
Backlight
Certification
CE, RoHS, UL
Voltage
24V
Beam Angle
120 Degree
LED Chip
SMD5050 RGBW
LED Qty
288LED/Sheet
Dimension
304.8X609.6X6.5mm (12X24X0.26 Inch)
Wattage
35W/Sheet
CRI
80/90/95 Optional
Lm/W
>100
Cut
6-LED/Cut
IP Rank
IP20 or IP65
Warranty
3 Years
Product Description

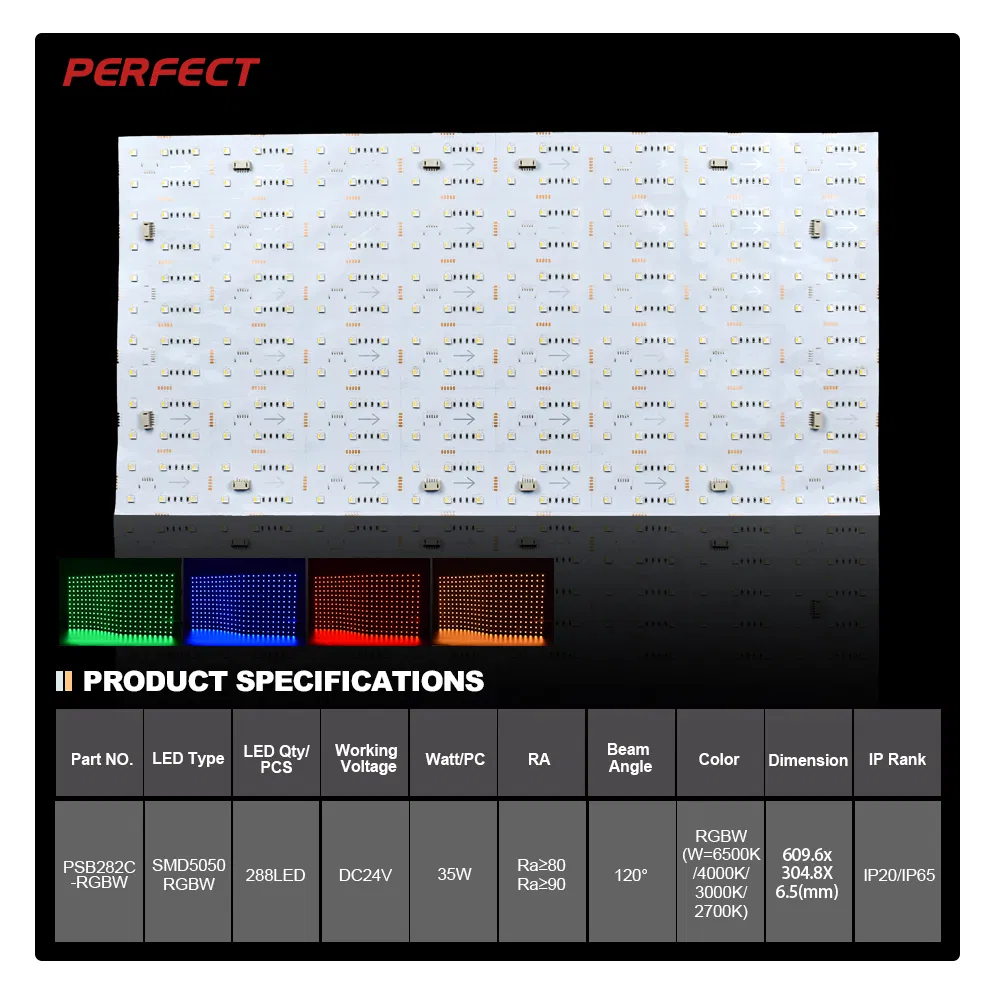

DC24V SMD5050 RGBW 288LED Dimmable RGBW Wi-Fi LED Board Light Backlit Stone Paper Thin LED Sheet Light Custom Size Flex Panel
LED Sheet Front View
📍
Widely used in light box, bar, large area lighting, LED panel light and marble stone.
✂️

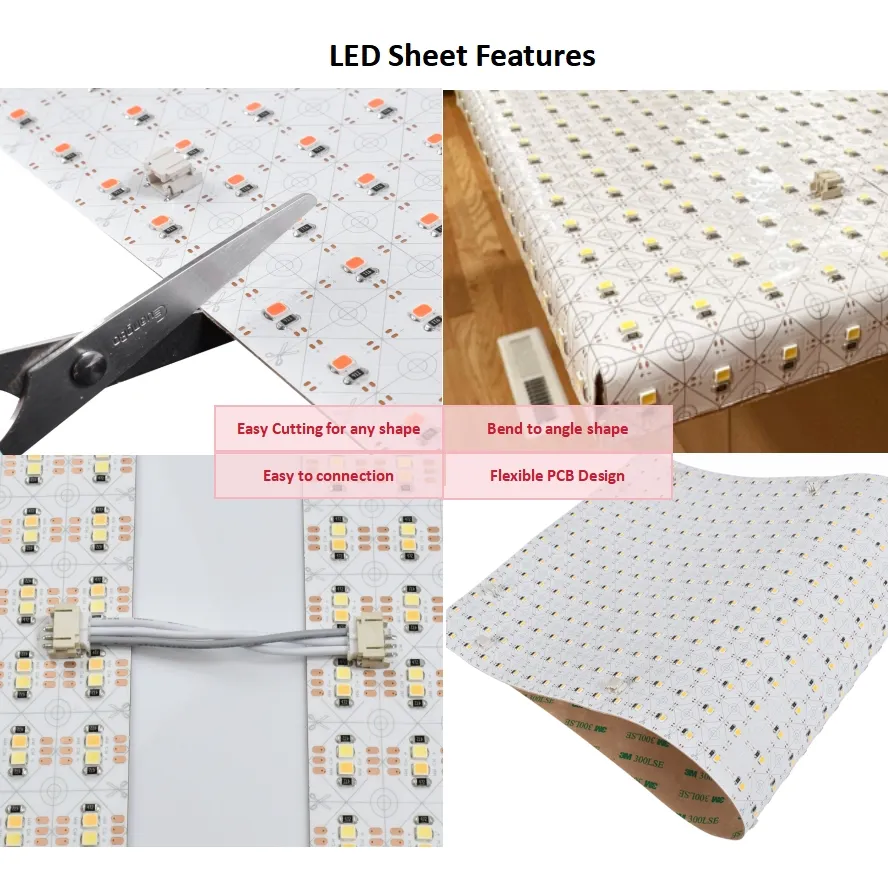

1LED/2LEDs/4LEDs per cut, any shape available.
🔄
Can be folded into two sides, three sides, or full coverage lighting.
DC24V Safe voltage, human body can touch directly.
💡
Use SMD2835 LED chips, high brightness.
🛠️
3M Double-sided adhesive tape for easy installation.
LED Sheet Details
Product Parameters

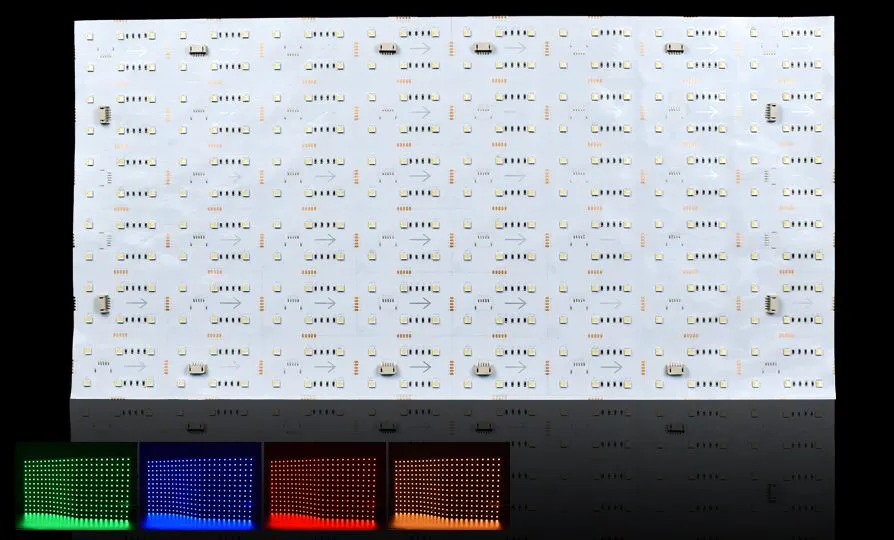

Technical Specifications
Product Name Flexible LED Sheet LED QTY 288LED/sheet
Voltage DC24V Wattage 35W/sheet
Color Temp. RGBW (W:2700K/3000K/4000K/6500K) Dimension 304.8x609.6x6.5mm (12x24x0.26 inch)
CRI 80/90/95Ra Cutting Length 50.9x76.2mm/cut
Warranty 3 Years IP Rank IP20 or IP65
Application 1
Application 2

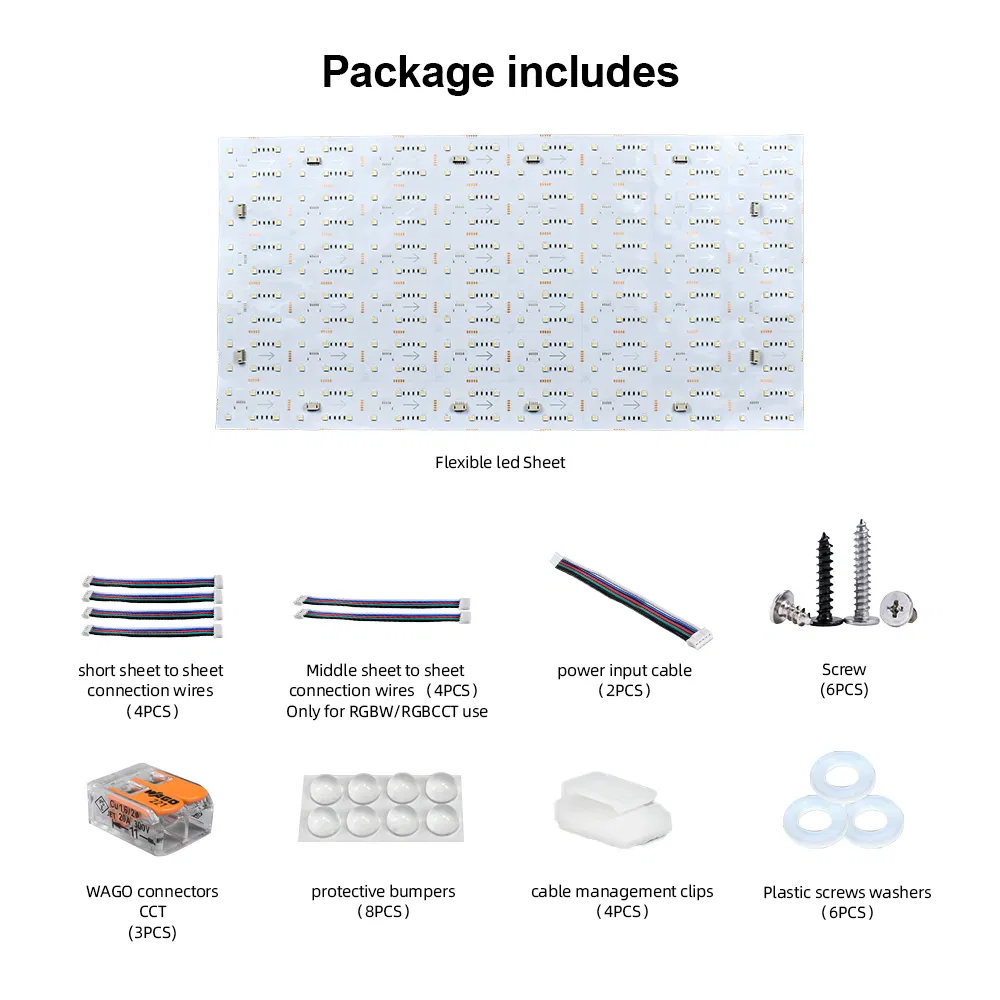

Application 3
Our Advantages

Compared to Acrylic sheets, our Flexible LED sheet maintains uniform lighting even after long-term use, avoiding the common issue of light attenuation in standard backlight sources.

Comparison Advantage
Application Display

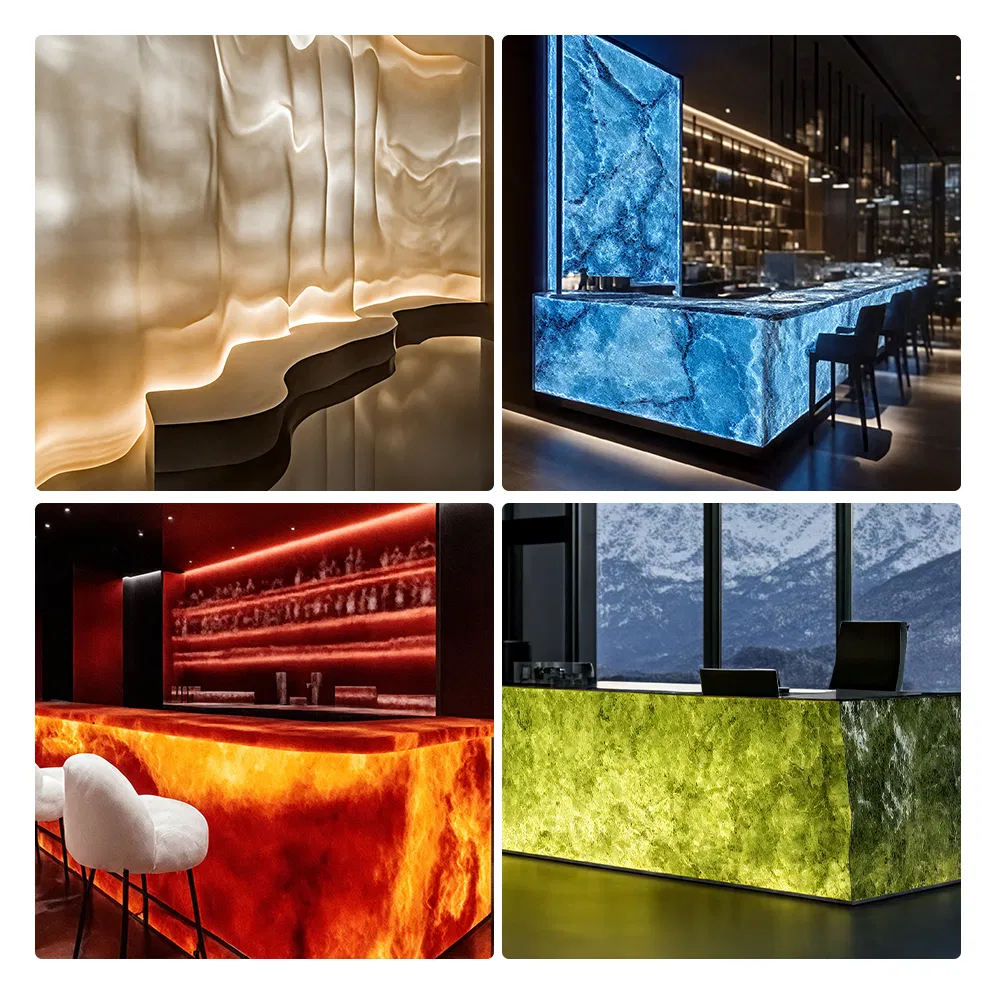

Application Usage
Packaging & Shipping
Shipping Logistics
  • Lead Time: Normally 5~10 days after deposit received. Samples ready in 3~7 days.
  • Shipping Methods: DHL/UPS/FEDEX/TNT express (3~5 days), Air cargo (1 week), or Sea cargo (1 month).
  • Discounts: Available for large quantity orders.
Professional Manufacturing
Factory Overview
Production Line

Established as a professional manufacturer with over 12 years of specialized experience in LED Strip production, our facility focus on high-quality R&D, production, and marketing. We offer a wide range of solutions including waterproof strips, aluminum profiles, and custom thin LED sheets. Our products are recognized globally for high brightness and long lifespan, adhering to UL, CE, and RoHS international standards.

Certifications
Product Certifications
Frequently Asked Questions
Can I have a sample for testing?
Yes, samples are available. We offer 1 to 5 meters of LED strip light for testing. While the sample itself can be provided free of charge for specific orders, freight costs are typically covered by the customer and can be credited back upon formal cooperation.
What is the standard lead time?
For regular orders where material is in stock, delivery takes 3-7 days. Custom products or specialized PCB designs typically require 8-15 days.
Do you support OEM services?
Absolutely. We accept OEM orders and can produce products according to your specific technical requirements, including logo printing on the product and custom packaging.
What shipping options are available?
We usually ship via DHL, UPS, FedEx, or TNT which takes 3-5 days. Airline and sea shipping are also available for larger bulk orders depending on your requirements.
What after-sales service do you provide?
We offer comprehensive technical support. In the event of any verified product quality issues, we provide replacement services or refunds to ensure complete customer satisfaction.
Is your factory certified for international markets?
Yes, all our products are in line with international standards and have obtained UL, CE, and RoHS certifications, ensuring they are safe and reliable for global distribution.
