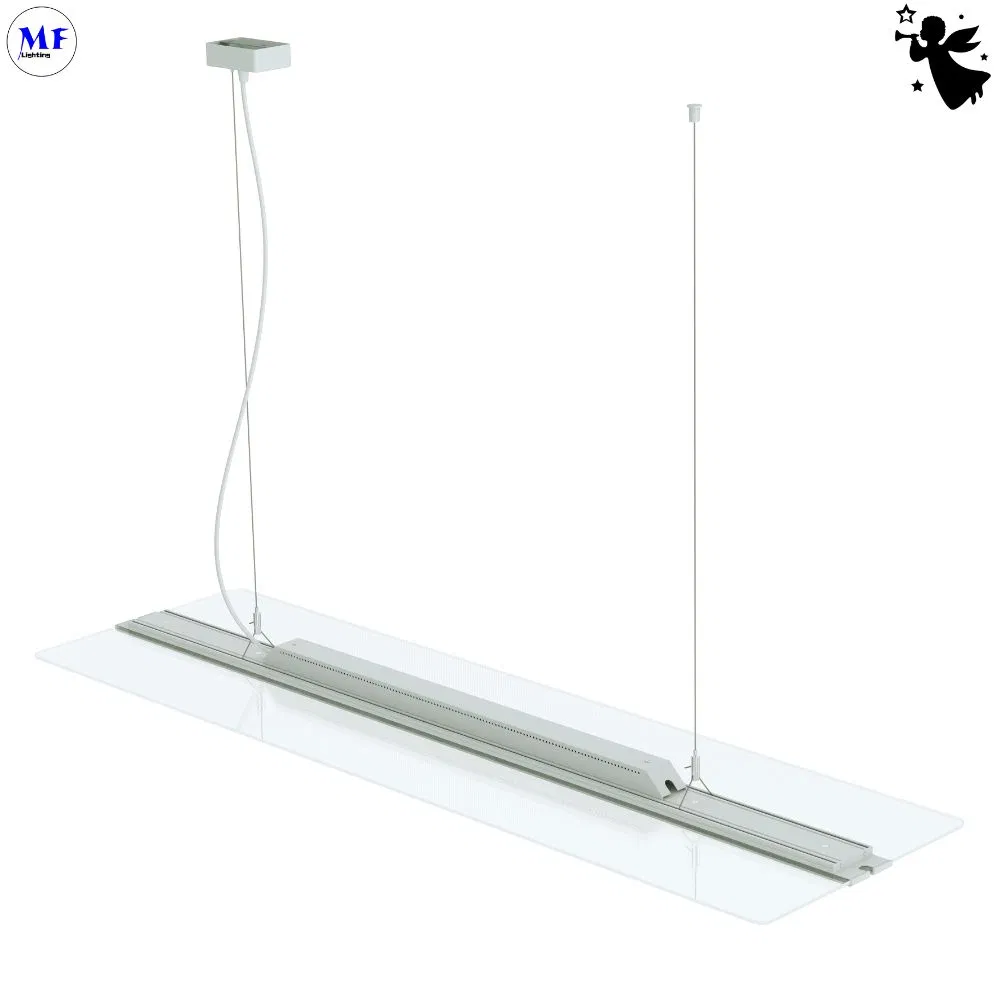

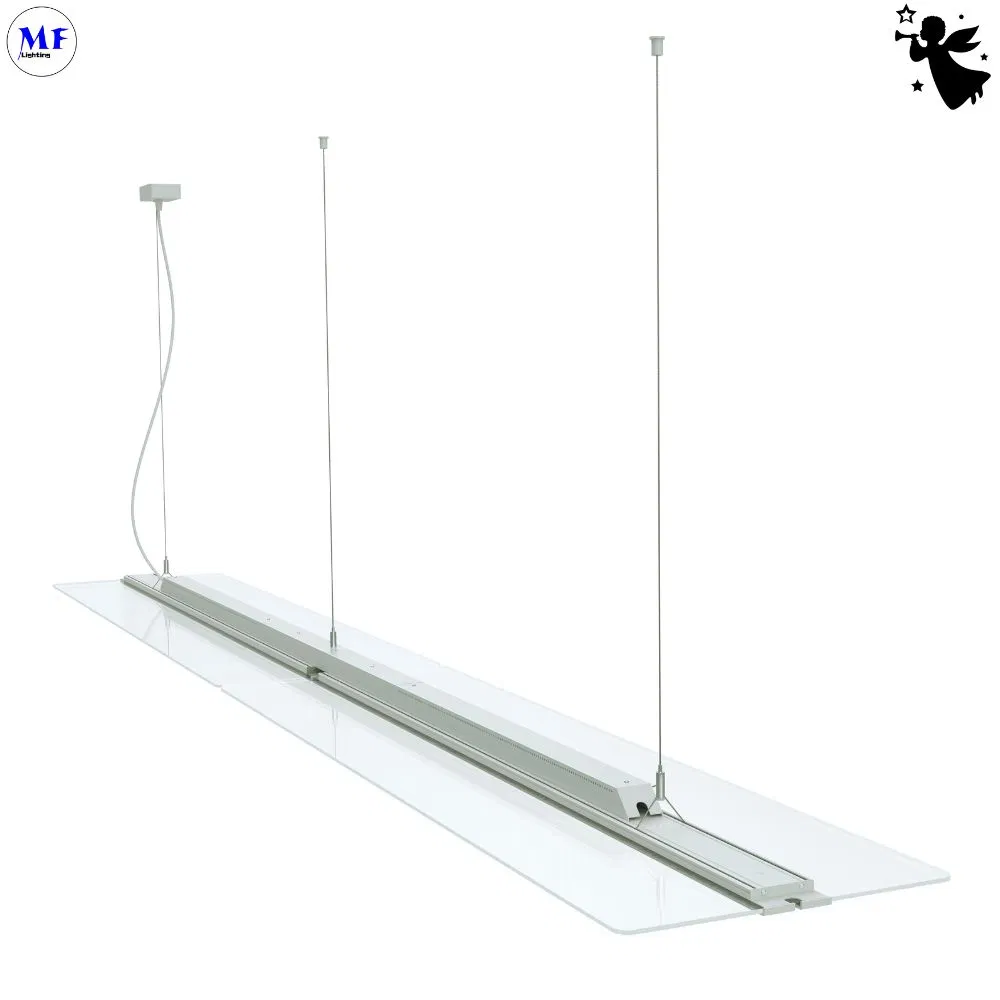

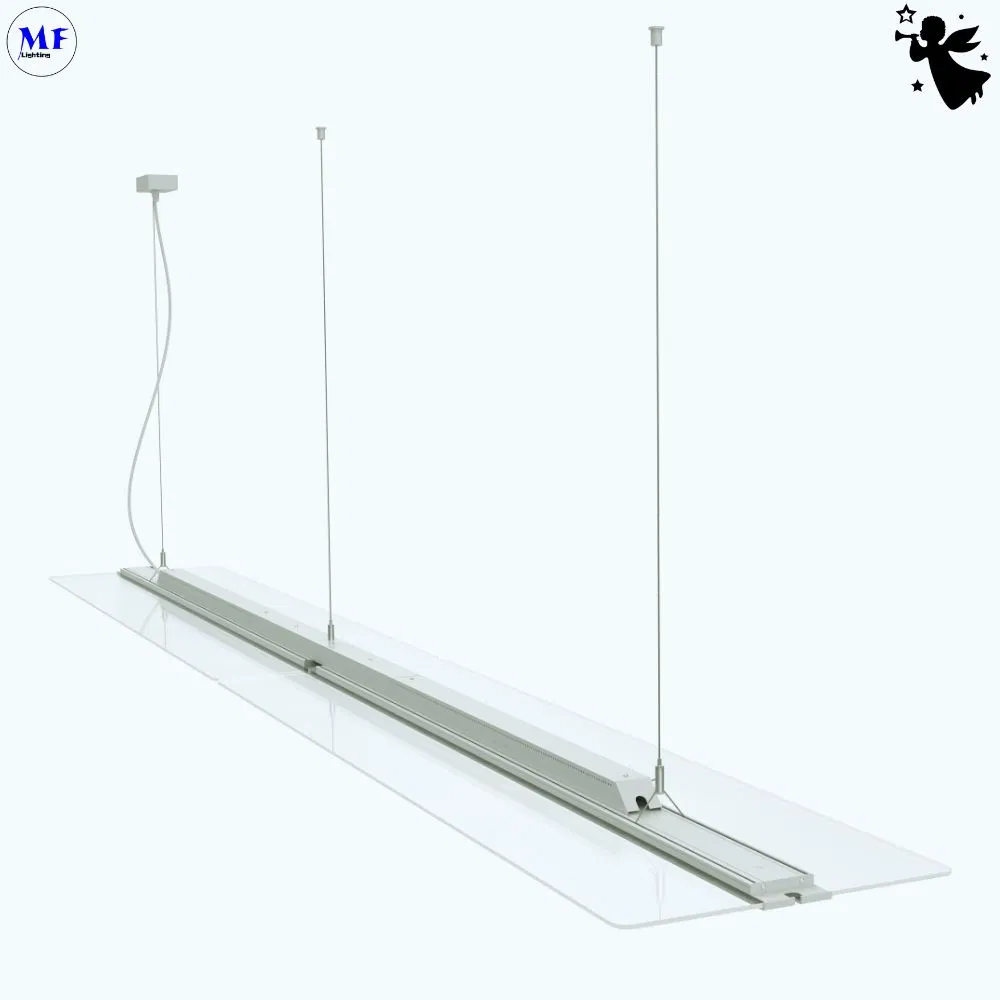

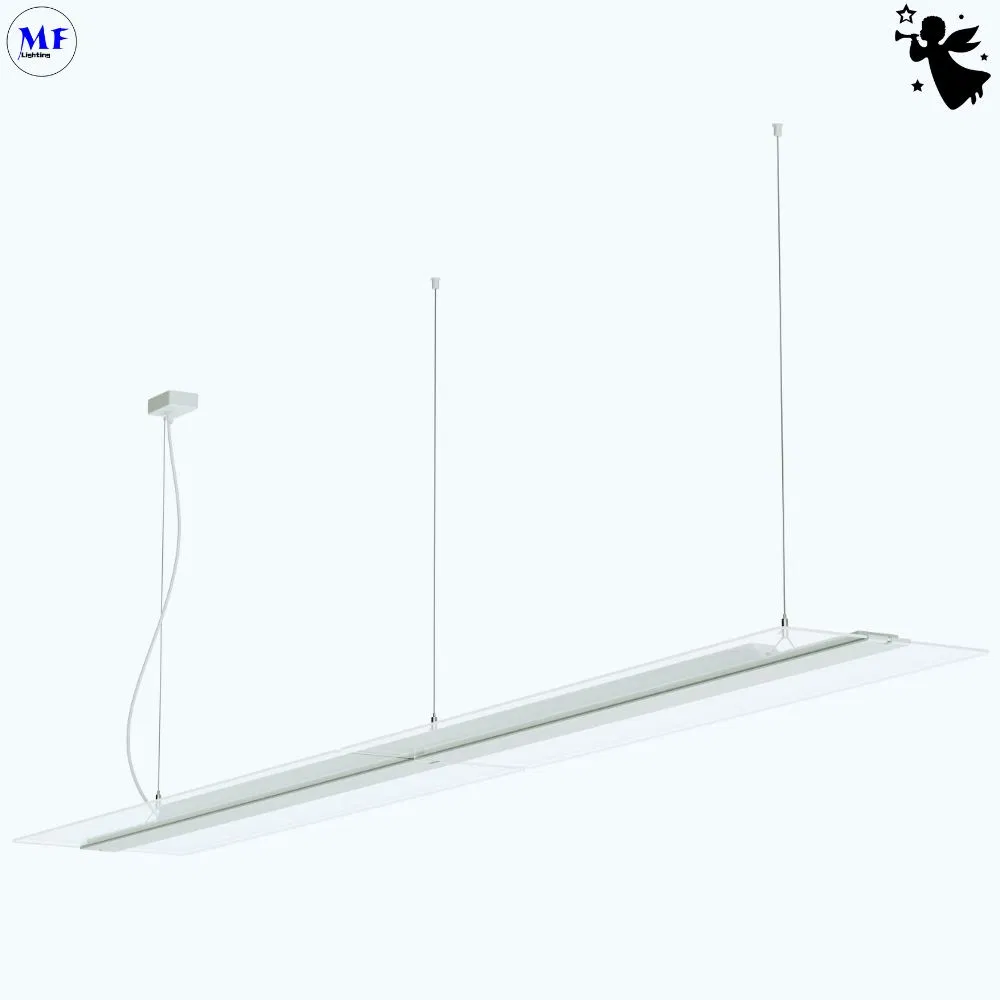

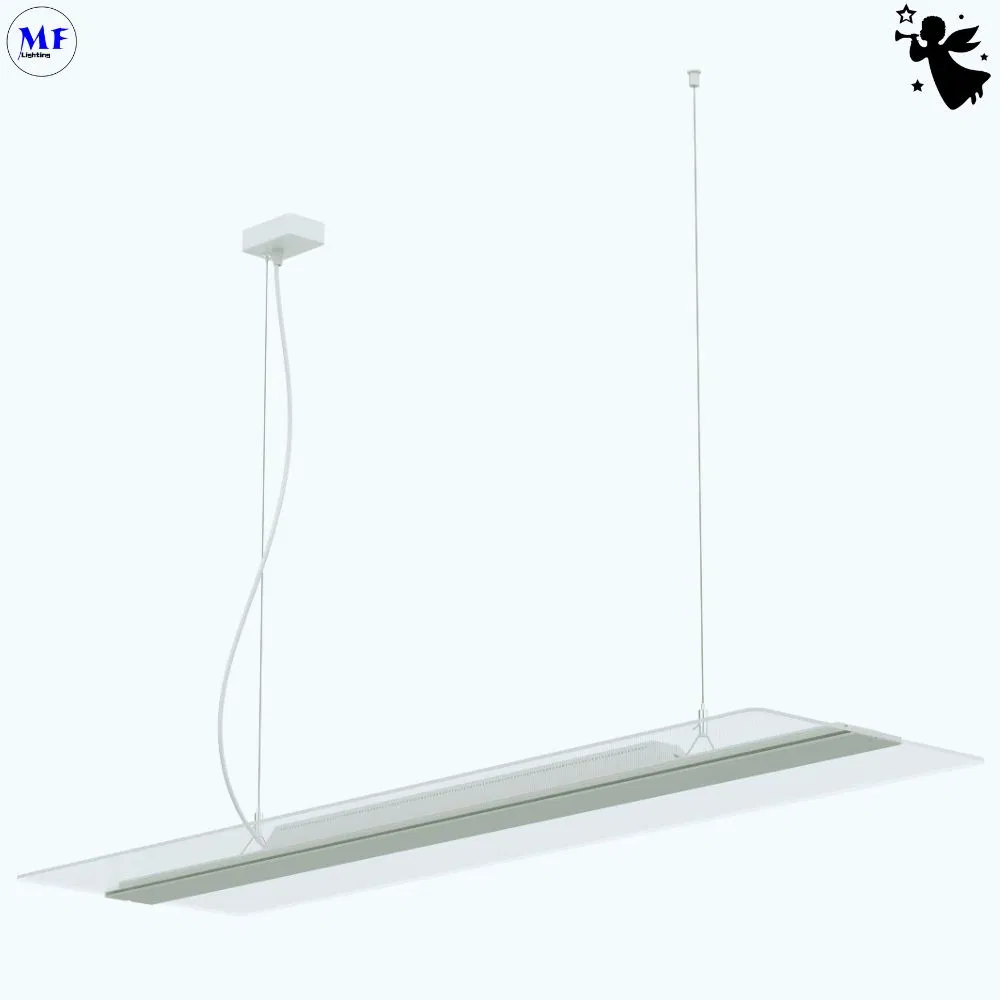

Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
1 / 5
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel
Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel

Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures Transparent Pendant Light for Offices / Classrooms / Hotel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
MF-ID120050-840-2
Emitting Color
White
Dimmable
With Dimmable
Appearance
Square
Type
Ceiling
Certification
CE, RoHS, ISO9001, SAA, CCC, VDE
Voltage
200-240V
Beam Angle
120°
Luminous Efficacy
120lm/W
Warranty Period
3 Years
Lifespan
30,000hrs
PF
>0.95
Power Efficiency
92%
Lens Material
PMMA+ Aluminium
CRI
80+
IP Rate
IP20
Product Description

Edge Lit Flame-Retardant Anti Glare Dimmable Commercial Lighting LED Ceiling Panel Light Fixtures. This transparent pendant light is ideal for professional environments including offices, classrooms, and luxury hotels.

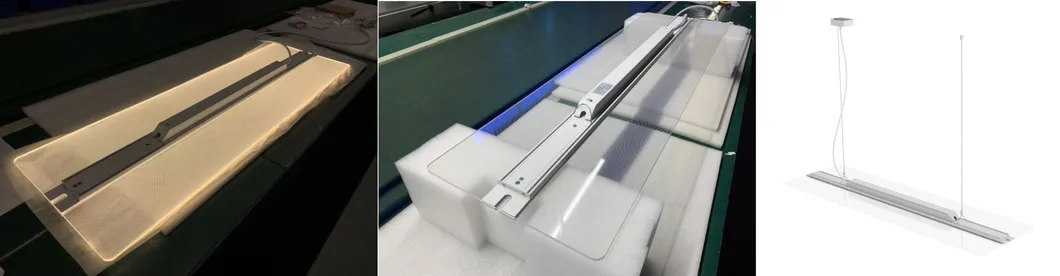

LED Ceiling Panel Overview
Key Features
◈ Finish: White (RAL9016), Black (RAL9005), Silver (RAL9006)
◈ Material: PMMA light guide panel, powder coated aluminium case
◈ Dimension: 1200mm / 1500mm Length options
◈ Distribution: Indirect/Direct lighting
◈ Light Source: LED, 3000K / 4000K / 5000K options
◈ UGR: <22 for superior eye comfort
◈ Dimming: Non-dim / DALI / 1-10V options
◈ Lifetime: 50,000Hrs L80 B10

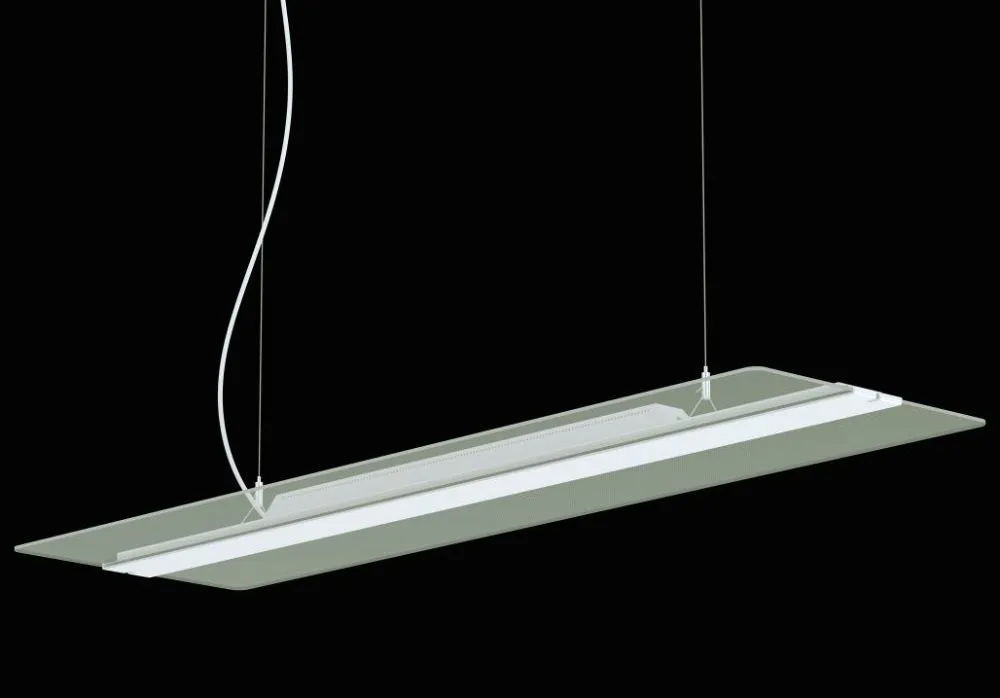

Product Feature Image 1

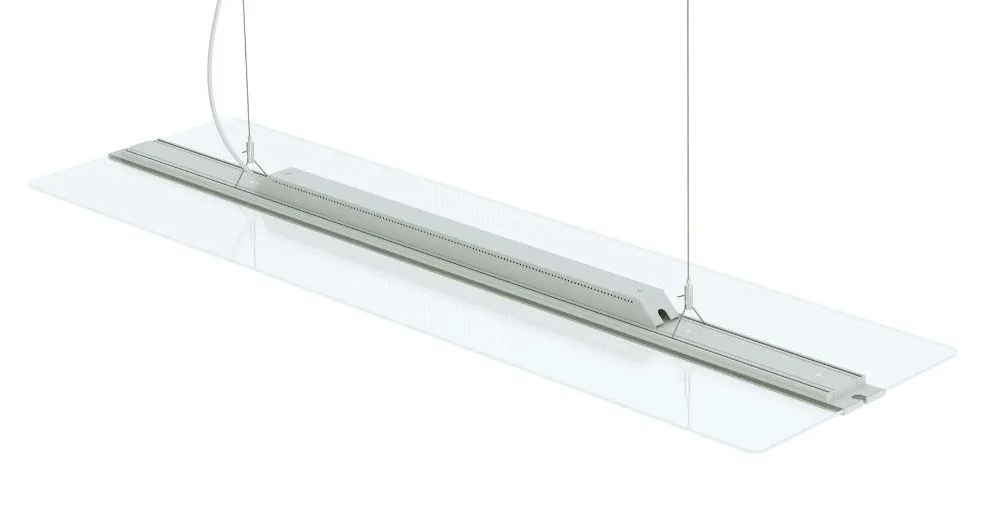

Product Feature Image 2

🛡️ Fire-Resistance Technology

The troffer frame is engineered from specialized plastic materials mixed with flame-retardant components. This design prevents the spread of flames. Tests confirm superior fireproof performance, ensuring maximum safety in commercial installations.

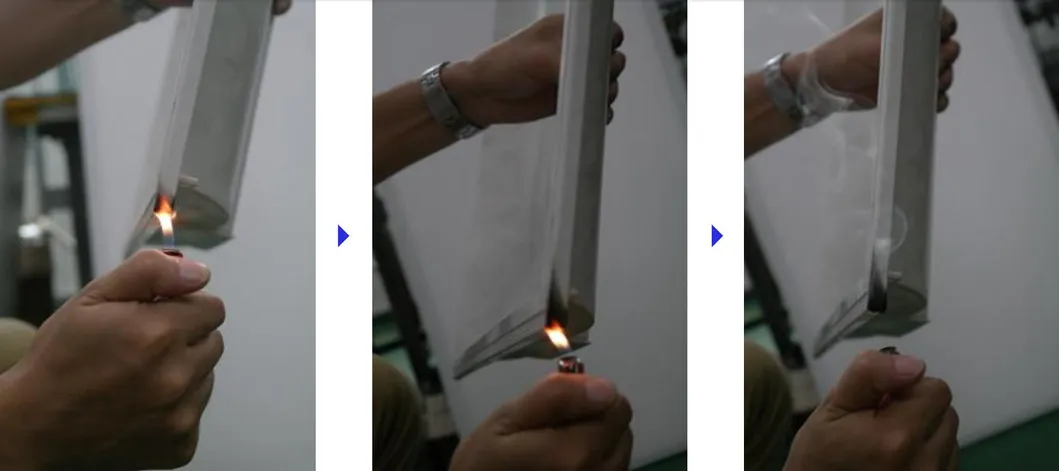

Fire Resistance Test
Technical Specifications
Dia. Model Power Lumen Efficacy CCT CRI Dimming
1200mm MF-ID120050-840-1 50W 6000LM 120LM/W 3000-5000K 80/90 Non
MF-ID120050-840-2 50W 6000LM 120LM/W 3000-5000K 80/90 DALI
1500mm MF-ID150075-840-1 75W 7500LM 100LM/W 3000-5000K 80/90 Non
MF-ID150075-840-2 75W 7500LM 100LM/W 3000-5000K 80/90 DALI
Detailed Photos

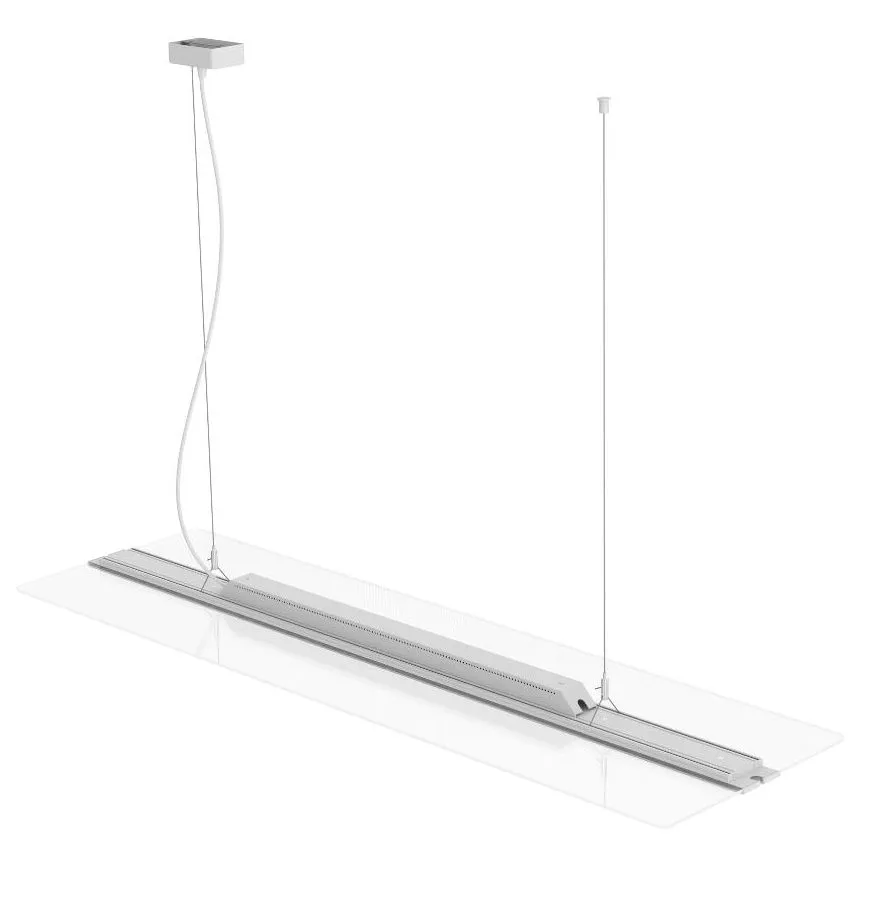

Detail 1

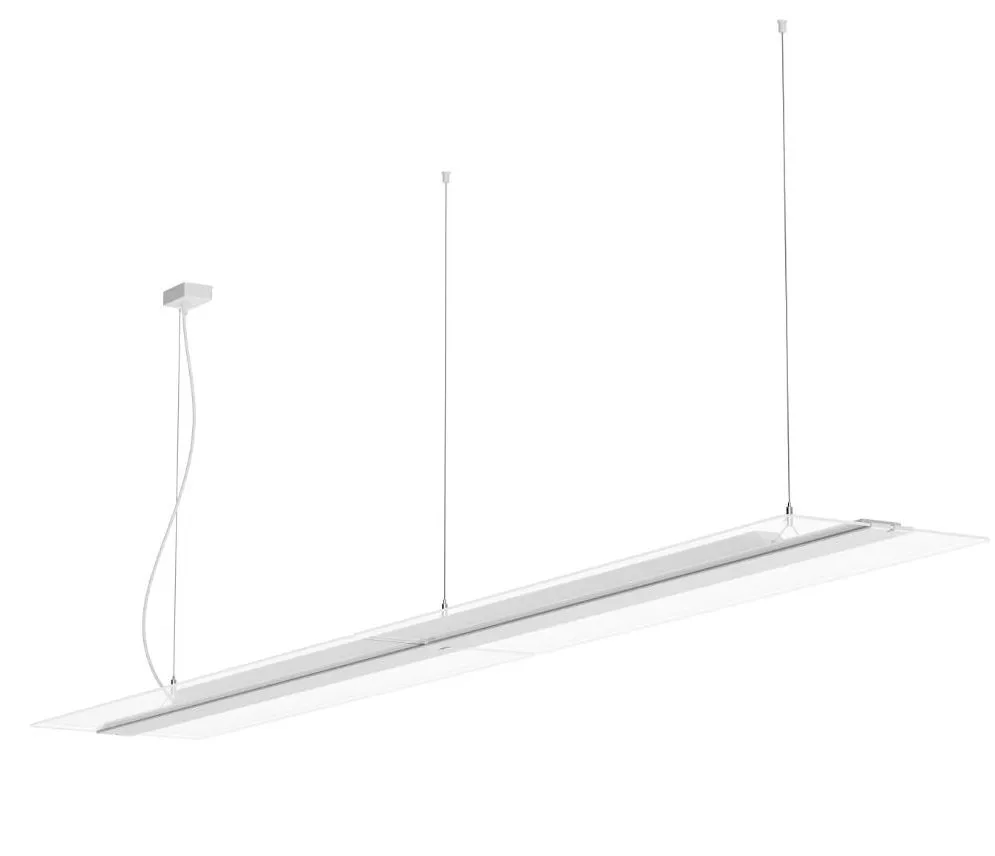

Detail 2

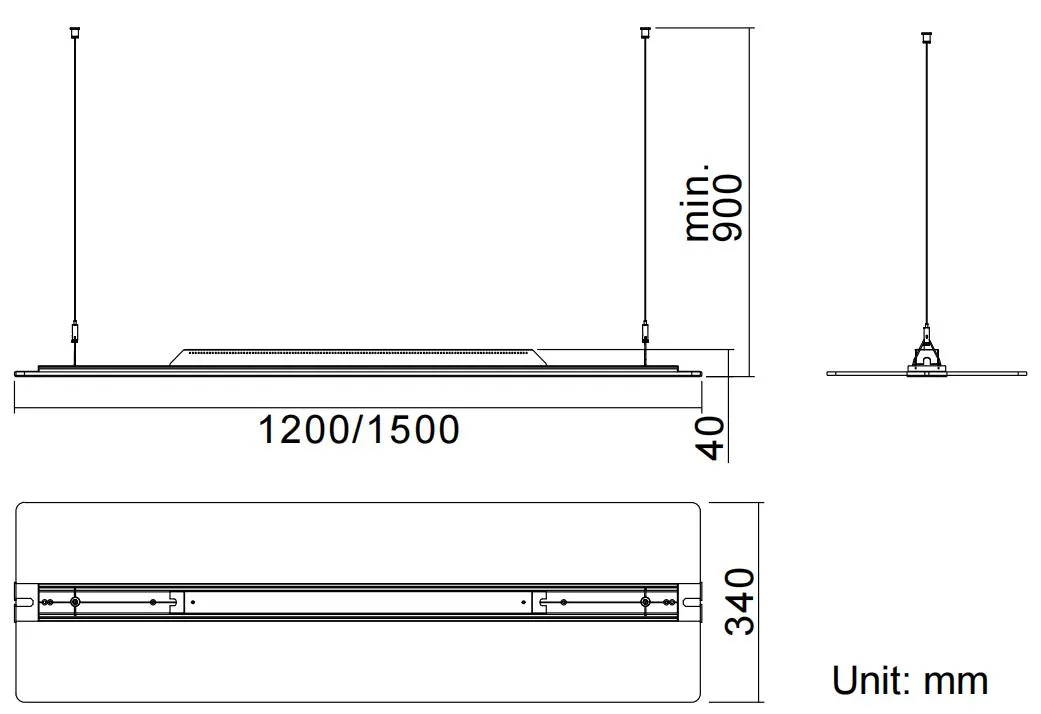

Detail 3
Parameters 1

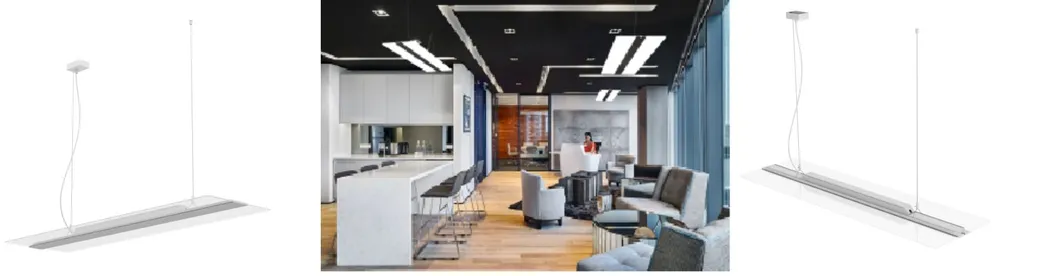

Parameters 2
Applications

Ideal for: Offices, Classrooms, Shopping Malls, Hotels, Lobbies, Back of House, Restaurants, Bus Stations, and Medical Facilities.

Shipment & Logistics
Logistics 1
Logistics 2
Logistics 3
Frequently Asked Questions
What is the lifespan of these LED ceiling panels?
These lights are designed for longevity, with a rated lifespan of 30,000 to 50,000 hours (L80 B10), ensuring years of maintenance-free operation.
Are the light fixtures dimmable?
Yes, we offer multiple dimming options including Non-dimmable, DALI, and 0-10V configurations to suit your control system.
What does UGR < 22 mean for my office?
UGR stands for Unified Glare Rating. A rating under 22 means the light is designed to minimize glare, reducing eye strain and improving comfort in workspaces.
Is the product fire-resistant?
Absolutely. The troffer frame is made of fire-retardant materials that effectively block flames from spreading, meeting strict safety standards.
What color temperatures (CCT) are available?
Standard options include 3000K (Warm White), 4000K (Natural White), and 5000K (Cool White).
What certifications do these lights hold?
Our fixtures are fully certified with CE, RoHS, ISO9001, SAA, CCC, and VDE markings for global compliance.
