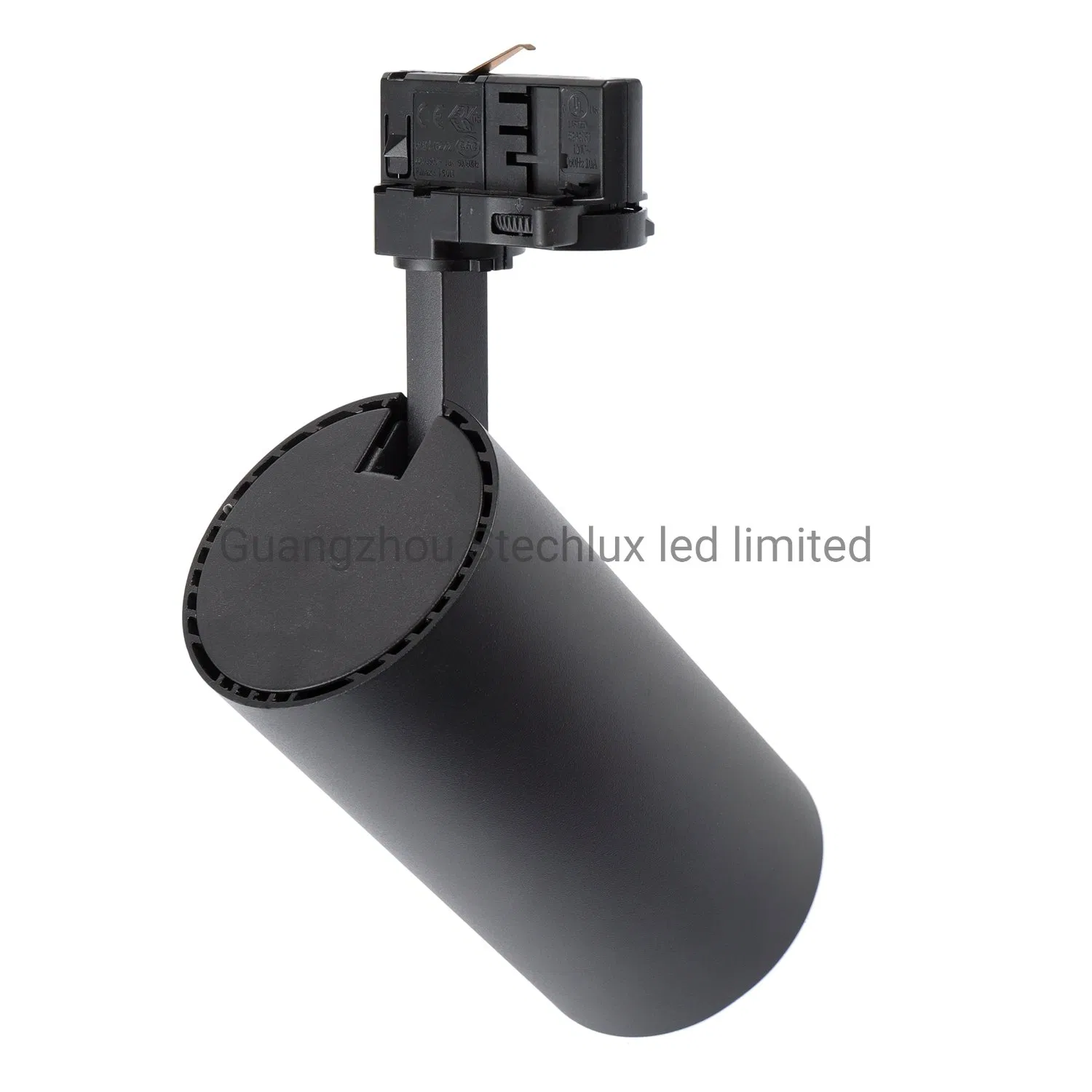

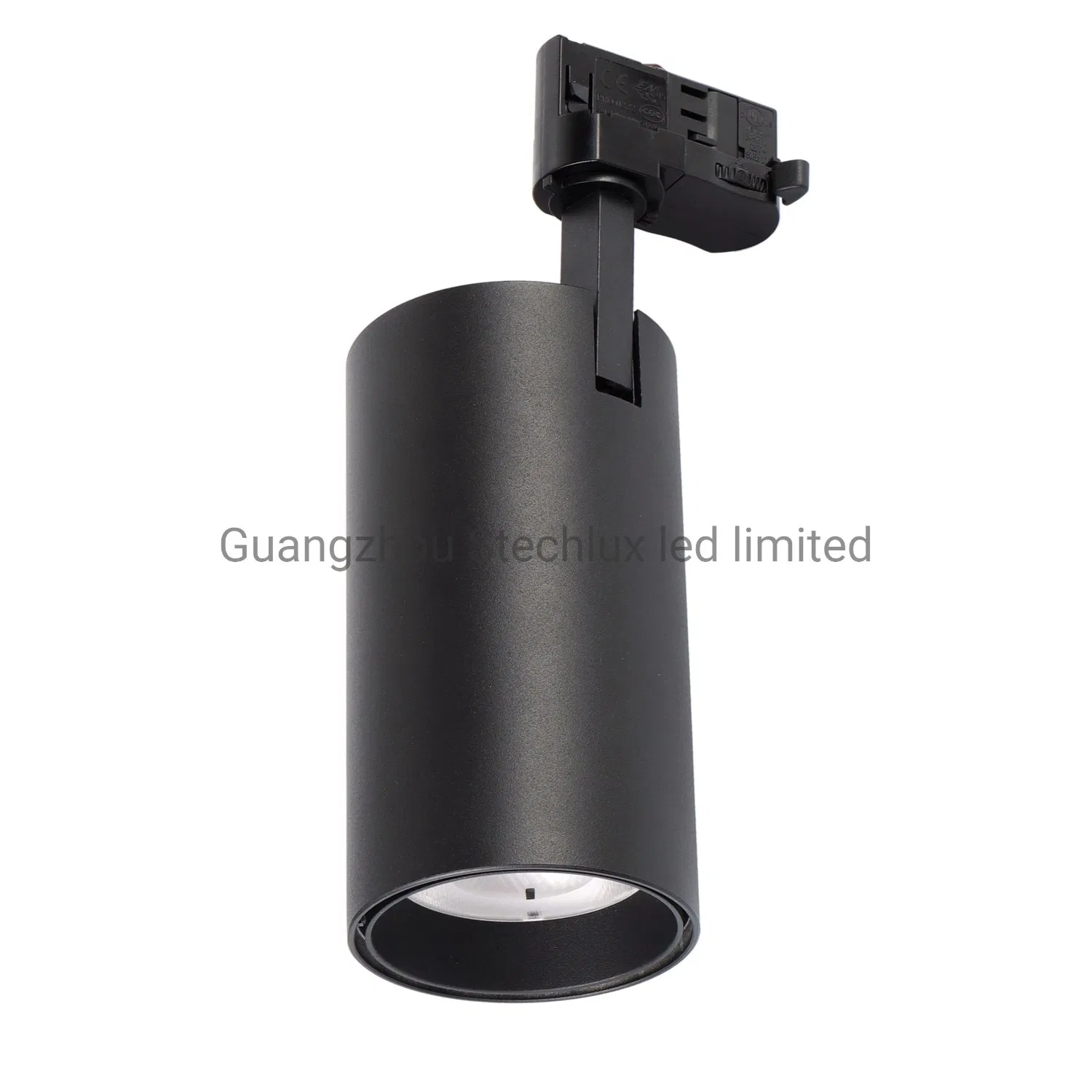

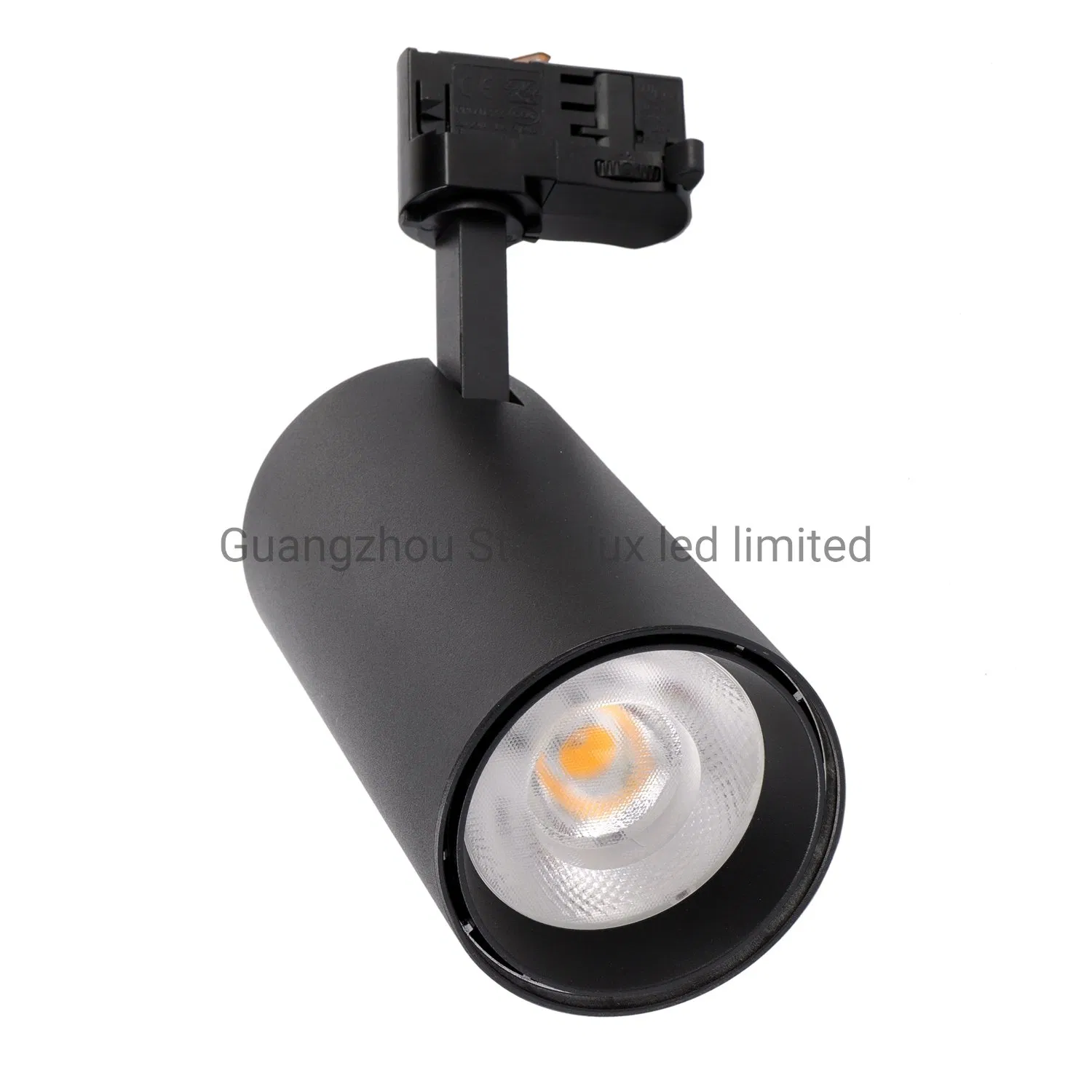

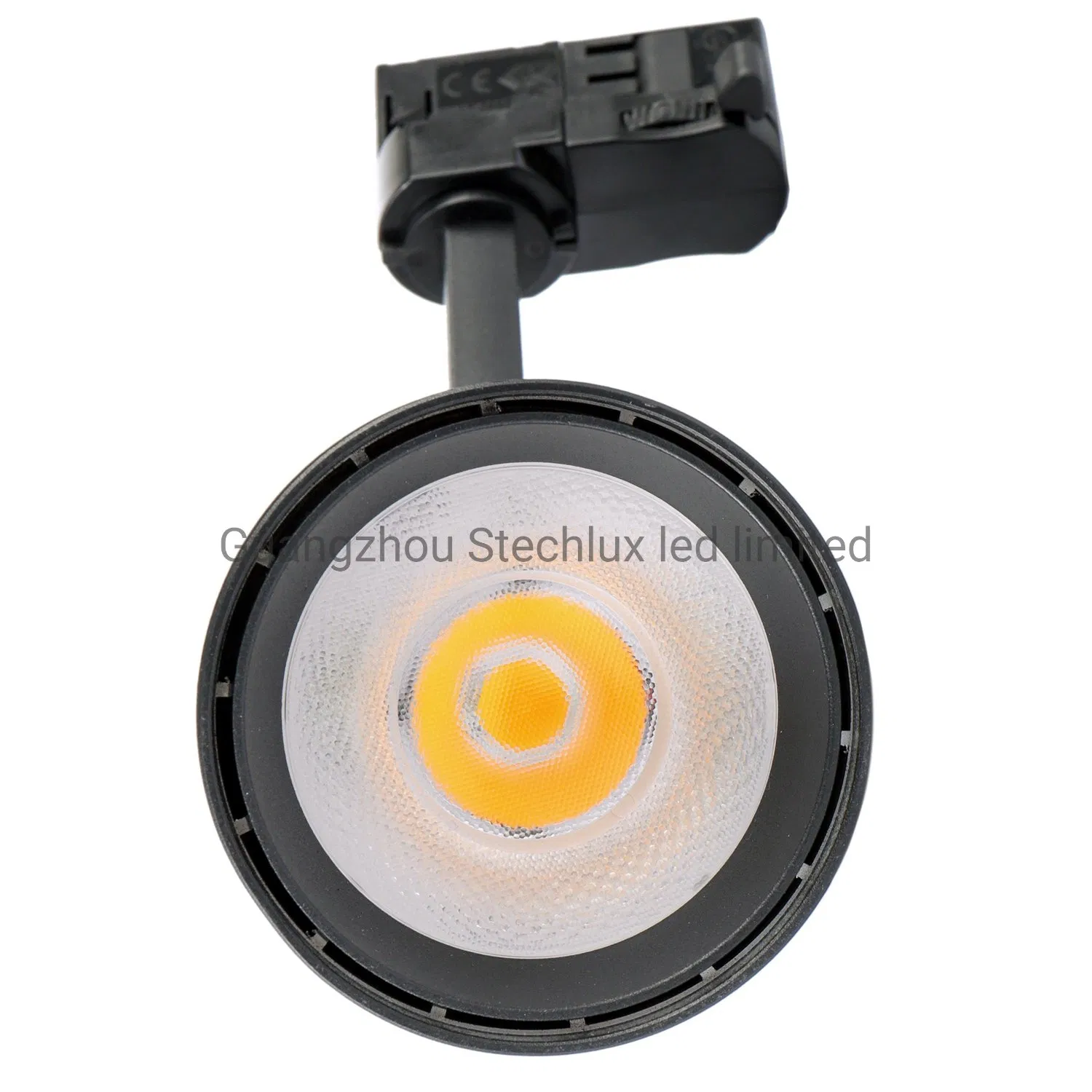

Indoor Commercial Retail Lighting Track Spotlight 3 Phase Track Mounted Spotlight LED Tracklight

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
ST-T1004
Power
11-15W
Emitting Color
2700K-6000K
Base Type
Track Rail
Wire
3/4/6 Wires
IP Rating
IP33
Certification
CE, EMC, LVD, RoHS
LED Chips
Citizen / Luminus / CREE
CRI
90 / 95 / 97
Beam Angle
15° / 24° / 36° / 50°

Product Description

This Indoor Commercial Retail Lighting Track Spotlight features a built-in driver, creating an incredibly compact and sleek profile. Unlike standard built-in driver track lights that often struggle with heat, this model utilizes a specialized high-performance driver designed for thermal resistance. This ensures a long lifespan of 50,000 hours and a reliable 5-year warranty.

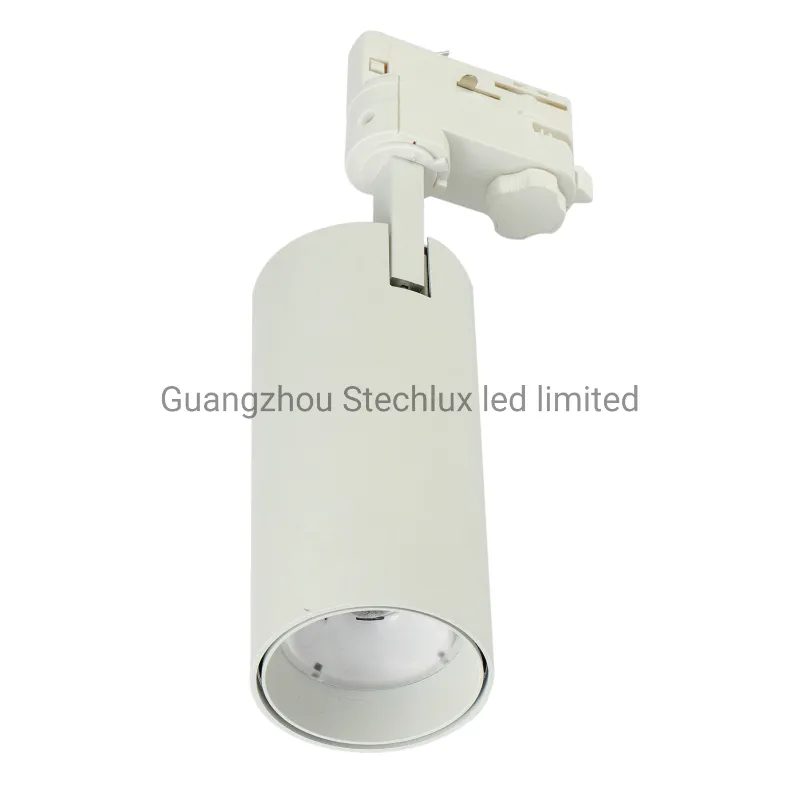

Track Mounted Spotlight

Technical Specification

Parameter ST-T1004 ST-T2004 ST-T3004
Power (W)10W20W30W
Lumen Output1000-1200lm1900-2200lm3300-3800lm
Size65*130mm75*160mm85*160mm
LED BrandCitizen / Luminus / CREE
Color ConsistencySDCM < 3
DimmingNon-dim / Triac / 0-10V / DALI
MaterialCold forging #1070 Aluminum
• DALI dimming is available with 4-wire and 6-wire systems.

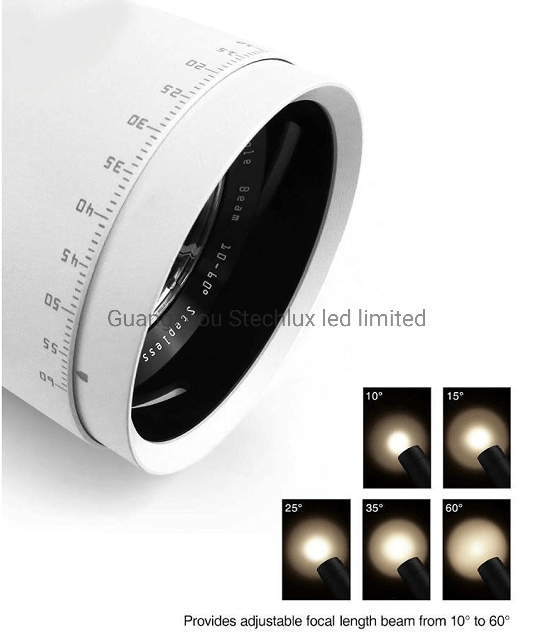

• Zoomable beam angles (15-60°) and Tunable CCT via DIP switch are optional.

Key Advantages

1. Cold Forging Aluminum #1070

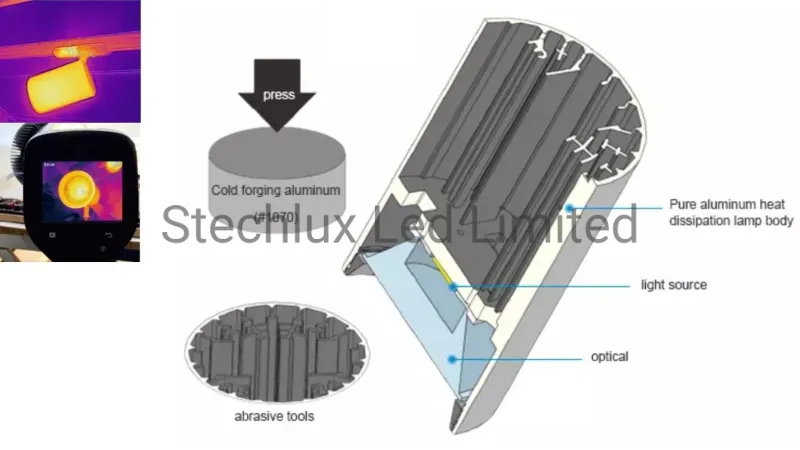

The heatsink utilizes pure #1070 aluminum. Cold forging technology provides 30% better cooling than #6063 profile aluminum and is 2 times more efficient than standard die-casting aluminum.

Heat Dissipation Technology

2. Premium High-CRI LED Chips

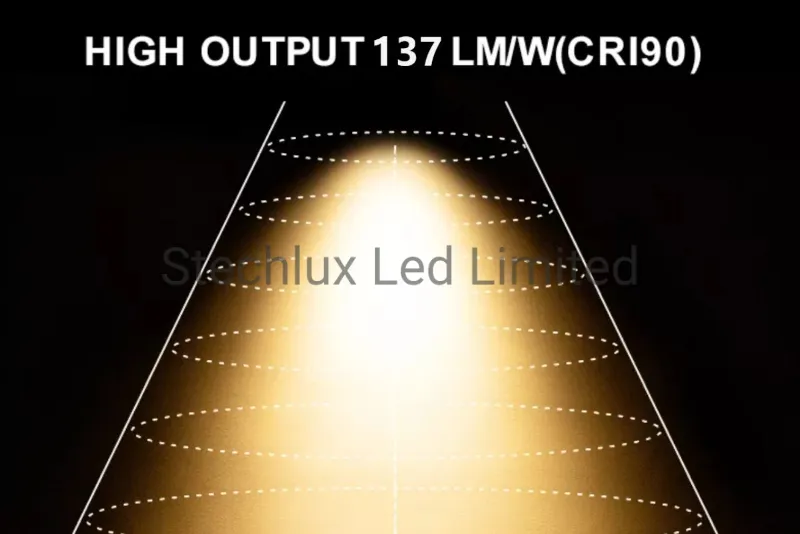

Equipped with original Citizen or Luminus COB chips. These chips provide high luminous efficiency (up to 137lm/W) and exceptional color rendering (CRI 90/95/97) to restore true colors in retail environments.

CRI Comparison
LED Chip Quality

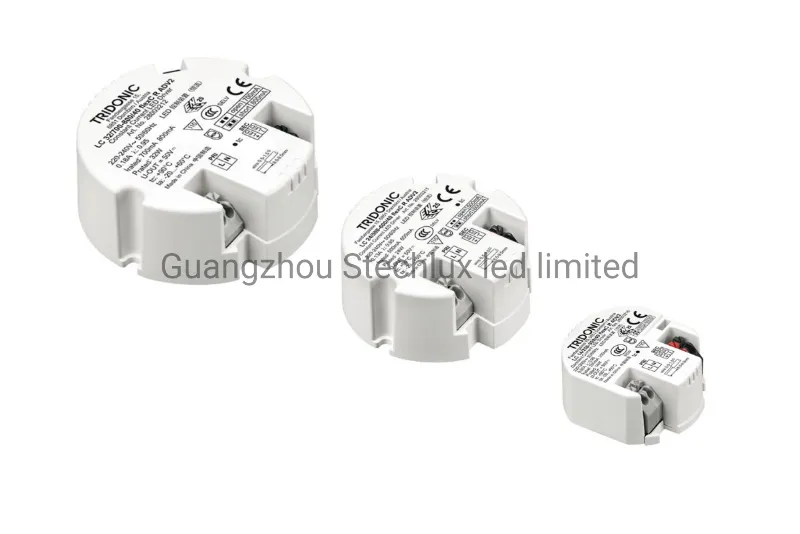

3. High-Temperature Resistant Driver

The driver is built-in and uses a glued-type design for maximum heat resistance (Tc > 90ºC). It features PF > 0.95 and is flicker-free for eye comfort. Optional brands include Tridonic, Lifud, Boke, and HEP.

Quality Driver

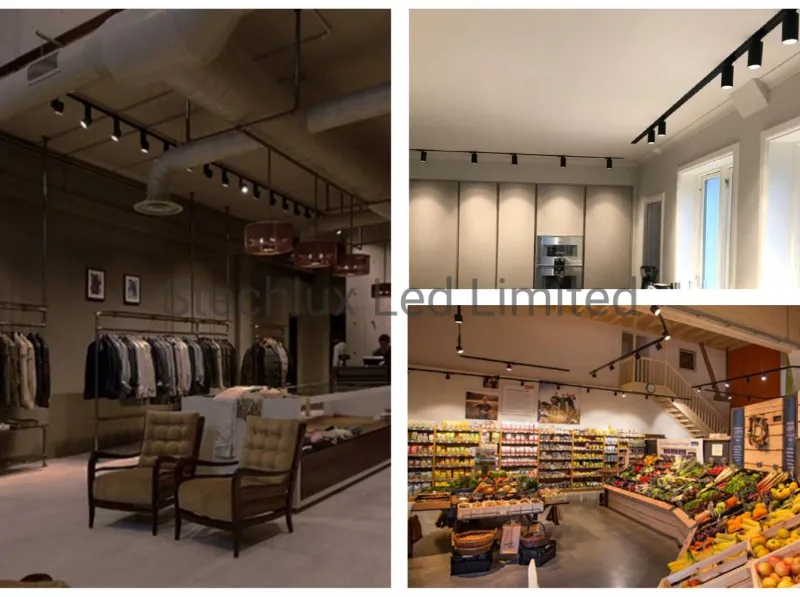

Application Showcase

Perfectly suited for commercial retail spaces, high-end hotels, galleries, and luxury residential projects, providing comfortable and healthy accent lighting.

Retail Lighting Application
?

Frequently Asked Questions

Can I request a sample for quality testing?
Yes, we welcome sample orders to check product quality. Mixed samples are acceptable, and we can provide 1pc for checking.
What is the typical lead time for orders?
Samples usually take 3-5 days. For formal bulk orders, the lead time is approximately 7-15 days.
Is it possible to customize the product with my logo?
Yes, please provide your logo file in an editable format and inform us before production begins.
What kind of warranty is provided?
We offer a 3-5 year warranty on our products. During this period, we are responsible for maintenance or providing replacements for any defective units.
How are the goods shipped and how long does it take?
We typically ship via express carriers like DHL or FedEx, which takes 3-5 days. Air, sea, and rail shipping options are also available.
How do I begin the ordering process?
Select the products suitable for your project and send an inquiry. If you have specific requirements not found on the site, please email us directly with details.
