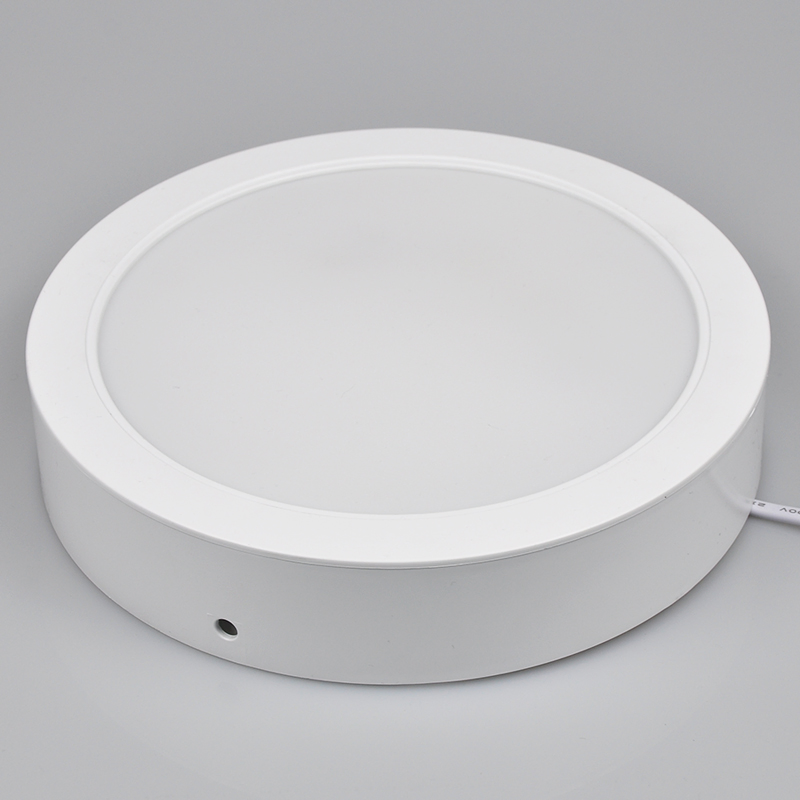

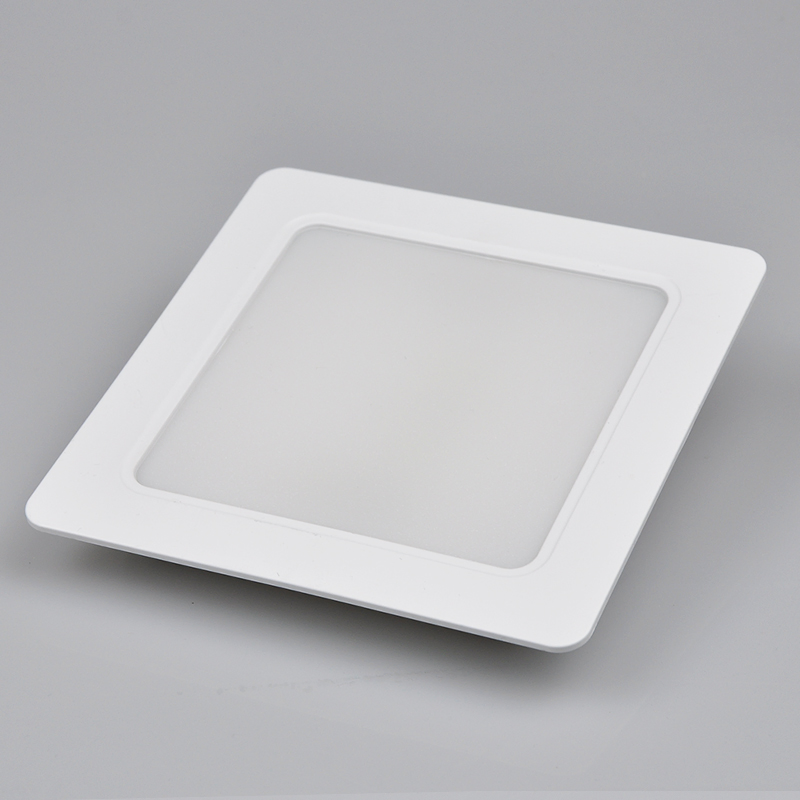

CE RoHS 6W 9W 12W 18W Ultra Slim Dimmable Round Flat LED Panel Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.

Model NO.
SLPL12R
Emitting Color
White
Dimmable
Without Dimmable
Appearance
Round
Type
Recessed
Base Material
Plastic
Certification
CE, RoHS, SAA
Voltage
100-240V
Beam Angle
120°
LED Chip
High Quality SMD
Item Type
Corn Lights
LED Light Source
SMD2835
Warranty(Years)
3
Input Voltage(V)
85-265V
Power
12W
Usage
Commercial, Home
HS Code
94054090
Production Capacity
50000PCS/Month

Product Description

CE RoHs 6W 9W 12W 18W Ultra Slim Dimmable Round Flat LED Panel Light

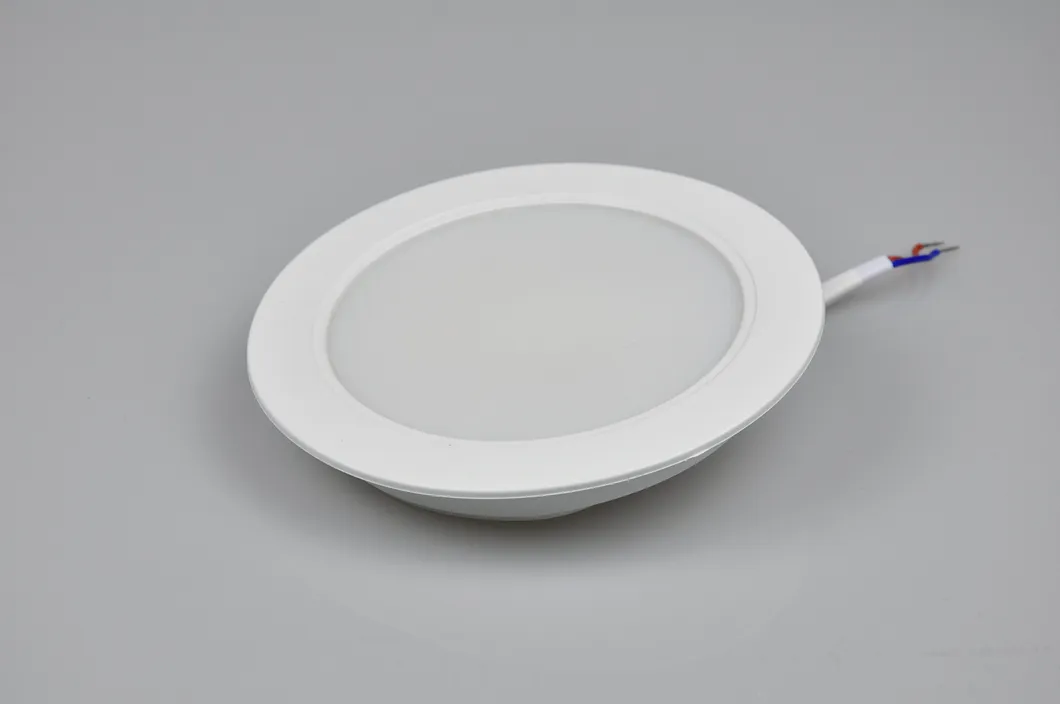

LED Panel Light Detail 1

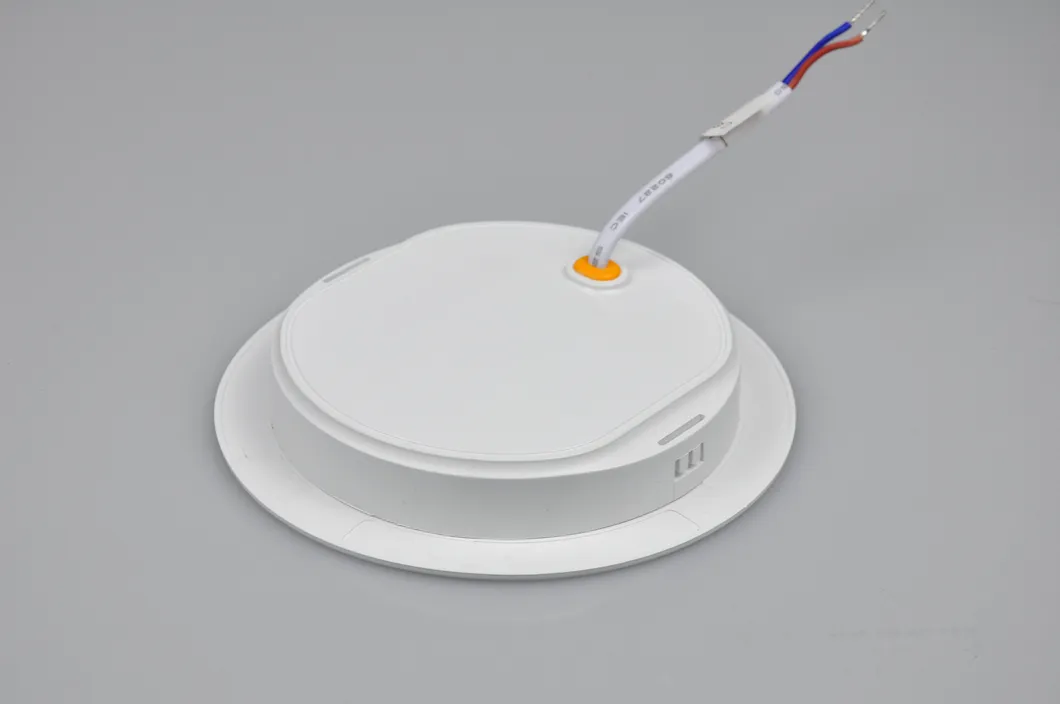

LED Panel Light Detail 2

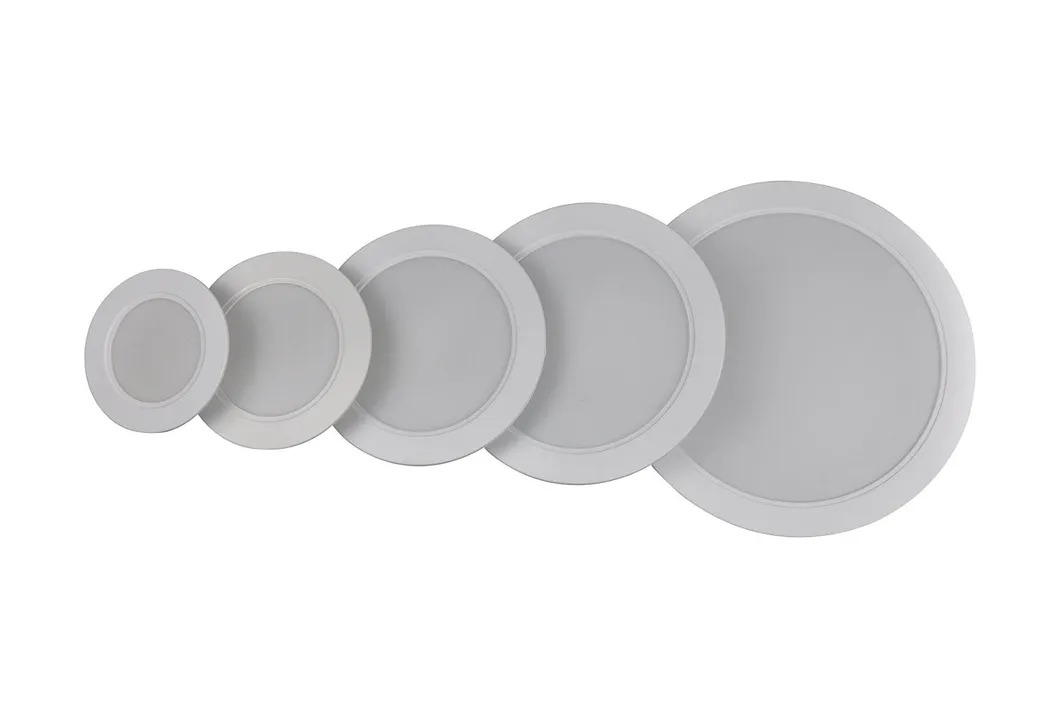

LED Panel Light Detail 3

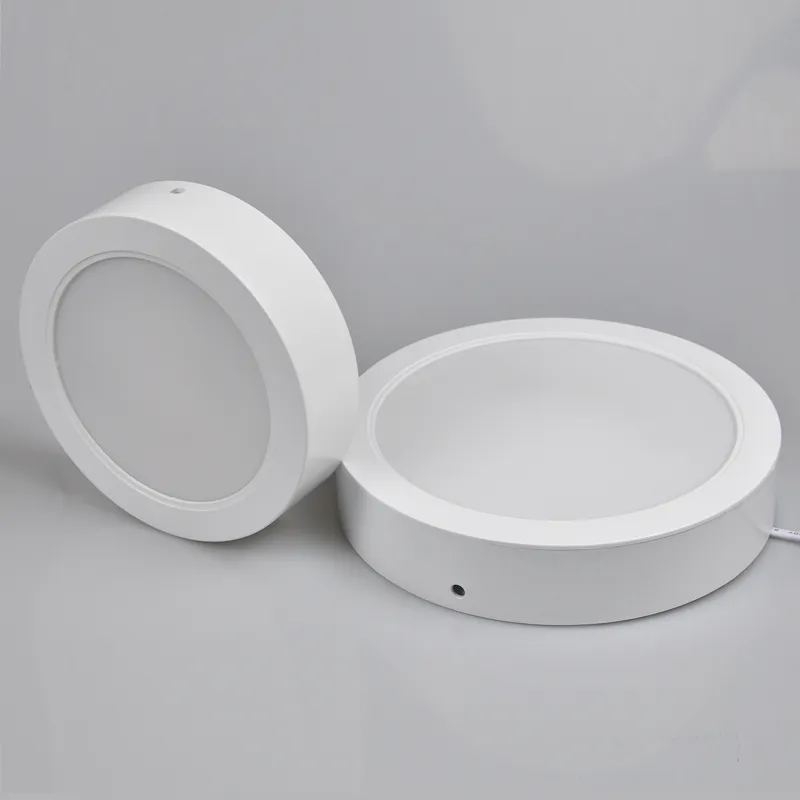

LED Panel Light Feature 1

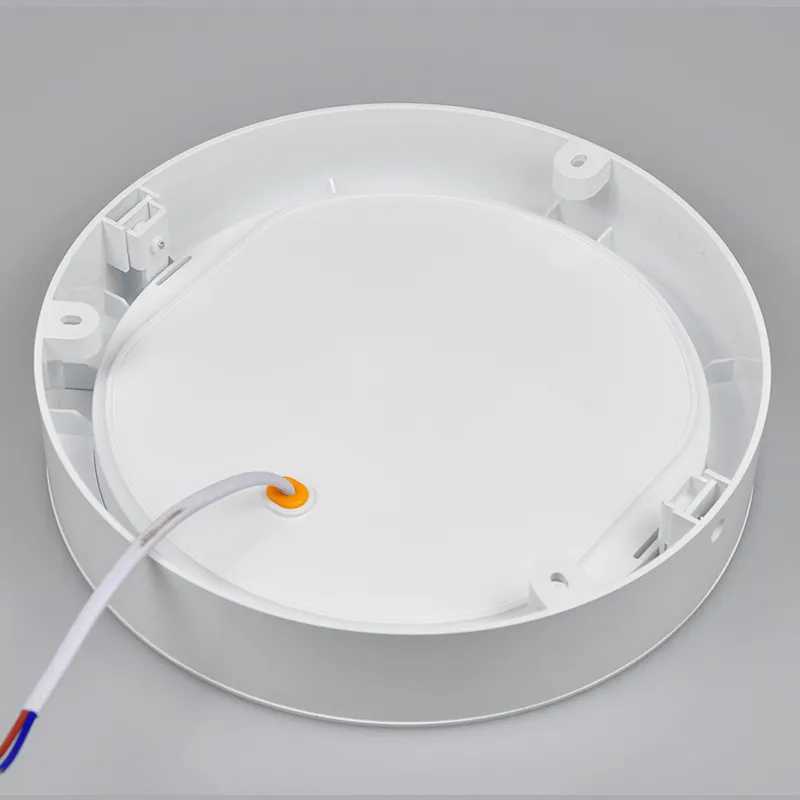

LED Panel Light Feature 2

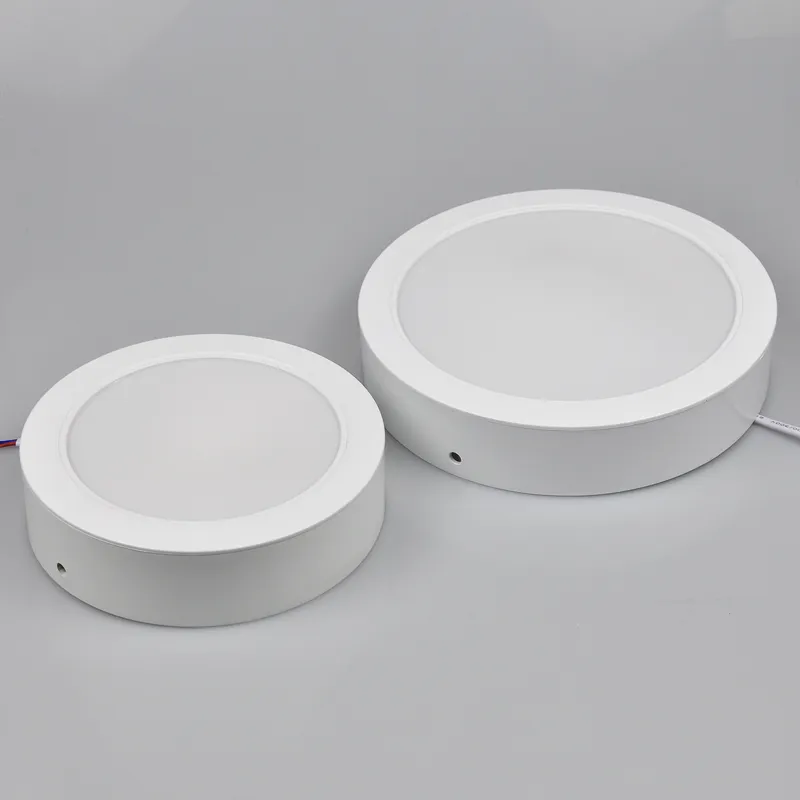

LED Panel Light Feature 3

A. Outer ring: GB 12# environmental-friendly aluminum is adopted and is overall die-cast to take shape, with beautiful structural design.

B. Diffuser plate: PS material from Japan Mitsubishi is used. The 1.5mm ultrathin diffuser plate has a light transmittance of up to 92%, and gentle light diffusion can effectively reduce fatigue and create the light environment.

C. Light guider: Using Mitsubishi material, thickness 4mm with high precision laser dot, make the light even and comfortable, no dark space, can effectively protect the eyes.

D. Reflective sheeting (round and fan-shape): The HP LCD TV backlight reflective sheeting has superstrong light reflection, with thickness of 0.25mm-0.55mm.

E. Placed cushions: The soft polyurethane foam rubber, sealing, good elastic memory, high temperature resistant, fire retardant, effectively fixed lamp body internal optical components.

F. Rear cover: 0.8mm iron back cover, dumb white, fine Elizabeth Barbara ohm two kind of spraying process, spray evenly overall sense.

G. Driver: Low-voltage constant-current intelligent IC driver is used, which is of integrated design and make of the imported PC material, with dust prevention, compression resistance and high temperature resistance. Ambient temperature for working: -20°C-85°C.

Driver details

LED Panel Light Specification

Power
18W
Chip
SMD2835
Voltage
AC85V-265V
Life Time
>50,000 hours
CRI(Ra)
>70
LM/W
70LM-75LM/W
Warranty
2 years
PF
>0.9

Product Features

  • Lifespan: More than 50,000H.
  • Flicker-Free Lighting: Eliminate eye strain and headaches.
  • Energy-saving: Saving 80% than the ordinary lamp.
  • Green and health protection: No pollution, more comfortable for vision.
  • High Quality SMD2835 LED source: High brightness and less heat.
  • Extreme Efficiency: Over 75% more efficient than incandescent lighting.
  • Reliable protection: Free from over-current, over-voltage, and short-circuit risks.
  • Environmentally friendly: No Mercury, No UV, No IR.

Parameter List

Item Watt Housing size (mm) Opening(mm) LED Qty Voltage
SLPL03R3W90x9075x75SMD2835*15AC85-265V
SLPL06R6W120x120105x105SMD2835*30
SLPL09R9W150x150135x135SMD2835*45
SLPL12R12W174x174160x160SMD2835*60
SLPL15R15W200x200185x185SMD2835*75
SLPL18R18W225x225210x210SMD2835*90
SLPL24R24W300x300250x250SMD2835*120

Application Area

Hotels
Conference/Meeting rooms
Factories & Offices
Commercial Purposes
Residential / Institution buildings
Schools, Colleges & Universities
Hospitals

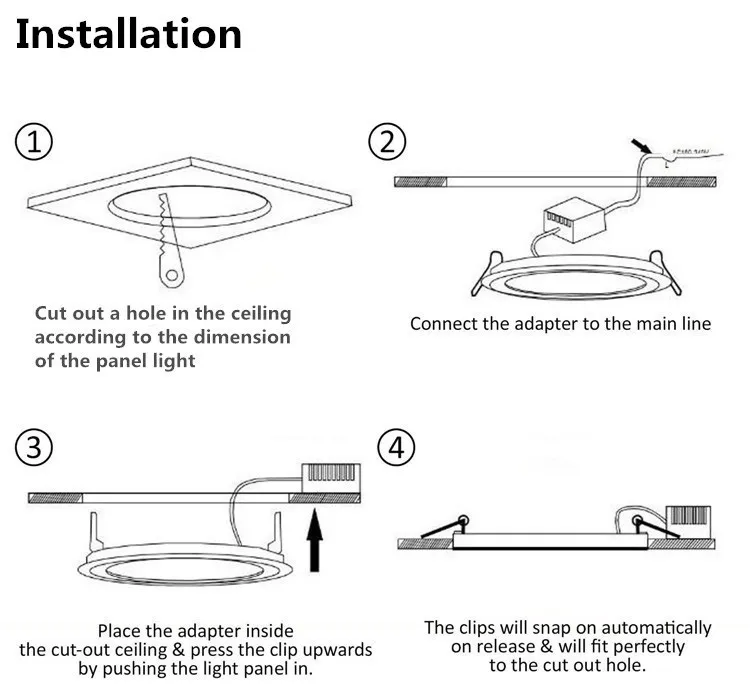

Installation Instructions

  1. This product is limited to indoor use.
  2. Hole size of the ceiling should be the same as the lamp's cutout size.
  3. Connect the DC connectors with the lamp and driver.
  4. Insert the pinch to the ceiling, make sure it is fastened.

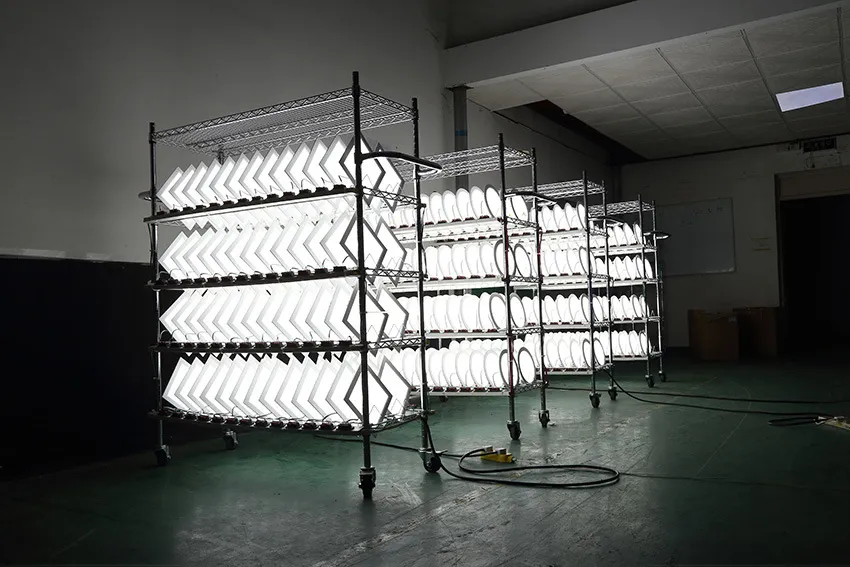

Installation Step 1

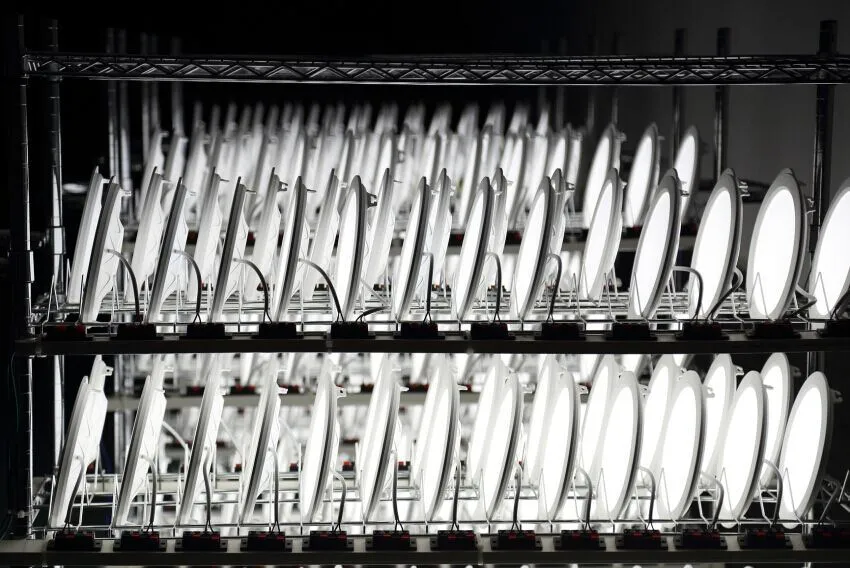

Installation Step 2

Frequently Asked Questions

What is the expected lifespan of this LED panel light?
The LED panel light is designed with high-quality SMD2835 chips and offers a lifespan of more than 50,000 hours.
Does the lighting flicker during use?
No, the light features flicker-free technology to eliminate eye strain and headaches, providing a comfortable visual environment.
Is this LED light energy efficient?
Yes, it is highly efficient, saving up to 80% more energy compared to ordinary lamps and over 75% compared to incandescent lighting.
What is the input voltage range supported?
The light supports a flexible wide voltage range of AC 85V to 265V, making it suitable for various regional power standards.
What certifications does the product have?
This product is certified with CE, RoHS, and SAA, ensuring it meets international safety and environmental standards.
What kind of warranty is provided?
The product comes with a reliable warranty of 2 to 3 years depending on the specific model and configuration.
