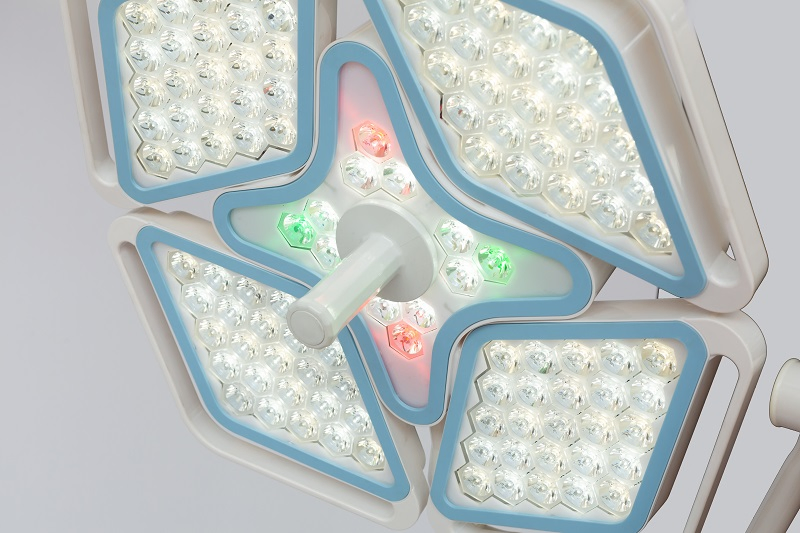

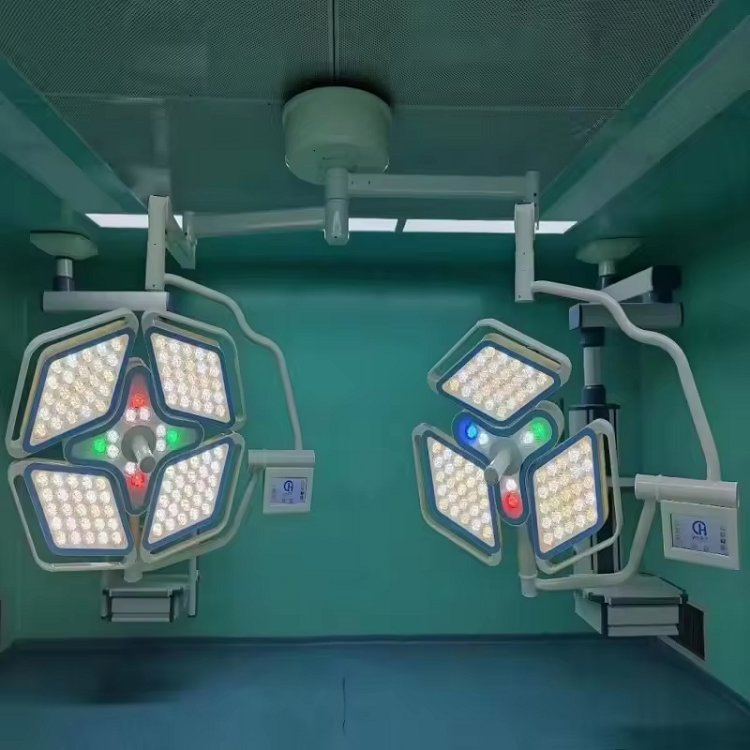

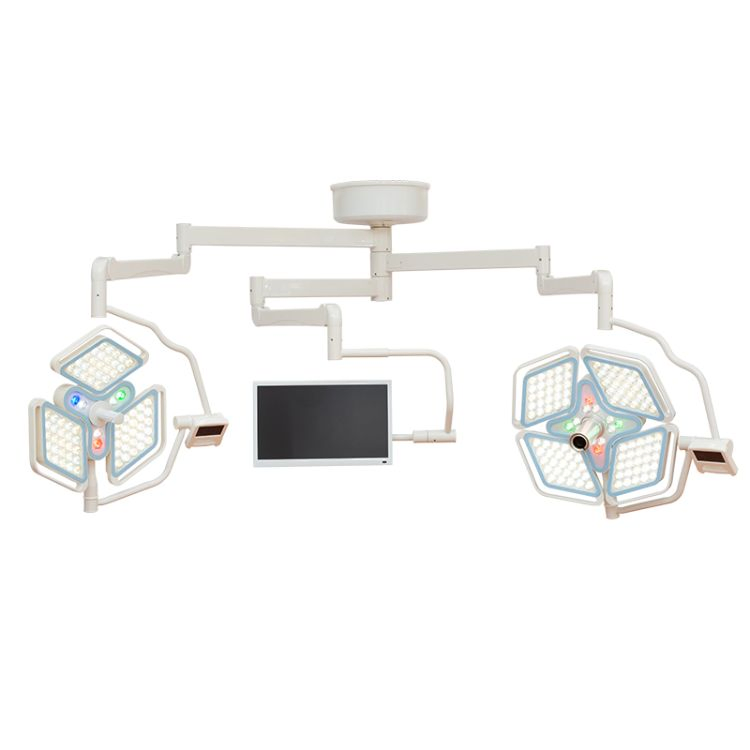

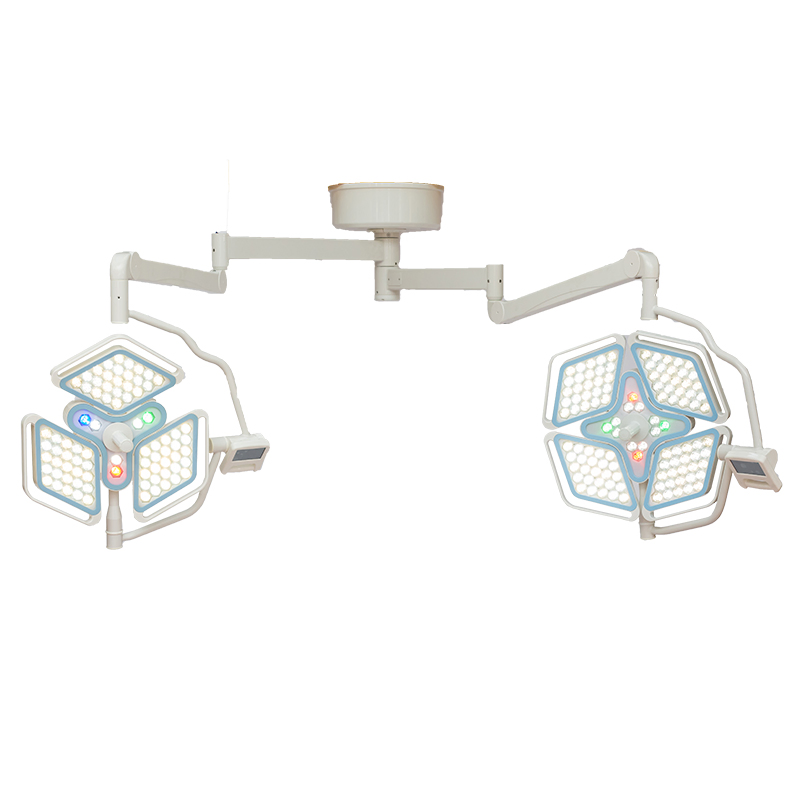

Petal Design LED Shadowless Hospital Ceiling Operating Lamp Electric Powered

Customization: Available
Type: Operating Light
Kind: Dental

Product Description

Basic Information
Model NO.LKLED700&500
CertificationCE, ISO13485, ISO9001
GroupAdult
LCD DisplayWith LCD Display
Illuminance (Lux)80,000-160,000 / 60,000
Color Temperature (K)3700-5500
Diameter of Light Spot (mm)T160-350
Color Rendering Index92
Transport PackagePacked in Standard Marine Wooden Cases
SpecificationL1250*W1200*H500mm
OriginChina
HS Code8539391000
Production Capacity20000PCS/Year
Operating Lamp Overview

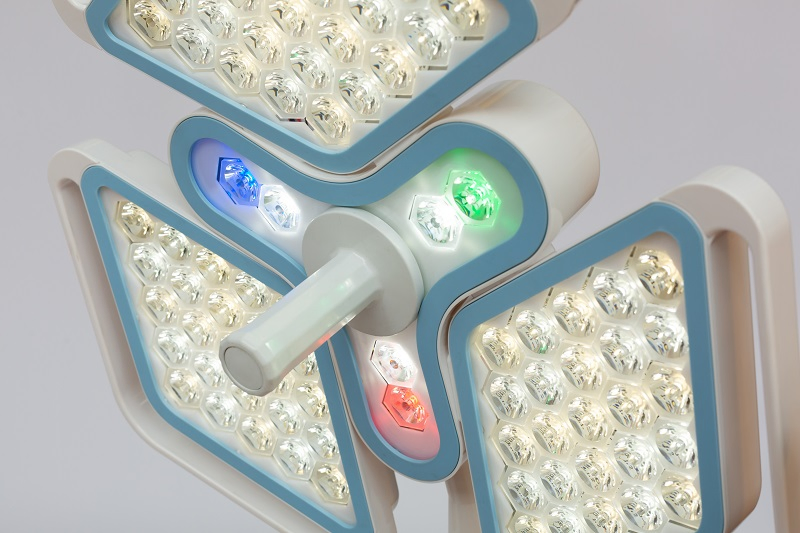

Detailed Photos

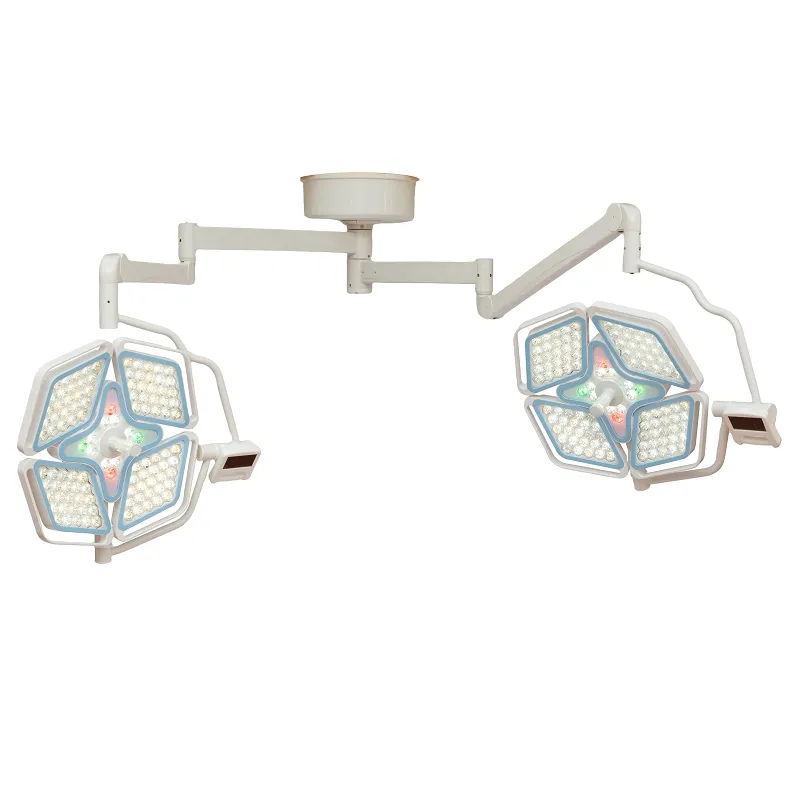

Operating Lamp Detail 1

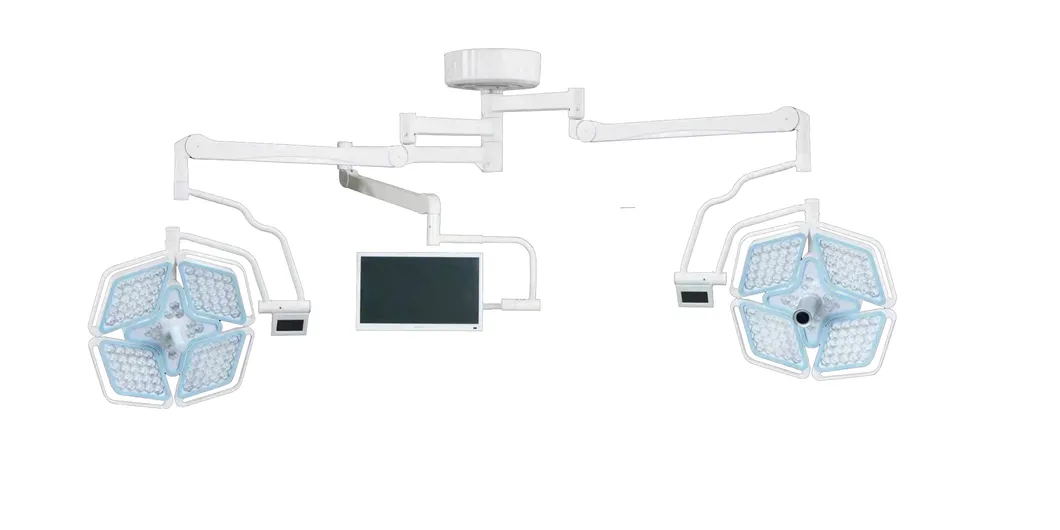

Operating Lamp Detail 2

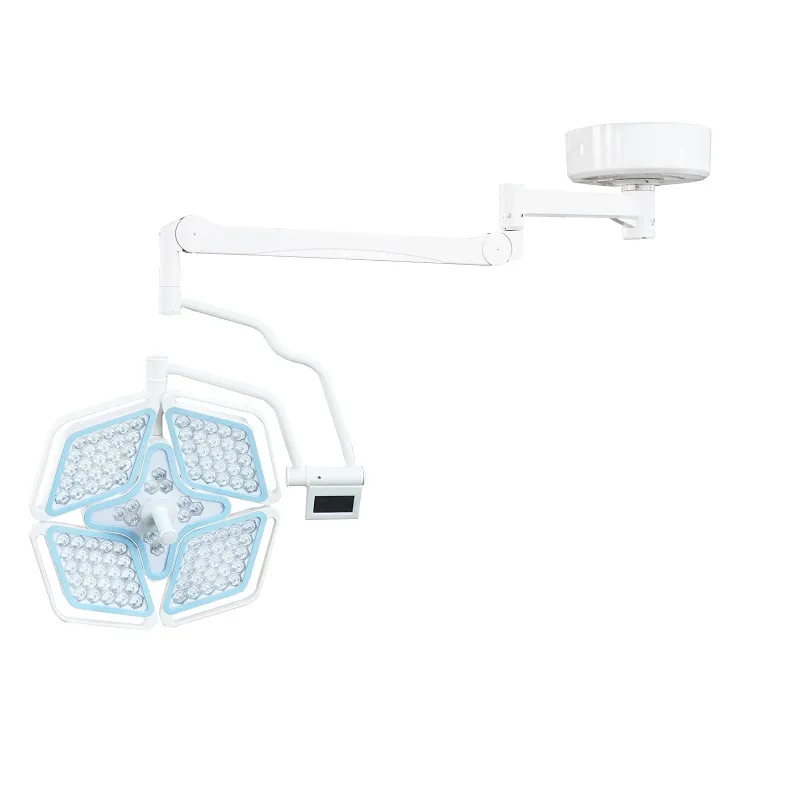

Operating Lamp Detail 3
Operating Lamp Detail 4
Product Parameters
SURGICAL SHADOWLESS LAMP LKLED700/500(4+3)
No. of LED beads112/81
Illuminance (Lux)80000-160000/60000-160000
Color temperature(K)3700-5000 adjustable
Diameter of light spot (mm)160-350
Color rendering index≥95
Lighting depth (mm)500-1800
Dimming systemContinuous dimming system
Temperature rise at head (C)≤1
Temperature rise at field area (C)≤2
Mains voltage220V/50Hz
Input power (VA)400
Optimum installation height3.2 m
Key Characteristics
Real Cold Light Source A novel LED cold light source is used, energy-saving and environmentally-friendly, with a service life of up to 60,000 hours. Head temperature rise is less than 1ºC.
Superior Shadow-free Effect Turning radius of lamp panel ≥182cm. The lamp head can be adjusted nearly vertical to the ground for multi-angle lighting.
Excellent Deep Lighting Focused illumination by multiple LED light beams enables depth illumination above 1200 mm with central illuminance up to 160,000 Lux.
Advanced Control System LCD button control for power, illuminance, and color temperature adjustment to meet various surgical requirements.
Universal Suspension System Octagonal rotating arm made of new alloy materials. The balance system provides precise positioning and wide adjustment range.

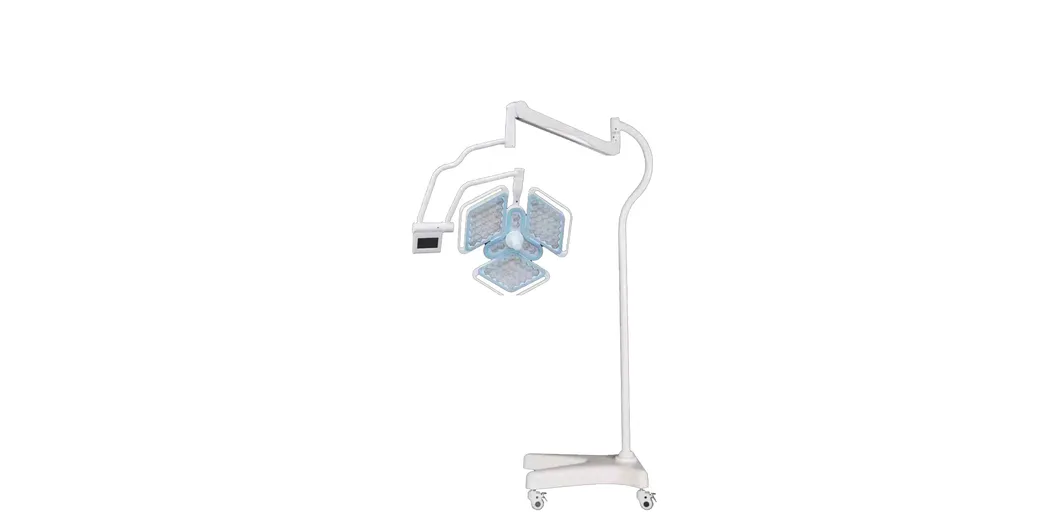

Functional Display
Certifications
Certification 1
Certification 2
Professional Manufacturing

As a professional medical equipment manufacturer, we hold international certifications including CE, ISO9001, and ISO13485. Our production base is equipped to manufacture high-quality operating lamps, operating tables, obstetric tables, medical pendants, and trolley series with over 20 years of experience. With dedicated R&D centers, we launch new products annually to meet the evolving needs of hospitals worldwide. Our products are exported to the United States, Europe, Southeast Asia, the Middle East, and South America.

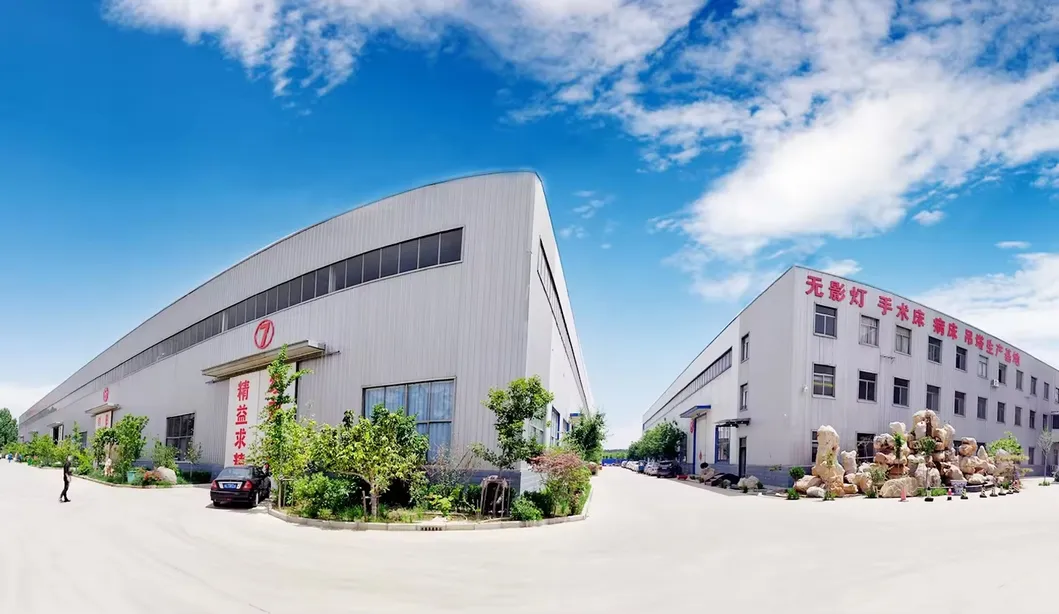

Factory Overview
Our Advantages
Advantage 1
Advantage 2
Quality Standard
Frequently Asked Questions
What is the expected service life of the LED light source?
The novel LED cold light source is designed for long-term durability, with a service life of up to 60,000 hours.
How does the shadowless effect perform during surgery?
The system uses a computer-aided modular design with multiple LED light beams and a large turning radius (≥182cm) to ensure superior shadow-free performance even in deep cavities.
Is the color temperature adjustable for different procedures?
Yes, the color temperature is adjustable between 3700K and 5000K, allowing it to closely mimic natural daylight for accurate tissue representation.
Does the lamp generate heat that could affect the surgeon?
No, it is a real cold light source. The temperature rise at the surgeon's head level is kept below 1ºC, ensuring a comfortable working environment.
What are the installation height requirements for this lamp?
The optimum installation height is 3.2 meters, with a minimum functional installation height of 2.8 meters.
What kind of control system is included?
The unit features an advanced LCD button control system for easy adjustment of the power switch, illuminance levels, and color temperature.
