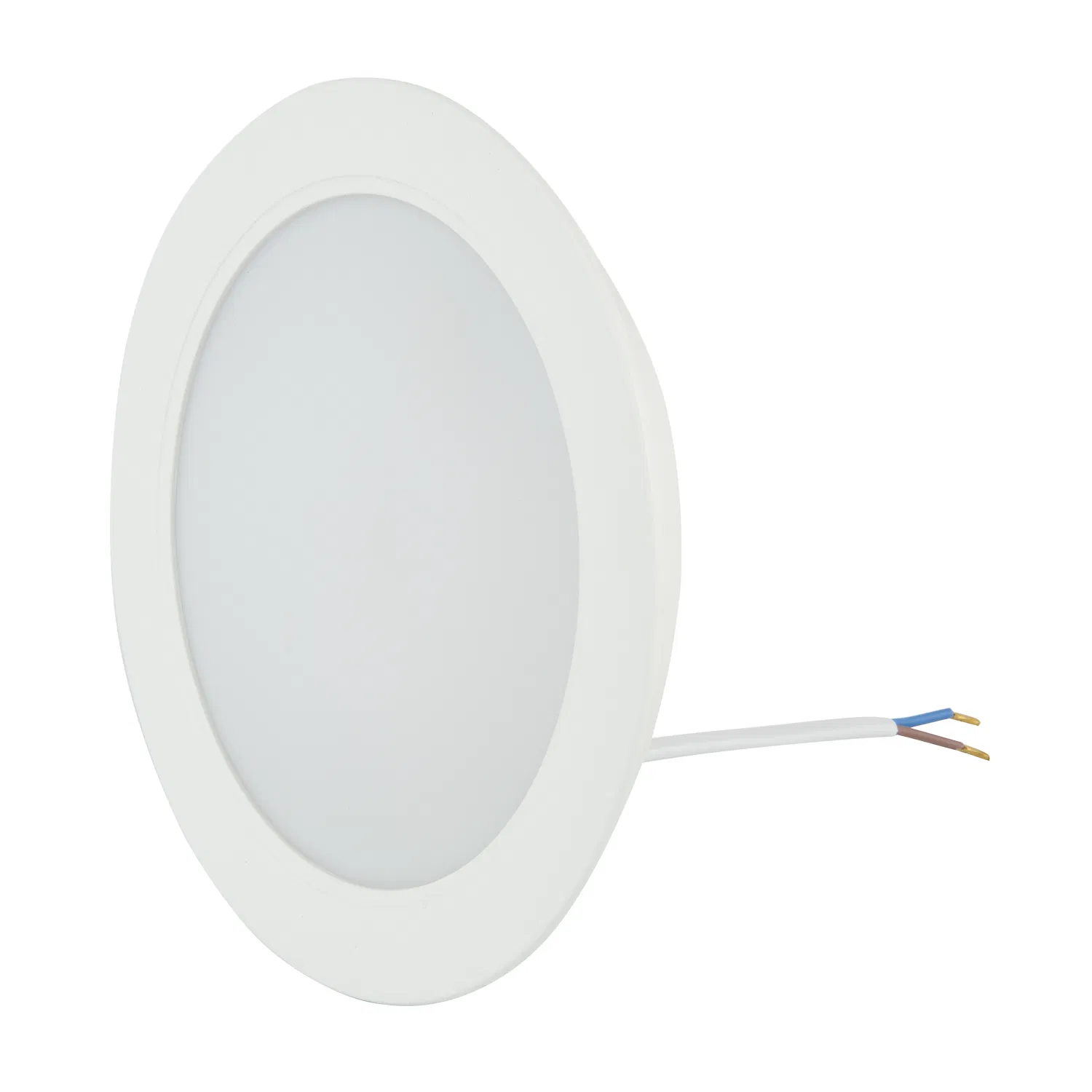

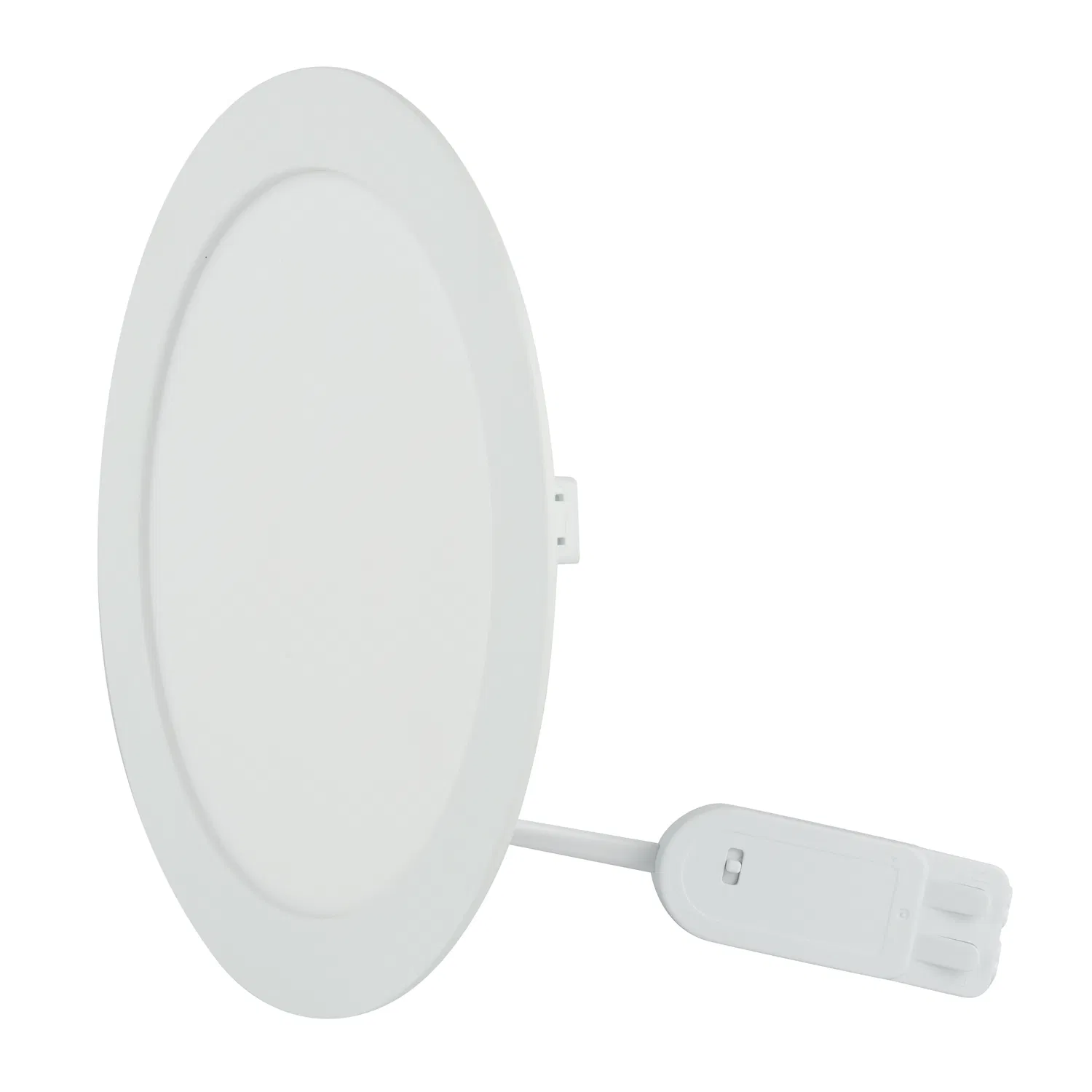

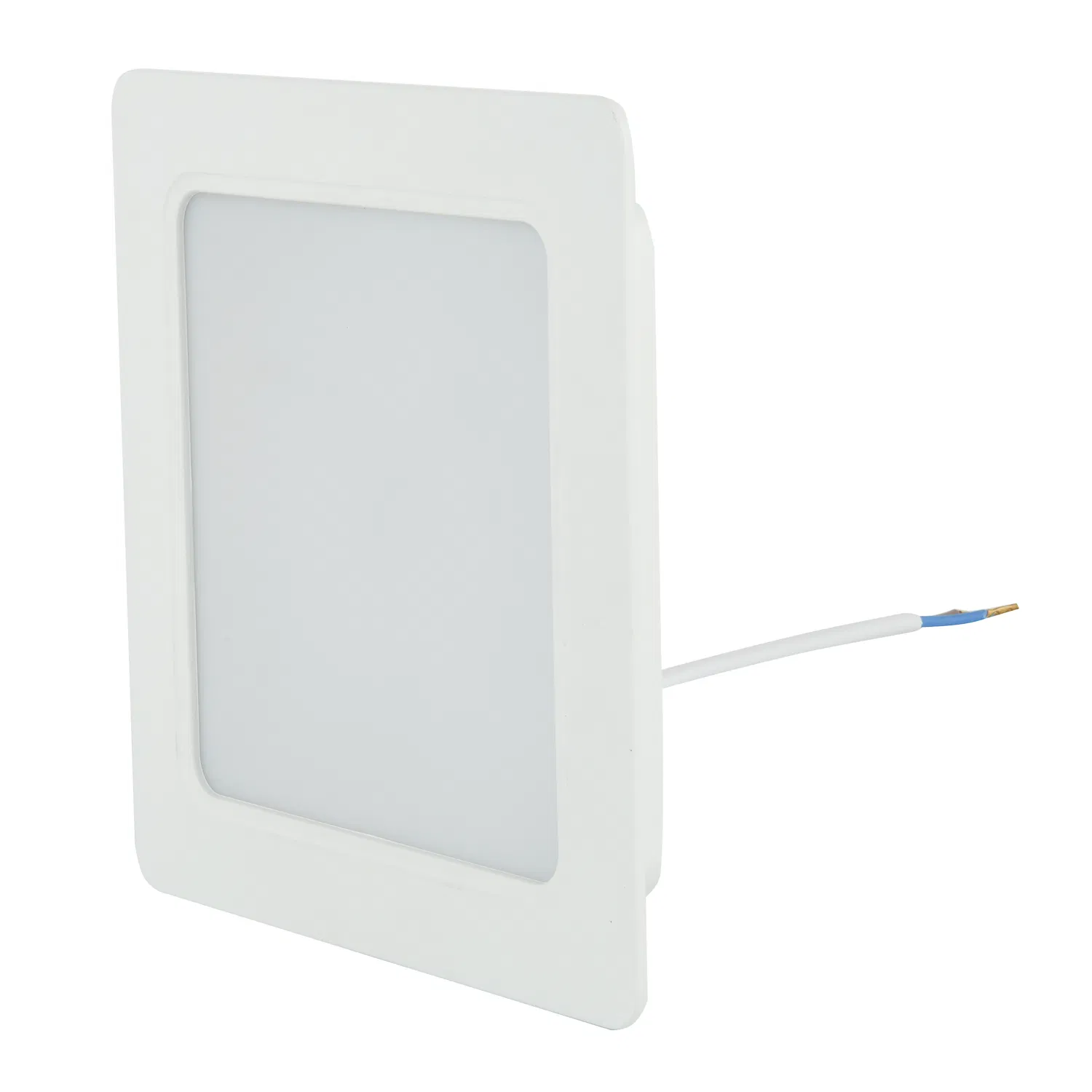

Recessed LED Slim Panel (Downlight) 3CCT by DIP 3000K/4000K/6500K IP20/IP54

1 / 5

Recessed LED Slim Panel (Downlight) 3CCT by DIP 3000K/4000K/6500K IP20/IP54

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

Recessed LED Slim Panel(Downlight)

Power

6-30W

Color Temperature

3000K/4000K/6500K

Lamp Body Material

Source Number

SMD 2835

Installation

Recessed

Switch Type

With/Without Switch Box

Warranty

2 Years

Application

Engineering, Home Furnishing

IP Rating

IP20/IP54

Certification

CE, GOST, RoHS

Production Capacity

2,000,000 PCS/Year

💡

Product Description

Side light or Backlit design
3CCT by DIP / Single CCT options

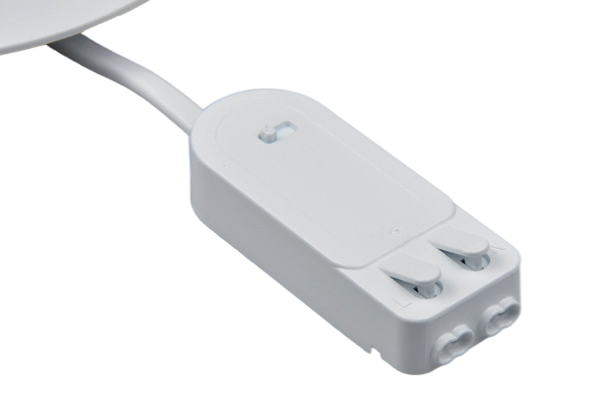

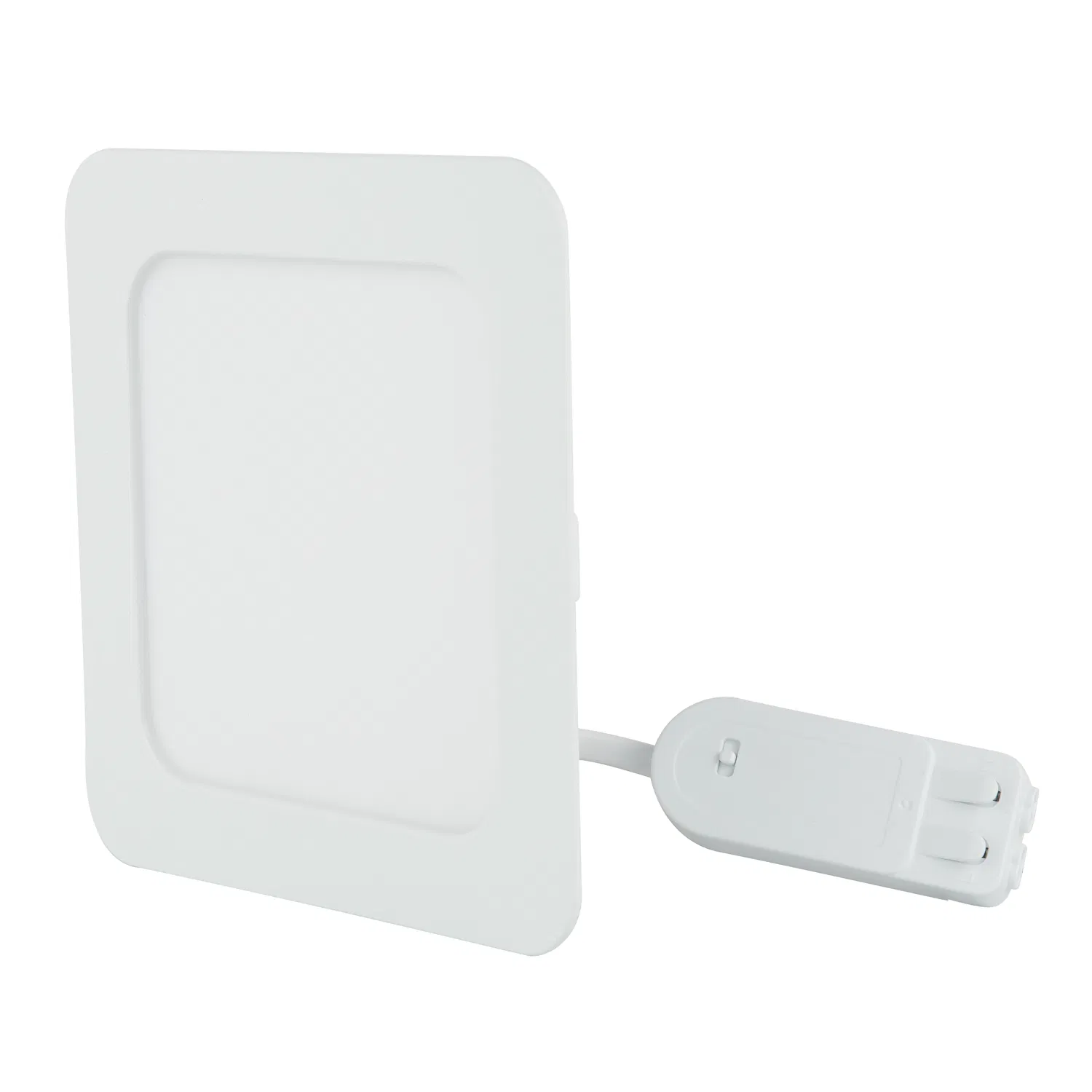

Optional Switch Box configuration
Material: High-quality PC
Voltage: AC 175-250V
LED Chip: 2835 SMD
CRI(Ra): ≥80
Beam Angle: 120°±10°
Operating Temperature: -25°C to 40°C
Certification: CE / EMC / LVD / ERP2.0 / CB

Item No.	Watts	Voltage	Lumen	IP Rate	Energy Class	CCT(K)	Material	Ra	DF	Dimension (mm)

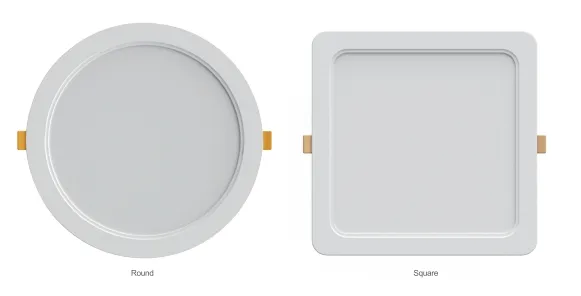

Recessed Round Models
SF-Slim Panel	6W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.5	φ128×H14.8
SF-Slim Panel	9W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.5	φ145×H15.8
SF-Slim Panel	12W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.7	φ170×H15.8
SF-Slim Panel	18W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.7	φ225×H16.1
SF-Slim Panel	24W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.7	φ300×H16.3
Recessed Square Models
SF-Slim Panel	6W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.5	120x120x14.8
SF-Slim Panel	12W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.7	170x170x15.8
SF-Slim Panel	24W	175-250V	85-100lm/w	IP20/IP54	F	3000K-6500K	PC	80	>0.7	300x300x16.3

❓

Frequently Asked Questions

What is the "3CCT by DIP" feature?

It allows you to adjust the color temperature between 3000K (Warm White), 4000K (Natural White), and 6500K (Cool White) using a simple DIP switch on the light.

Is this LED panel suitable for humid environments?

Yes, we offer models with an IP54 rating, which provides protection against dust and splashing water, making them suitable for certain humid areas.

What is the warranty period for this product?

This Recessed LED Slim Panel comes with a standard 2-year warranty for your peace of mind.

Can these lights be installed in residential homes?

Absolutely. These panels are designed for both engineering projects and home furnishing applications due to their sleek, recessed design.

What material is used for the lamp body?

The lamp body is constructed from high-quality PC (Polycarbonate), which is durable, lightweight, and ensures excellent light distribution.

Does it support different voltage standards?

The standard operating voltage for these panels is AC 175-250V, which is compatible with most international power grids in that range.
