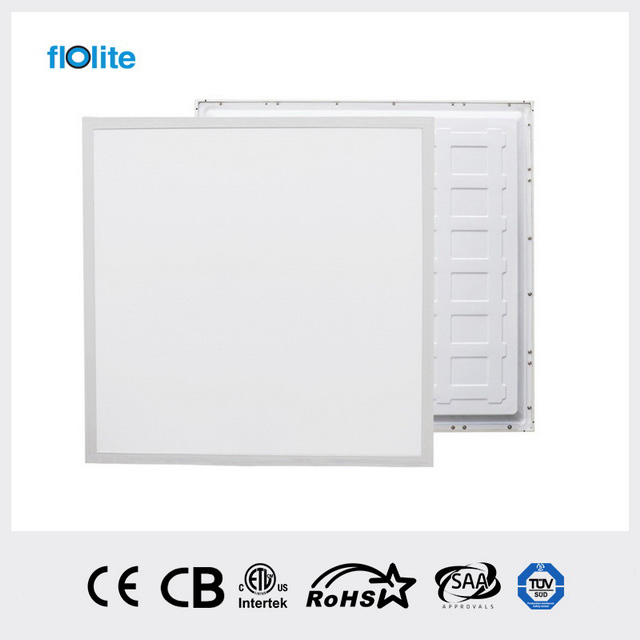

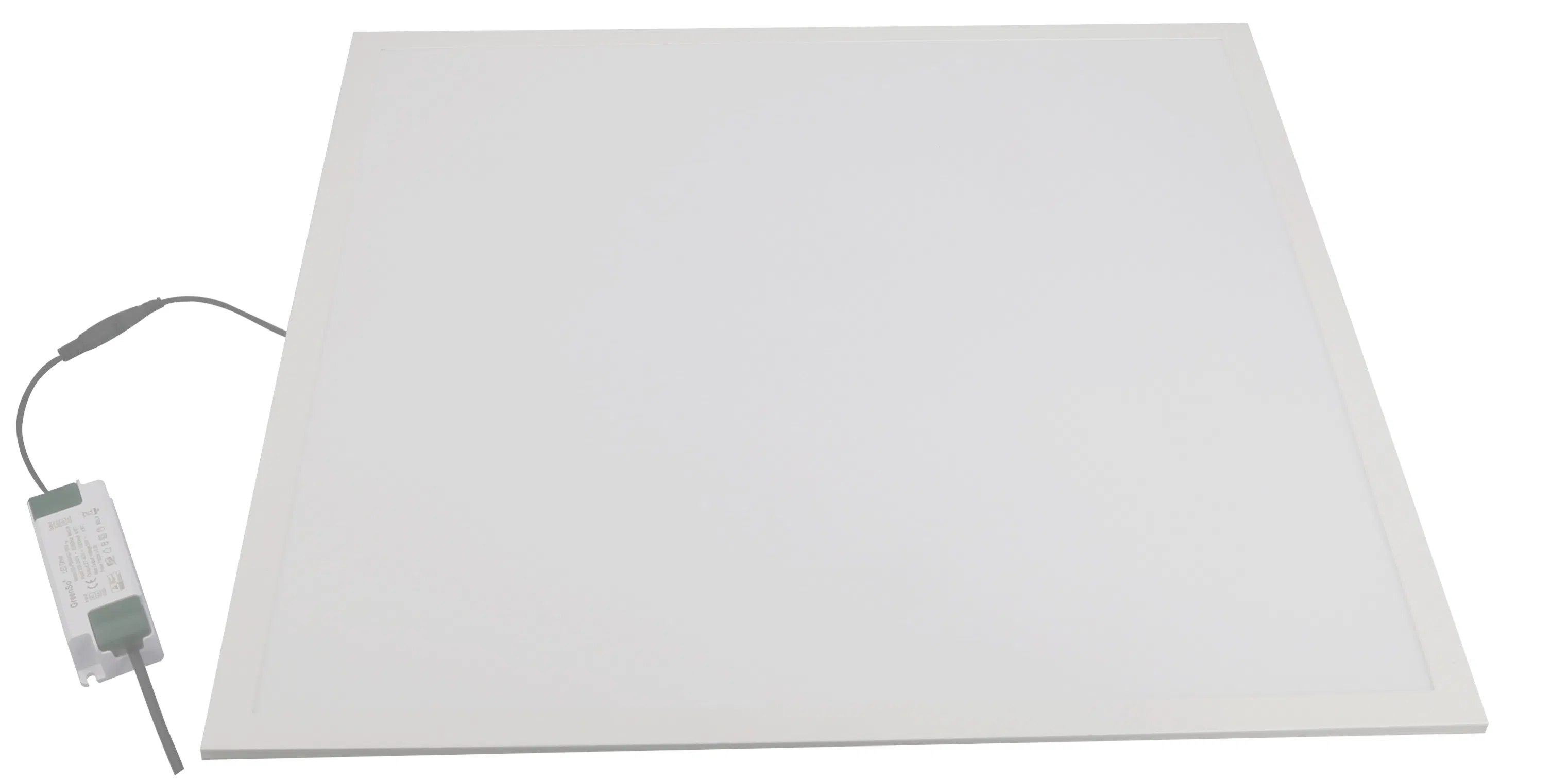

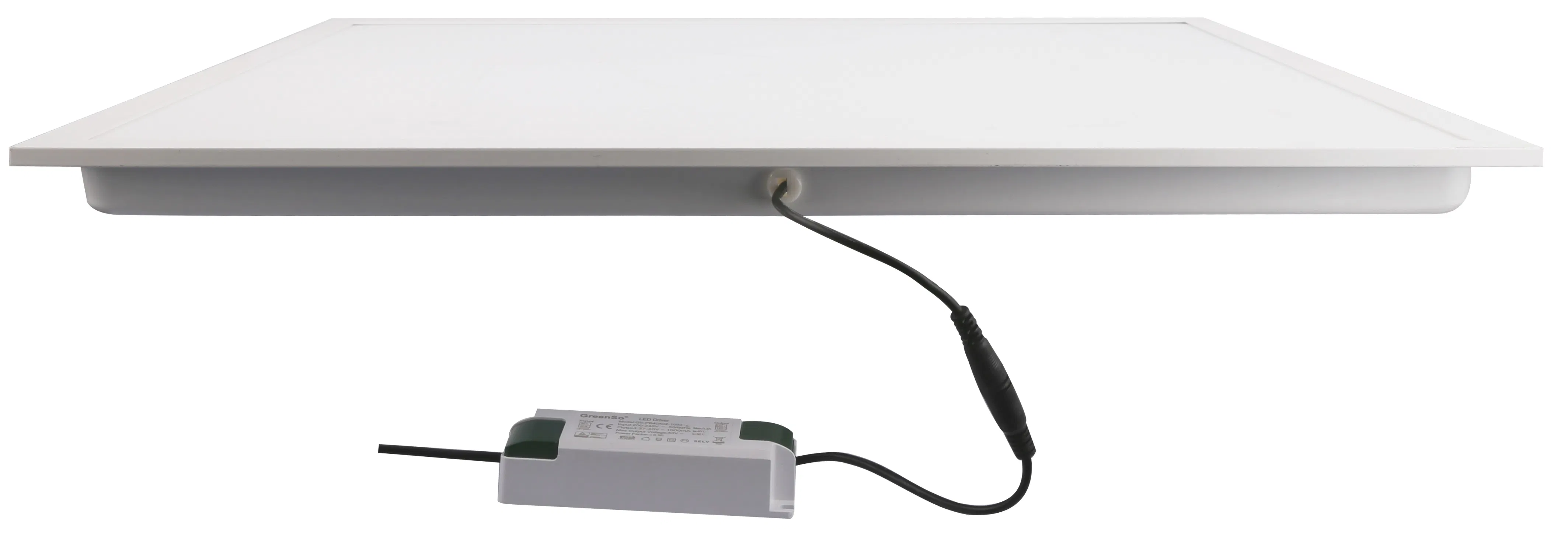

TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
1 / 5
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light
TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light

TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.:FT-BLS66-W40
Emitting Color:2700-6500K
Dimmable:Without Dimmable
Appearance:Square
Type:Recessed
Certification:CE, RoHS, SAA, CB, TUV
Voltage:100-240V
Beam Angle:120°
Power Factor:>0.9
CRI:>80
Warranty:5 Years
Flicker Free:Yes
Specification:595*595mm
Origin:China

Product Overview

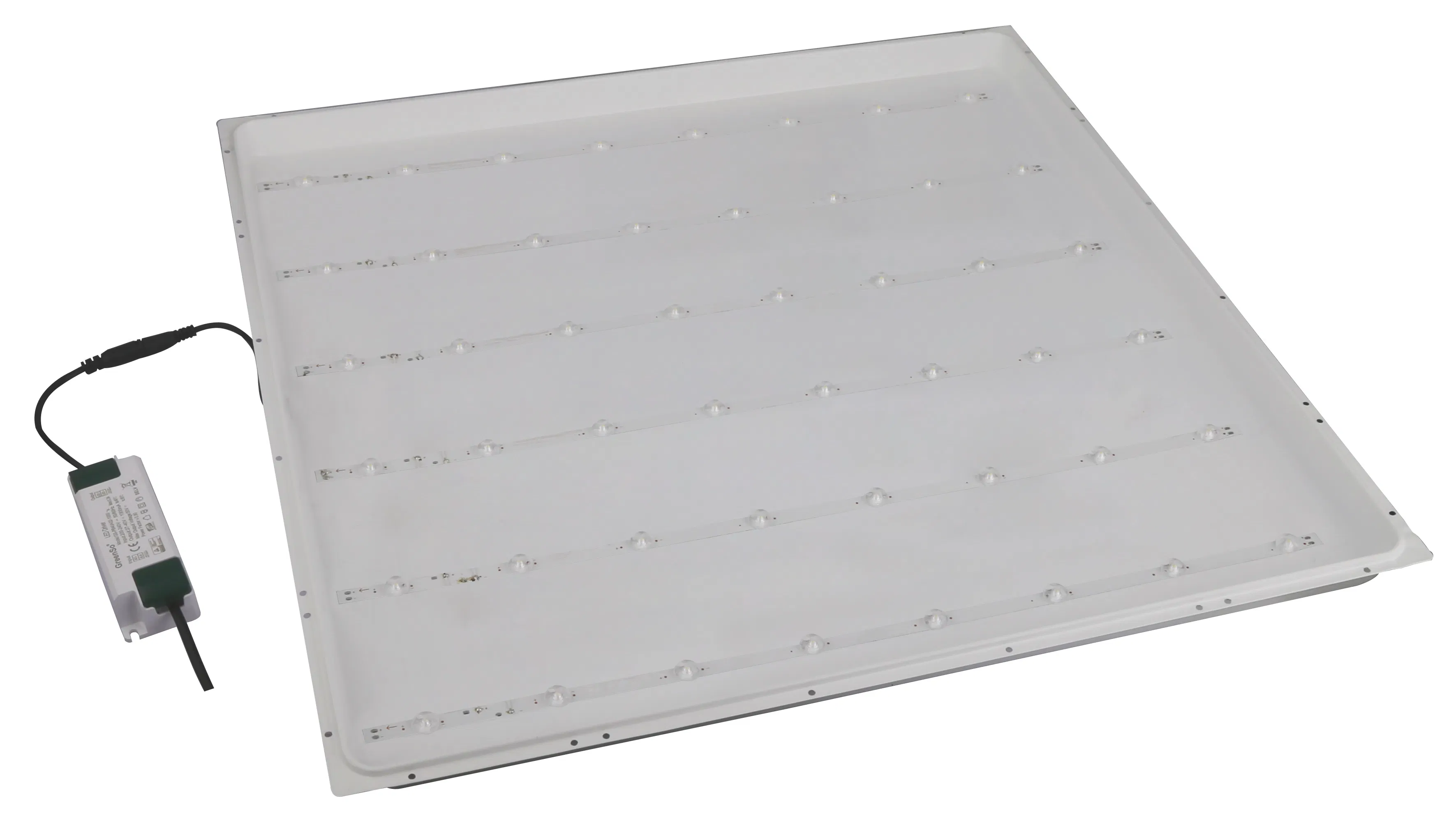

LED Backlit Panel Light with TUV/CE/CB/SAA Approval.

Product NameBacklight LED Panel light
Model NoFT-BLS66-W40
CertificateTUV, CE, CB, RoHs, ERP, LM80, LM79, TM21, ISTMT

1. Product Features

  • High efficiency & energy saving (saves >67% energy vs traditional lamps).
  • Wide input voltage (200-240V) and Flicker free.
  • Long life span over 50,000 hours using high-quality semiconductor chips.
  • No UV & IR radiation, eco-friendly (No Hg & Xe).
  • High-performance external constant current driver.
  • Flat and smooth frame, easy to clean and maintain.

Product Display

LED Backlit Panel Light 1

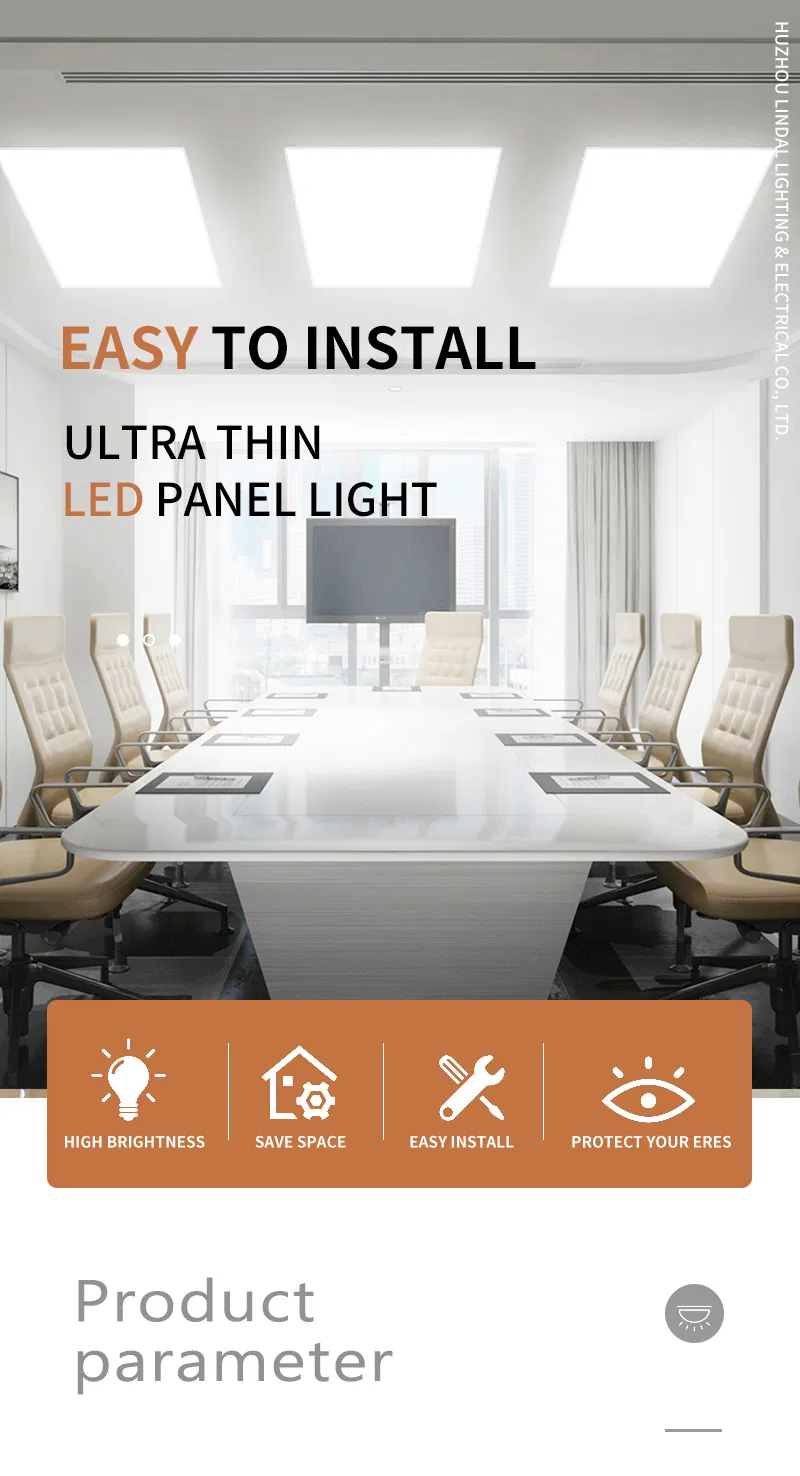

LED Backlit Panel Light 2

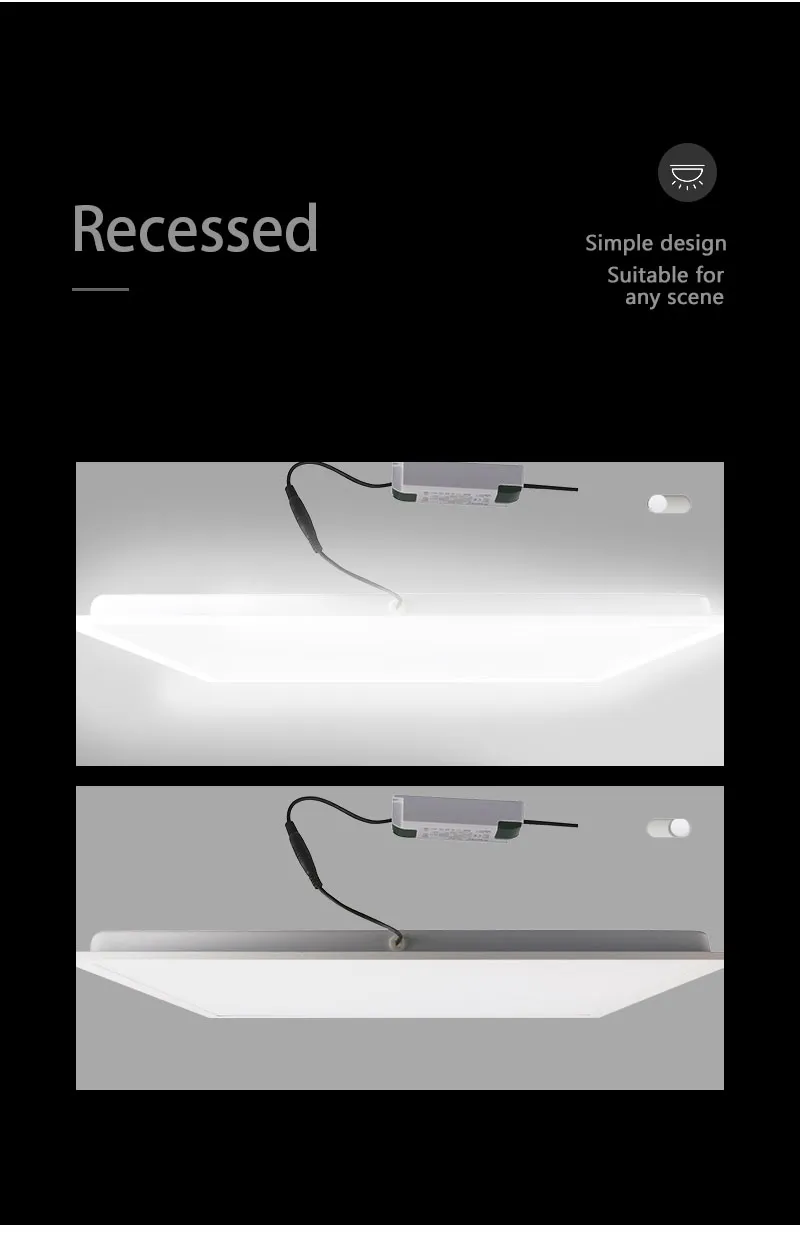

LED Backlit Panel Light 3

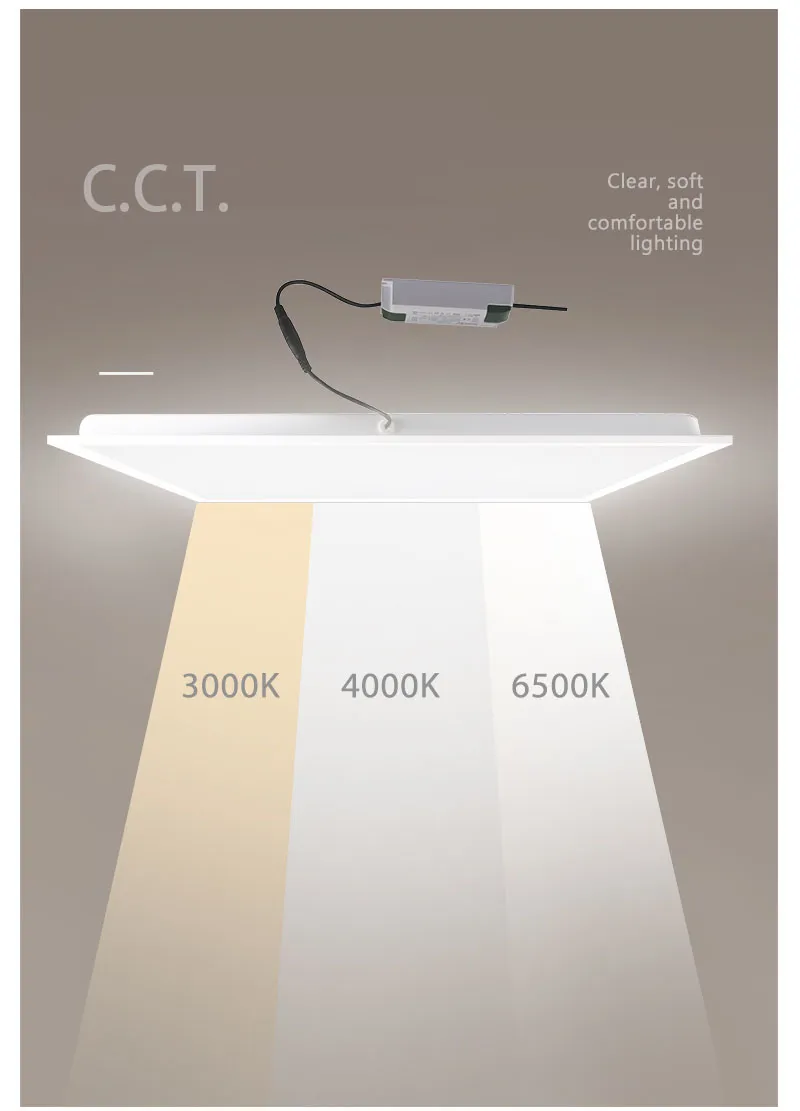

LED Backlit Panel Light 4
LED Backlit Panel Light 5

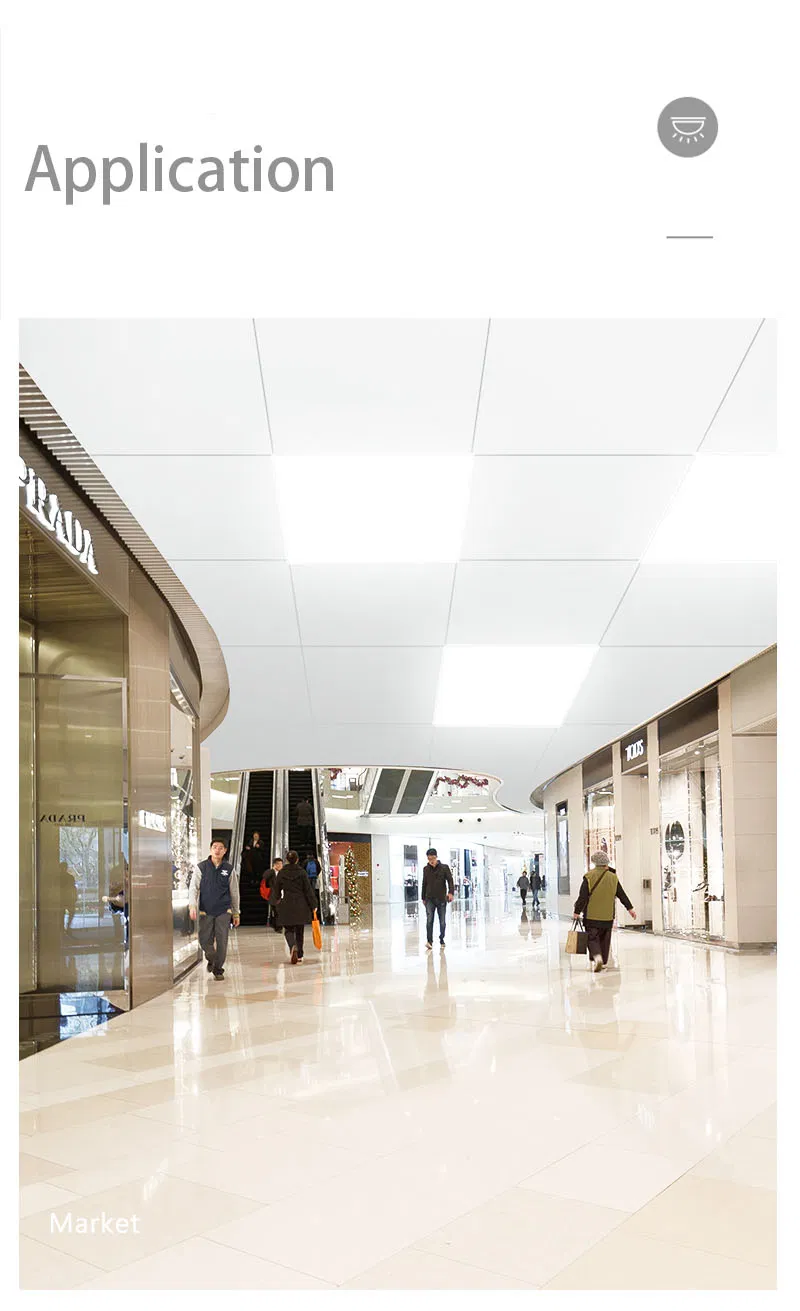

LED Backlit Panel Light 6

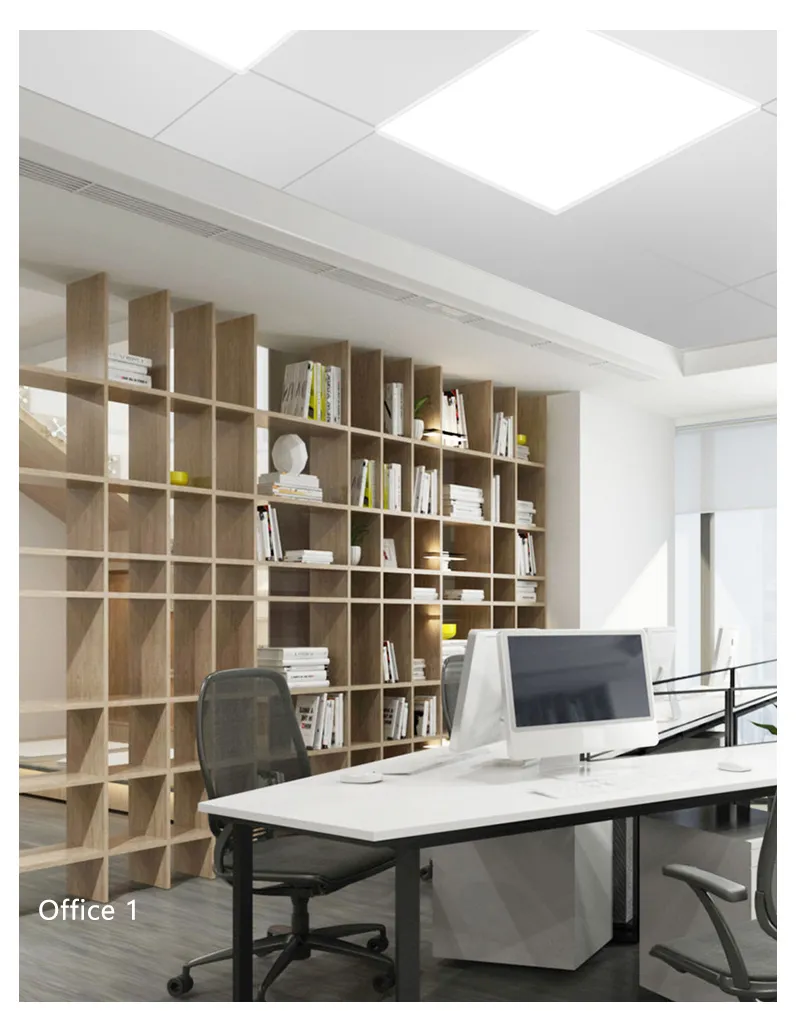

LED Backlit Panel Light 7

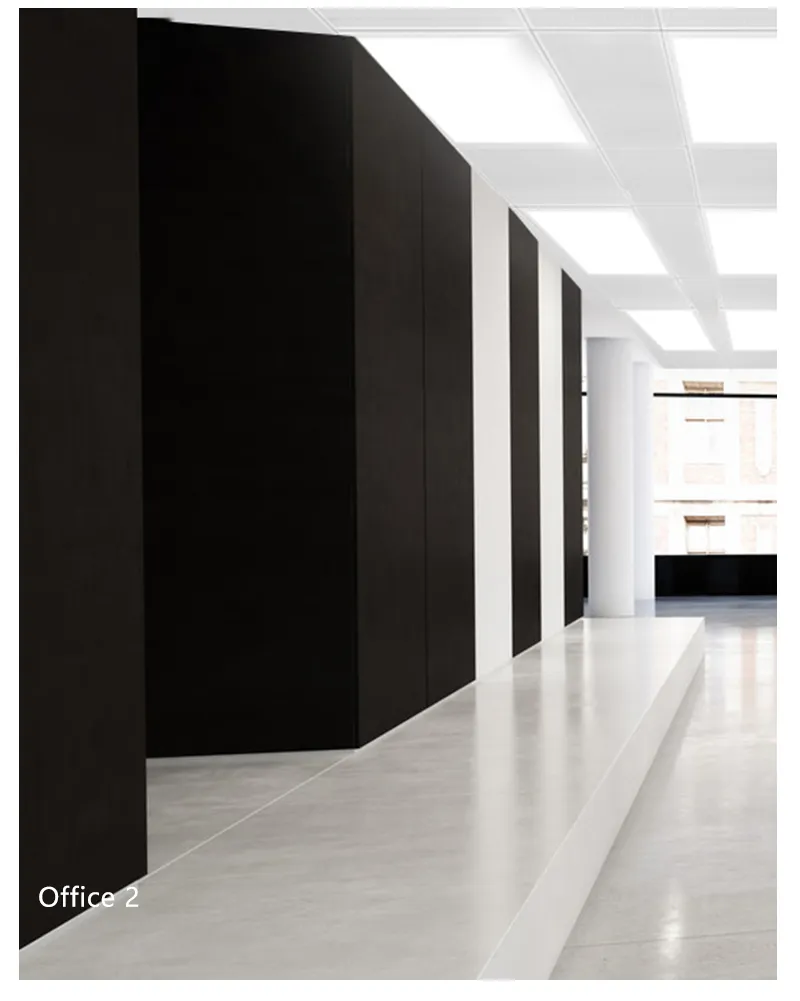

LED Backlit Panel Light 8
LED Backlit Panel Light 9

Technical Parameters

Power Parameters

Power40W
Input Voltage/FrequencyAC200-240V 50/60Hz
Input Current (Max)0.3A
Output VoltageDC27-40V
Output Current1000mA
Power FactorPF>0.9

Lighting Parameters

Lumen>4000LM
LED TypeSMD 2835 (San'an Chips)
Color Temperature3000/4000/6000K
Color Rendering IndexRa≥80
Operating Temperature-20~+40 ºC
IP GradeIP40
Energy EfficiencyA+

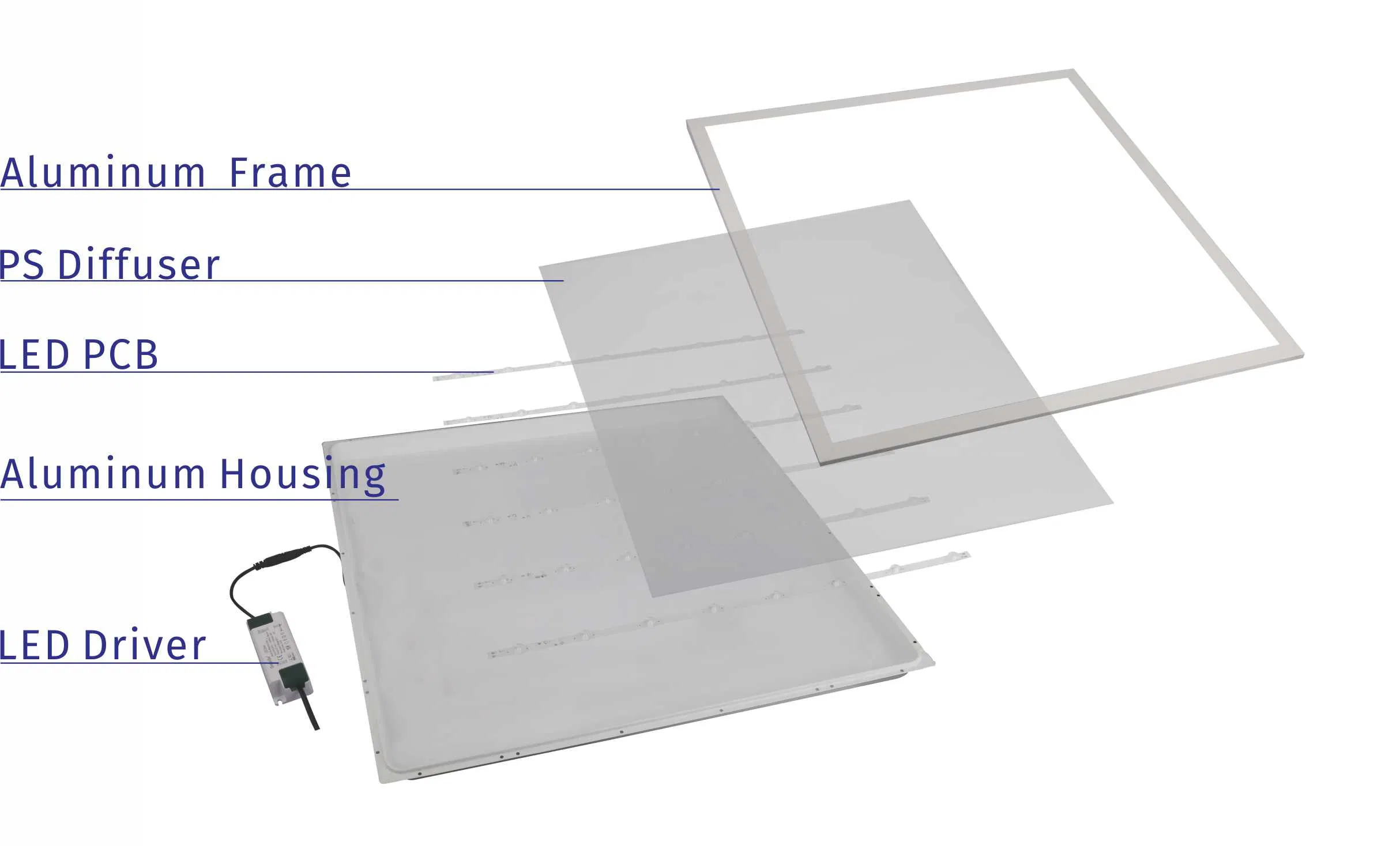

Frame MaterialsPS + Aluminum

Dimensions & Installation

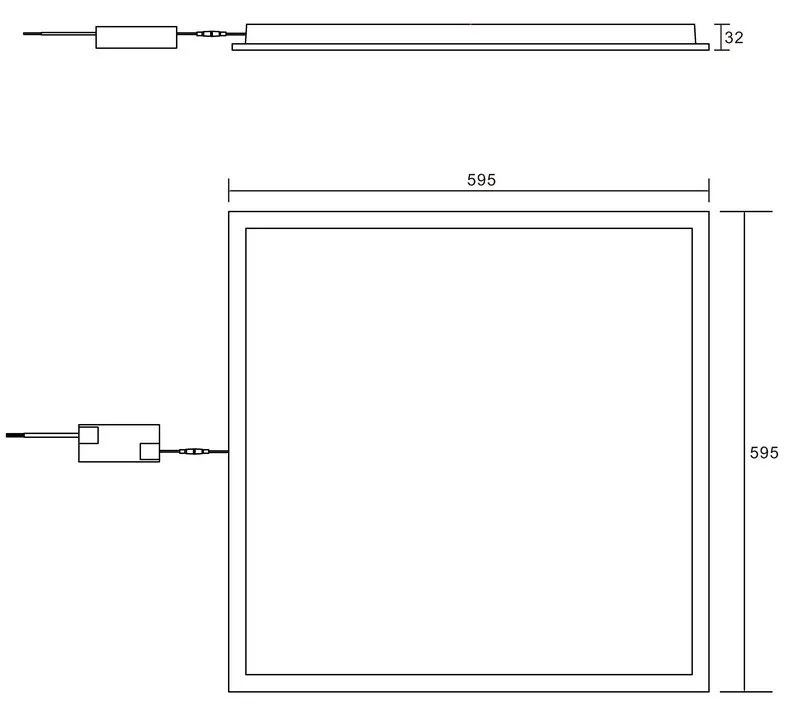

Dimensions

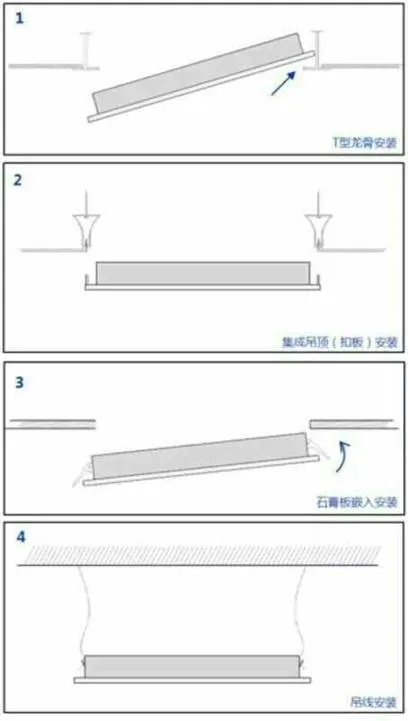

Installation Guide

Installation Notes: Please ask a professional electrician for installation. Cable wiring: Brown (Live), Blue (Neutral), Yellow (Earth). Ensure power is off before starting.

Attention & Warranty

Attention: Indoor use only. Product features over-temperature control circuitry; if temperature is too high, it will automatically cut off for a few minutes and resume once cooled.

5 Years Warranty: Valid under proper storage, installation, and maintenance. During the warranty period, we provide repair or replacement based on detail information.

Frequently Asked Questions

Q1: What is the main advantage of the backlit LED panel compared to edge-lit? Backlit technology provides higher luminous efficiency and better heat dissipation, ensuring a longer lifespan and more uniform light distribution across the 595x595mm surface.
Q2: Does this panel light support different color temperatures? Yes, it is available in Warm White (3000K), Natural White (4000K), and Cool White (6000K) to suit various environment needs.
Q3: Is the driver included and is it flicker-free? Yes, a high-performance external constant current driver is included, and the light is certified flicker-free, which is better for eye comfort in office settings.
Q4: Can this light be installed in a standard office ceiling? Absolutely. It is specifically designed for standard recessed ceiling systems with a grid size of 595x595mm or 600x600mm.
Q5: What are the main certifications for this product? The product is fully certified with TUV, CE, CB, RoHS, and SAA, meeting strict international safety and quality standards.
Q6: How long is the warranty and what does it cover? We offer a 5-year warranty covering manufacturing defects under normal operating conditions. We provide repair or replacement parts during this period.
