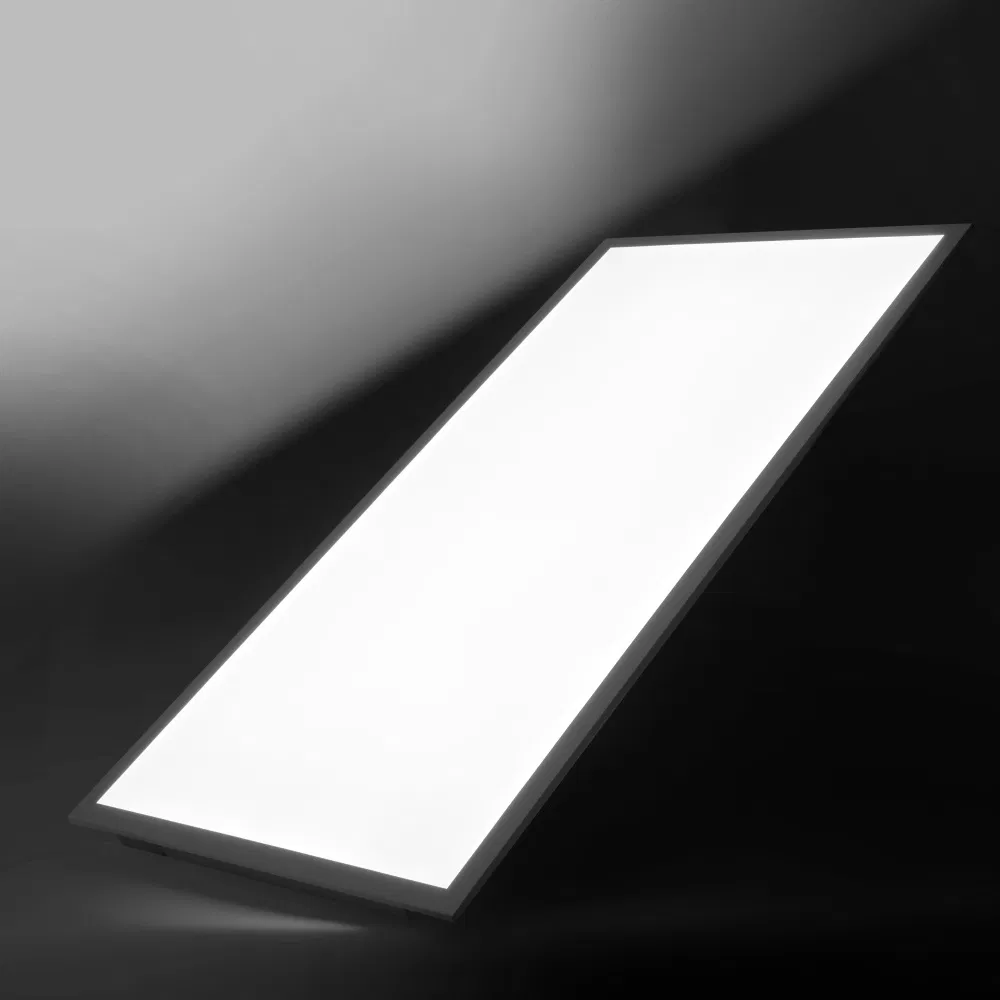

UL Dlc Ultra Slim 2X4FT Backlit LED Panel Light 30W/40W/50W/60W/72W 0-10V Dimming Backlit LED Panel Light

1 / 5

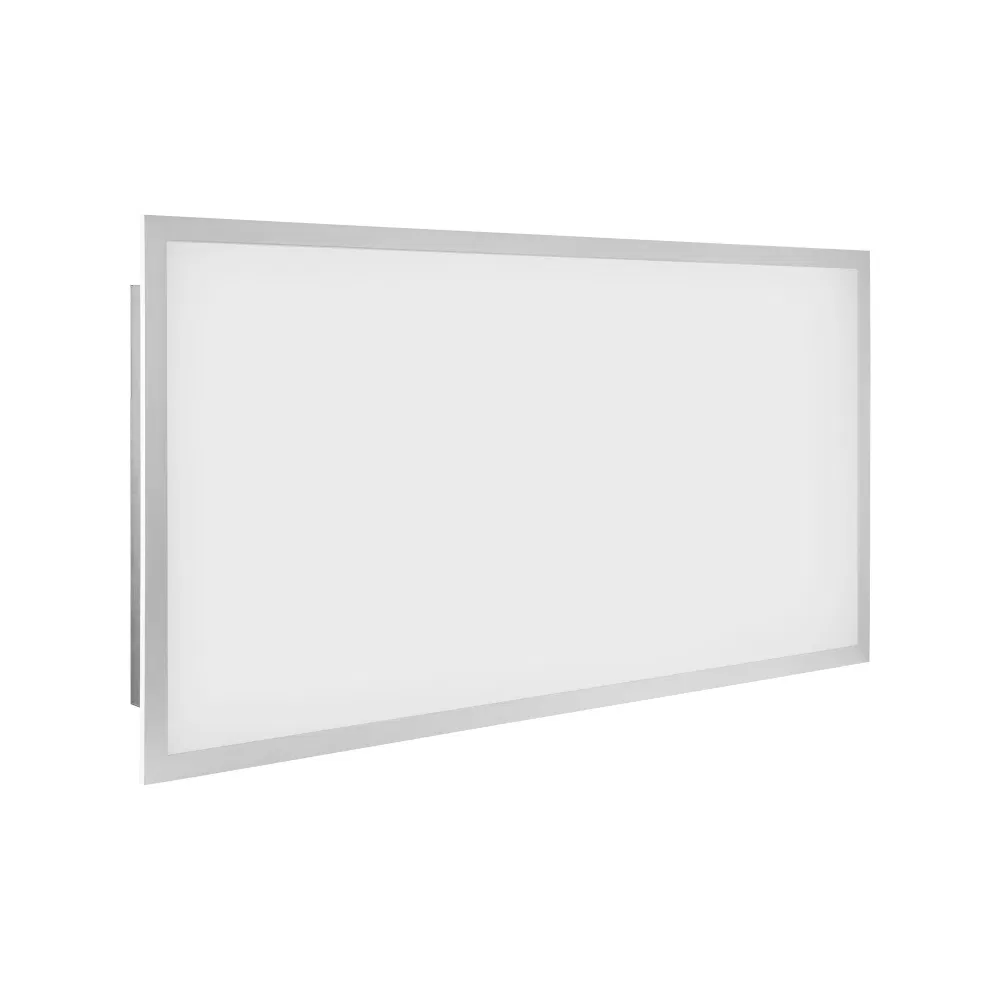

UL Dlc Ultra Slim 2X4FT Backlit LED Panel Light 30W/40W/50W/60W/72W 0-10V Dimming Backlit LED Panel Light

Customization:	Available
Light Source:	LED
Housing Material:	Acrylic, Aluminium

Send Inquiry

Product Description

Basic Specifications

Model NO.

30W/40W/50W/60W/72w

Emitting Color

White

Dimmable

With Dimmable

Appearance

Square

Type

Ceiling

Base Material

Plastic

Certification

CE, RoHS, SAA, ETL, FCC

Voltage

120V / 100-277V

Beam Angle

120°

LED Type

SMD 2835

Luminous Flux

125lm/W

Color Temp

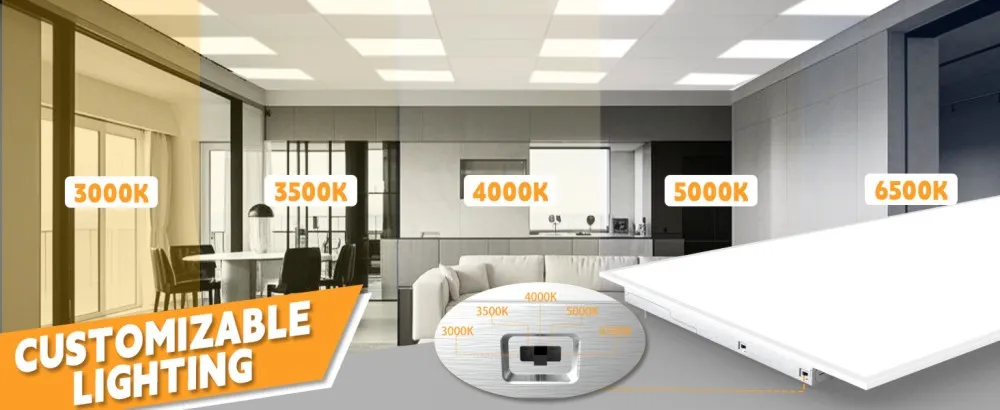

3000K, 4000K, 5000K, 6000K

IP Rating

IP40

HS Code

9405409000

Product Description

UL Dlc Ultra Slim 2X4FT Backlit LED Panel Light 30W/40W/50W/60W/72W 0-10V Dimming

The design is ideal for using in ceiling fixtures. It features world-class LED technology making it super bright for commercial and residential applications.

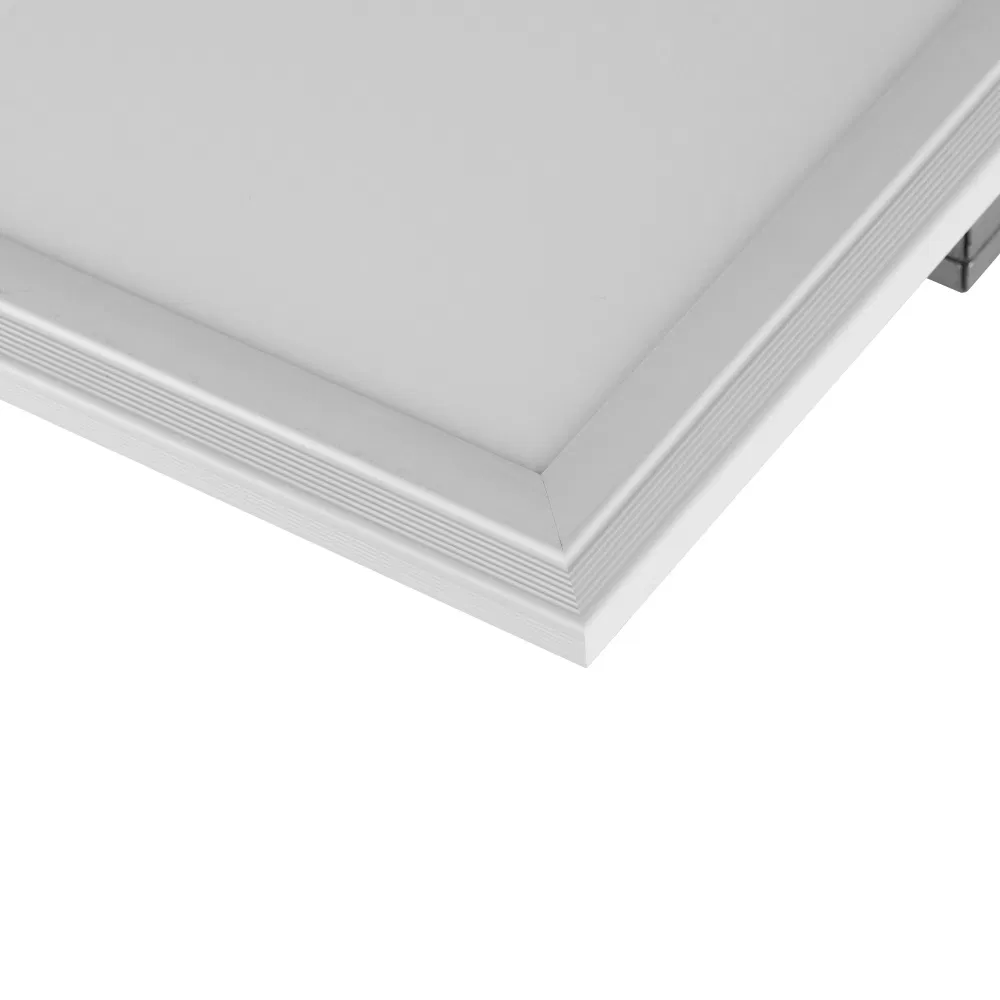

Higher power and light uniformity with reinforced frames
Thermoplastic coating for extreme scratch resistance
Quick connect system operates from 100v to 277v
Super easy to install in various environments

Product Advantages

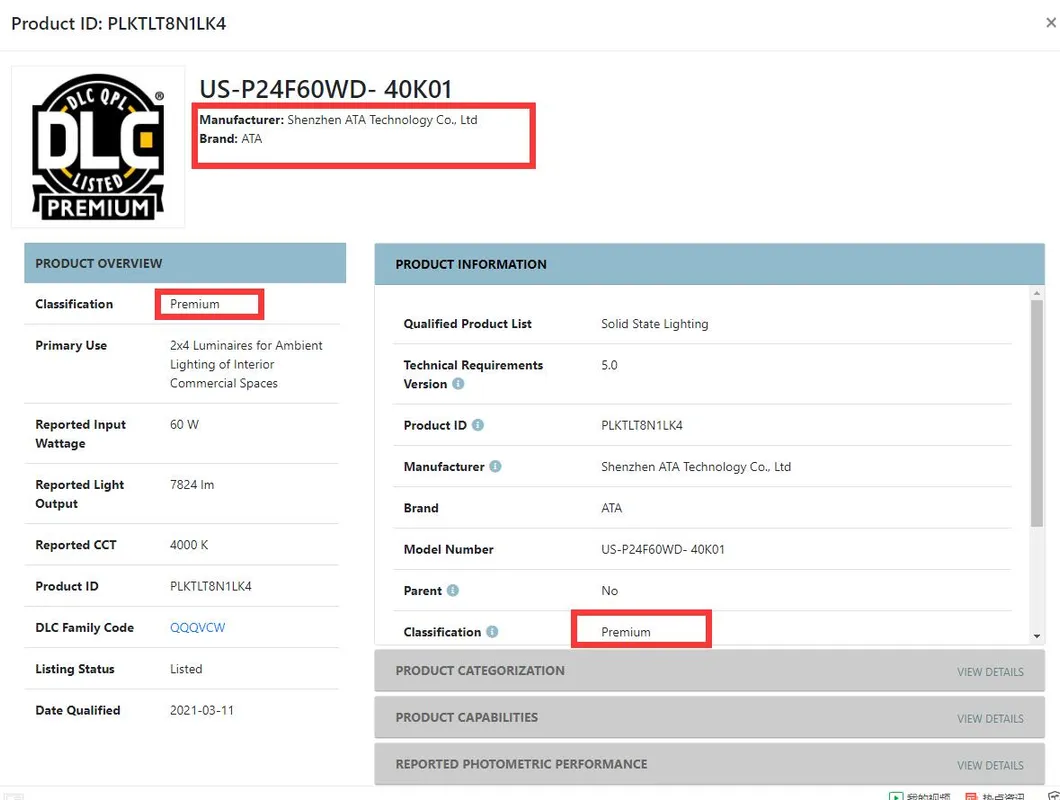

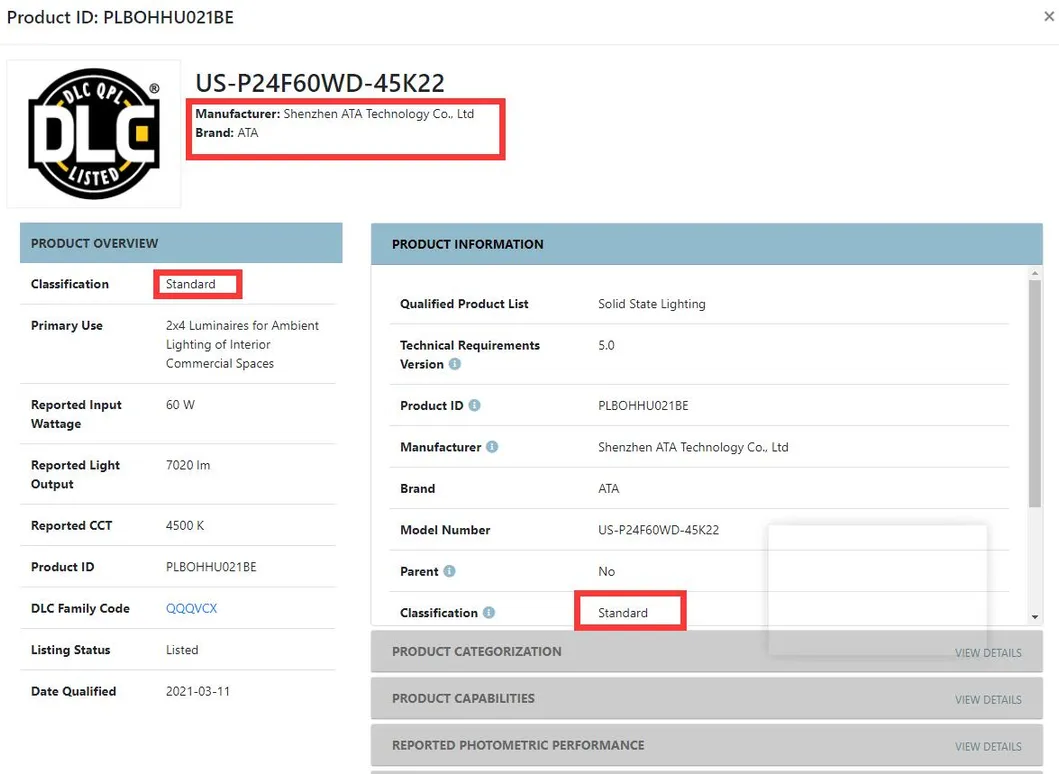

UL cUL DLC 5.0 Certified with 125lm/W efficiency.

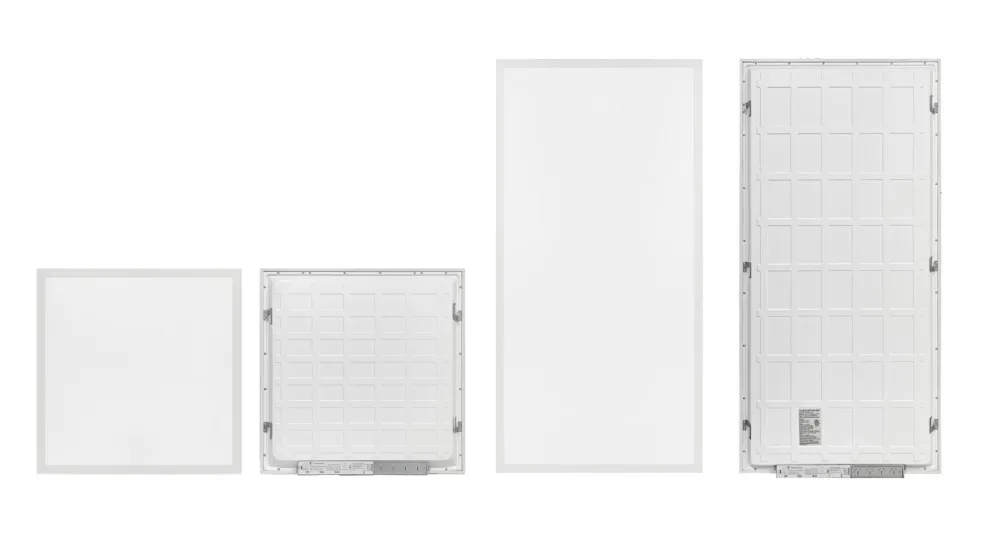

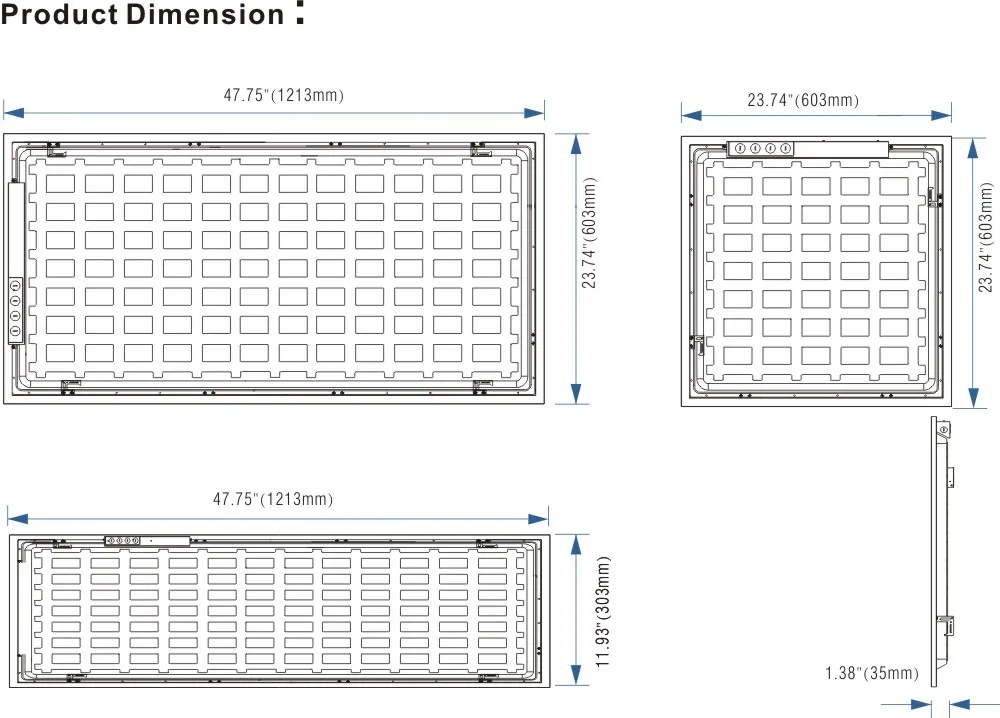

Available in multiple sizes: 2x2ft, 1x4ft, 2x4ft, and 1x1ft (297*297mm).

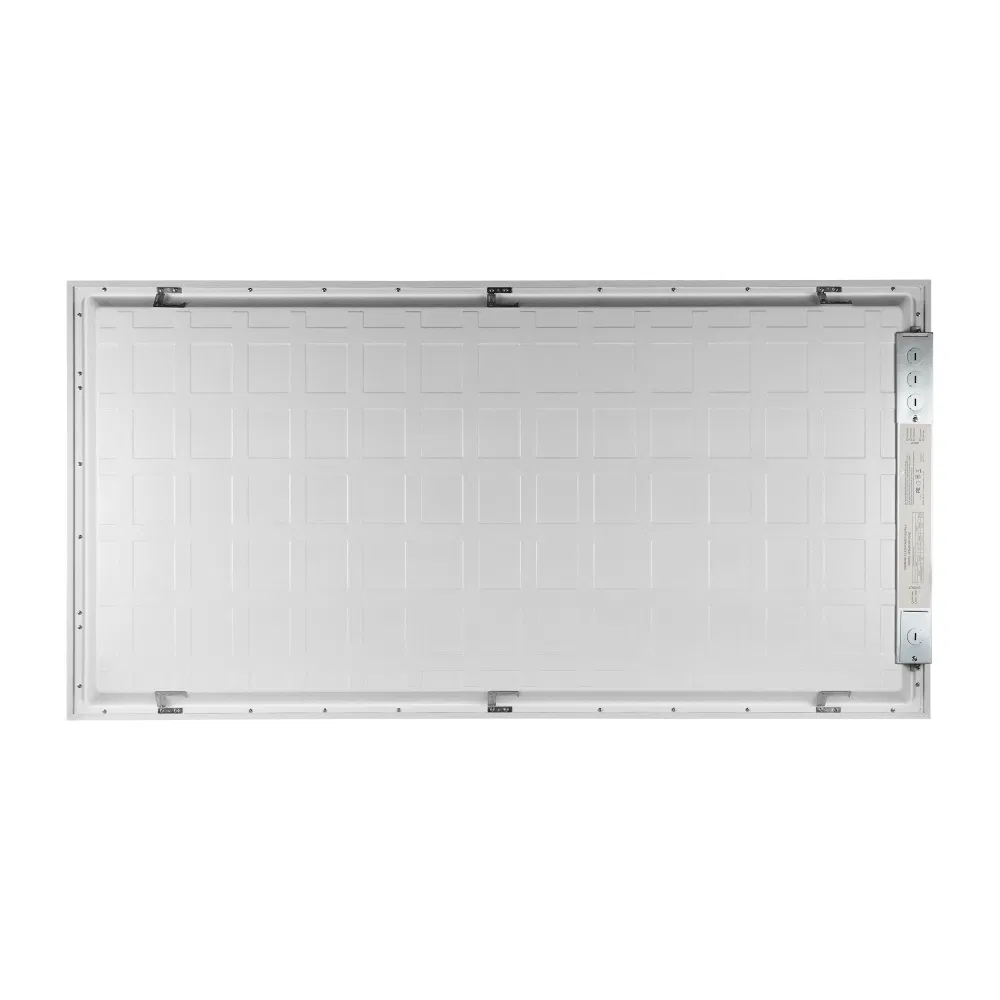

Fire-rated junction box design for safe and easy wiring.
Energy-efficient: lasts 5 times longer than fluorescent panels.

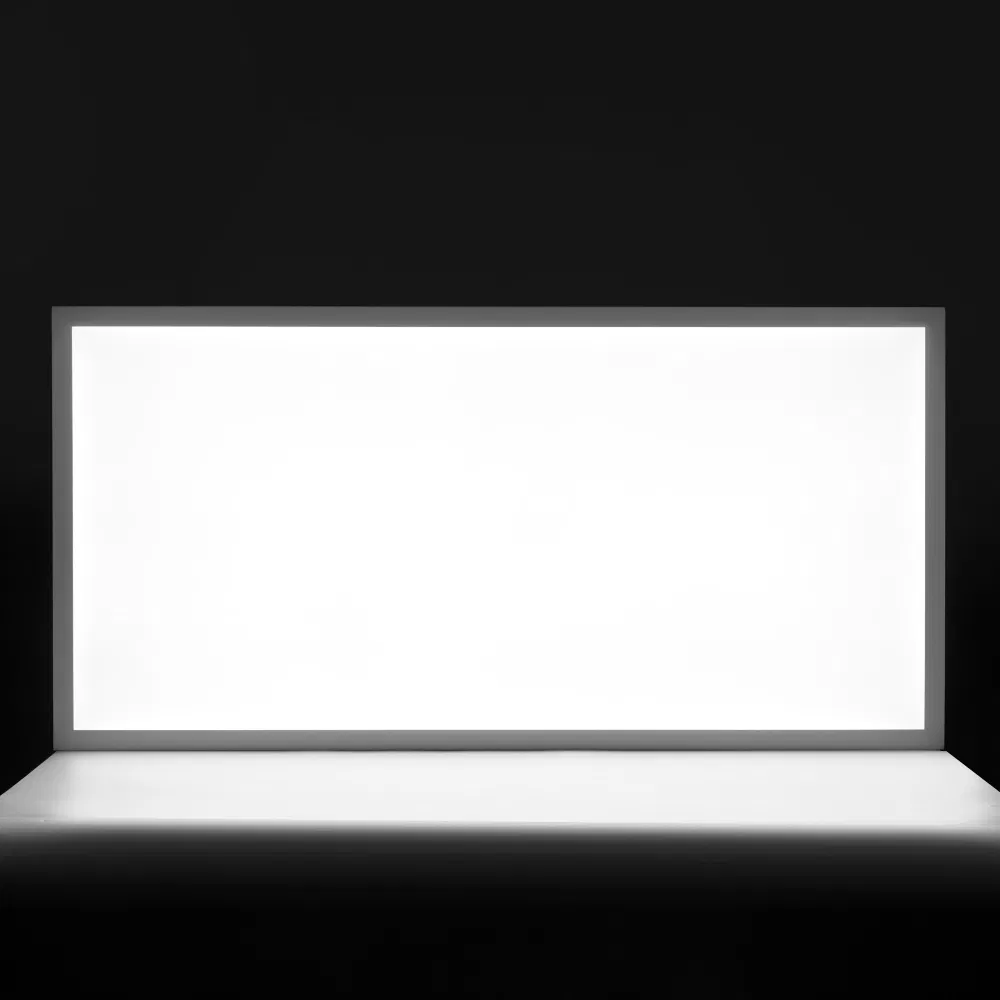

Natural white illumination emitting up to 9,000 lumens.

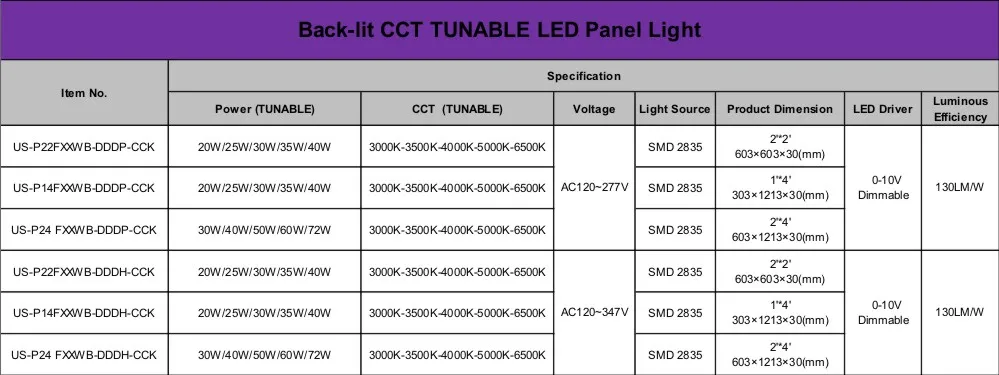

Technical Specifications

Light Source	2835, LM80
High Efficiency	130lm/w
Driver Efficiency	>89%
Parameters	CRI(Ra)>83, PF>0.95, THD<15%, UGR<19
Working Voltage	AC100~277V / 347V
Material	AL+PMMA Diffuser
Installation	Embedded, Suspending, Roof mount, Latch catches
Warranty	5 Years

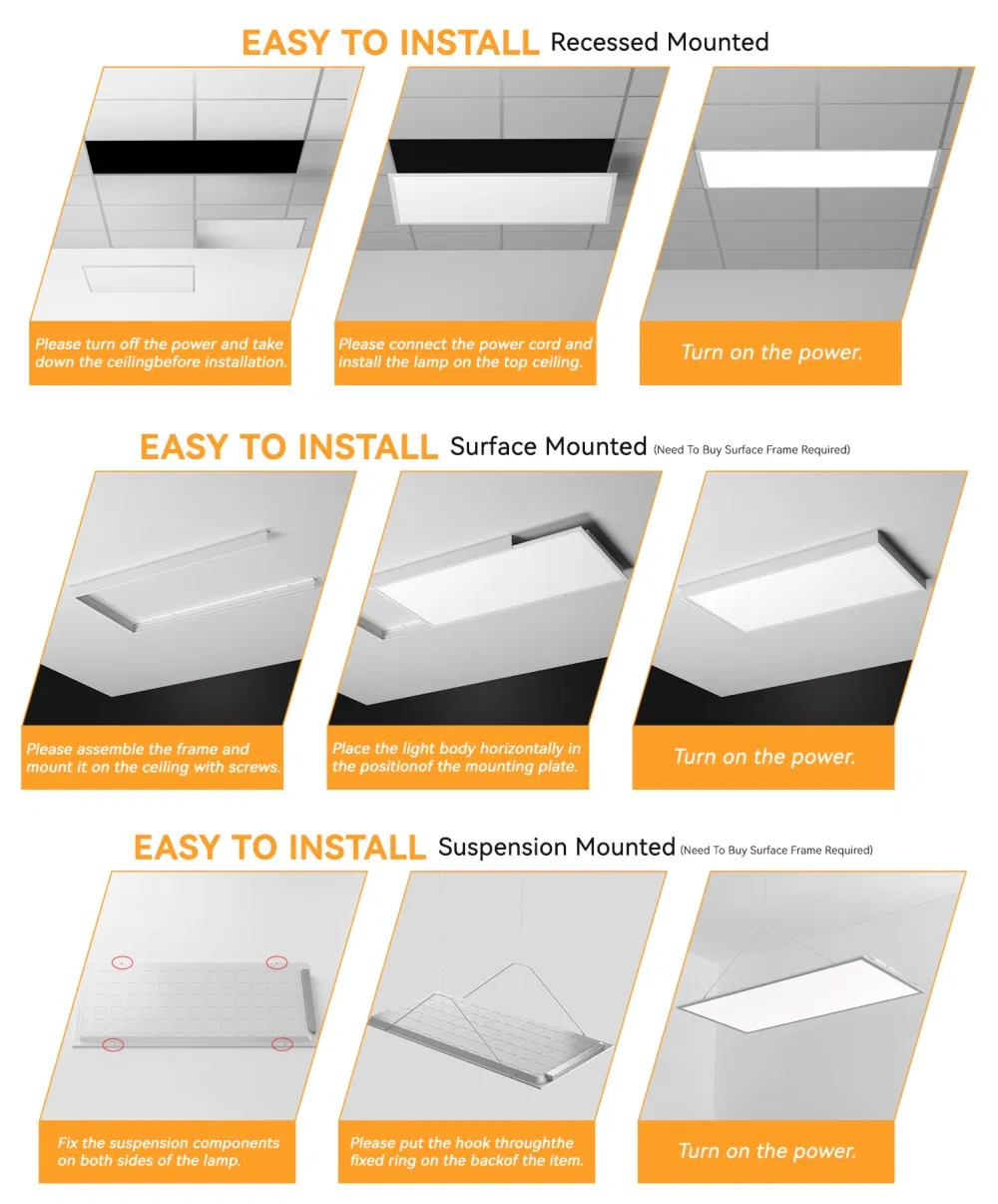

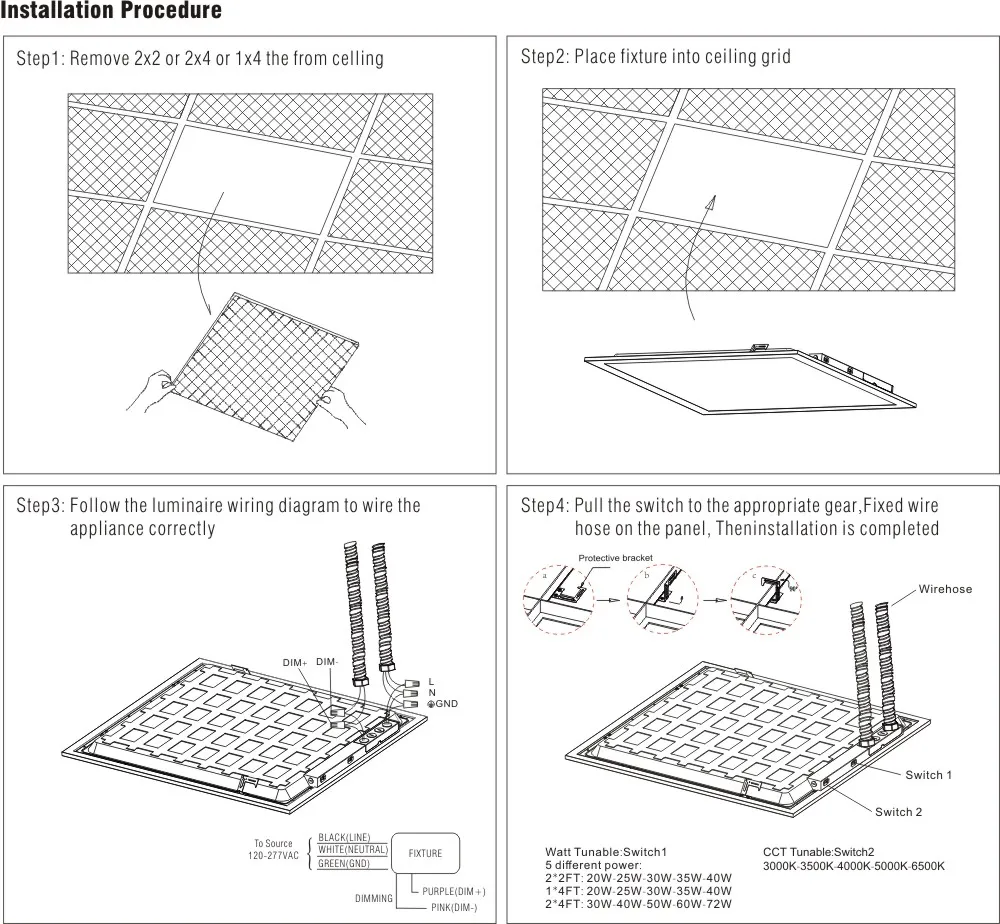

Installation Methods

Embedded without accessories
Suspending with wire rope
Surface mounting fixture with frame
Earthquake proof with hook

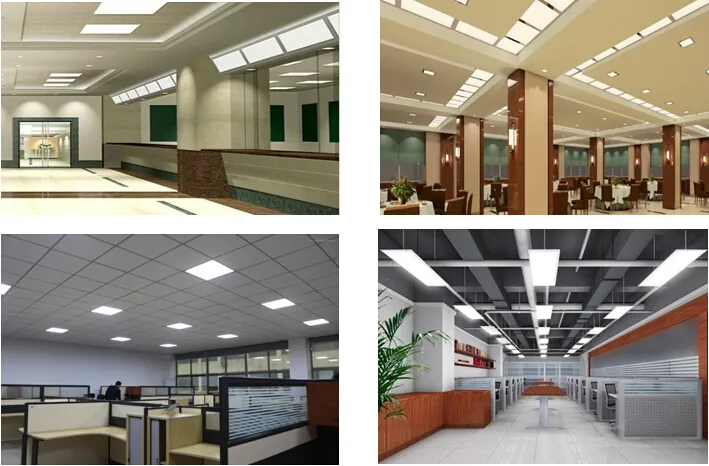

Applications

Perfect for commercial, residential, and decorative applications including offices, retail shops, supermarkets, schools, hotels, hospitals, workshops, and high-end villas.

Quality Control & User Manual

Stability TEST: 100% aging test for at least 48 hours.

Lighting TEST: 100% functionality test before packing.

Drop TEST: Ensuring every light is protected by high-quality packaging.

Note: Installation must be performed by an electrical expert in accordance with valid directives.

Frequently Asked Questions

What dimming protocols are supported by these LED panels?

These panels support 0-10V dimming and PWM modes, allowing for smooth brightness adjustment in commercial environments.

Are these lights eligible for energy efficiency rebates?

Yes, with DLC 5.2 certification and a high luminous efficacy of up to 125-130lm/W, these lights often qualify for government energy-saving rebates.

How long is the expected lifespan of the LED panel?

These energy-efficient LED panels are designed to last 5 times longer than traditional fluorescent panels, backed by a 5-year warranty.

Can these be installed in a standard drop ceiling?

Absolutely. They are designed for embedded installation in standard ceilings without the need for additional accessories.

What is the advantage of backlit design over side-lit?

Backlit LED panels generally offer better light uniformity and higher efficiency as the light is projected directly downwards through the diffuser.

Is the light output flicker-free?

Yes, our high-quality drivers ensure stable output with low THD (<15%) and excellent light uniformity for eye comfort.
